Massey Ferguson 1726E vs TYM T3025C | Side-by-side comparison | ITC Resource Center
Compare Tractors

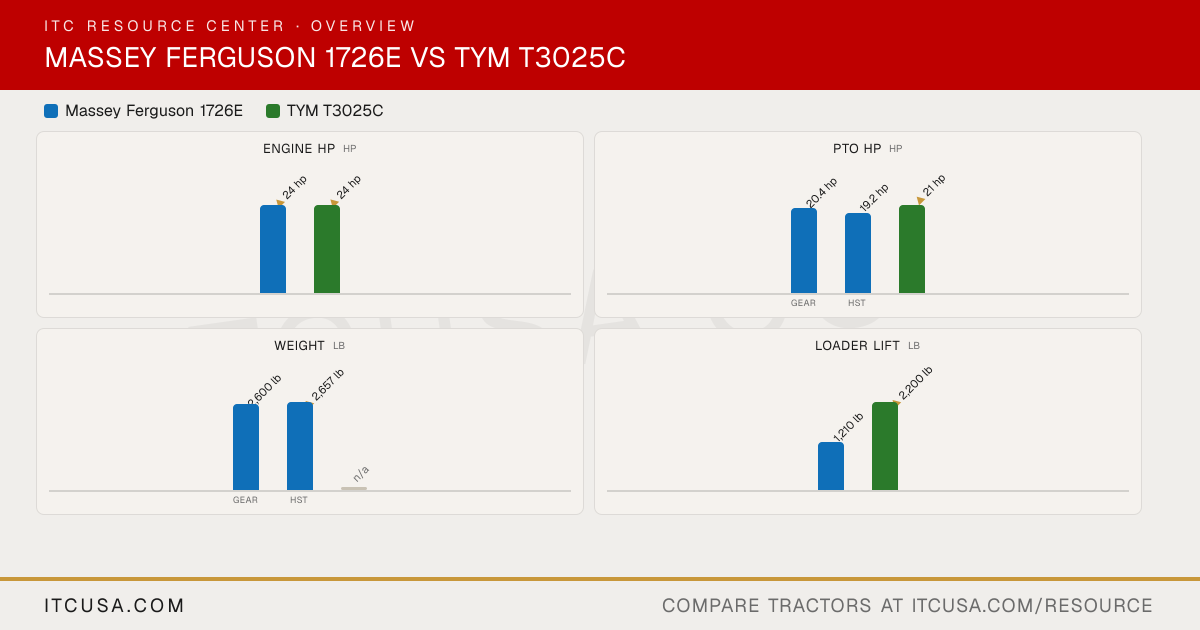

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson1726E
TYMT3025C
Engine Manufacturer
Shibaura
TYM
Engine Model
Not Published
n/a
Engine Type
3-cylinder diesel, liquid-cooled
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
91.5 in³
104.6 in³
Rated Engine Speed
2600 rpm
2100 rpm
Engine Power (Gross)
24 hp
24 hp
PTO Power
Gear: 20.4 hp; HST: 19.2 hp
21 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Not Published
Dry element
Fuel System
Indirect low-pressure injection
IDI
Alternator
Not Published
70 A, 12 V
Pump Type
Gear-type pump
Dual gear pump
Implement Flow
Not Published
7.7 gpm
Steering Flow
3.8 gpm
4.2 gpm
Total Hydraulic Flow
10.5 gpm
11.9 gpm
Overall Hydraulic Pump Flow
Not Published
11.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
6.7 gpm
Not Published
No. of Standard Remote Valves
Not Published
Loader: 4; Rear: 0
No. of Optional Remote Valves
Up to 2
Not Published
Fuel Tank Capacity
10.0 gal
7.1 gal
Coolant Capacity
1.32 gal
5.3 qt
Crankcase Capacity
1.22 gal
4.5 qt
Transmission / Hydraulic System Capacity
10.04 gal
9.8 gal
Front Axle Fluid Capacity
1.48 gal
6.8 qt
PTO Type
Transmission driven
Independent
PTO Rear
540 rpm (1-3/8 in 6-spline)
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2,205 lb
3,306 lb
Hitch Lift Capacity (at 24”)
1,600 lb
2,425 lb
Lift Control Type
Not Published
Position control
Transmission Type
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
Hydrostatic (HST)
No. of Speeds
Gear: 9F / 3R; HST: 3-range infinite
3-range
Max Travel Speed (Forward)
Not Published
14.6 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Gear: dry single disc
Not Applicable
Differential Lock & Limited Slip Options
Mechanical engagement via heel pedal
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Wet, multi-disc
Seat Suspension & Adjustability
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Not Published
Front Axle Type
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
116.0 in (w/o 3-point linkage) (without 3-point hitch)
120.9 in
Overall Width
52.4 in
55.6 in
Wheelbase
65.9 in
65.7 in
Ground Clearance
Not Published
13.1 in
Min. Turn Radius without Brakes
Not Published
L: 105.51 in; R: 104.72 in
Height to Top of ROPS
97.6 in
Not Applicable
Height to Top of ROPS (folded)
63.8 in
Not Applicable
Height to Top of Cab Model
Not Published
89.3 in
Tractor Weight (Base)
Gear: 2,600 lb; HST: 2,657 lb
n/a
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural, Golf Tires, R4 Industrial
R1 Agricultural - Front
Not Published
7-16, 6PR
R1 Agricultural - Rear
Not Published
11.2-24, 8PR
R3 Turf - Front
Not Published
Not Applicable
R3 Turf - Rear
Not Published
Not Applicable
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
380/70-19.5, 6PR
Quick Attach Loader System
L105E: skid steer or pin-type implement attachments
L3048: Quick attach mechanism
Loader Model
L105E
n/a
Loader Lift Height
L105E: 95.7 in
104.9 in
Loader Lift Capacity (Full Height)
L105E: 1,210 lb
2,200 lb
Loader Breakout Force
L105E: 1,460 lb
3,422 lb
Warranty Length & Coverage
5-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
