Massey Ferguson 1734E vs Bobcat CT2035 | Side-by-side comparison | ITC Resource Center
Compare Tractors

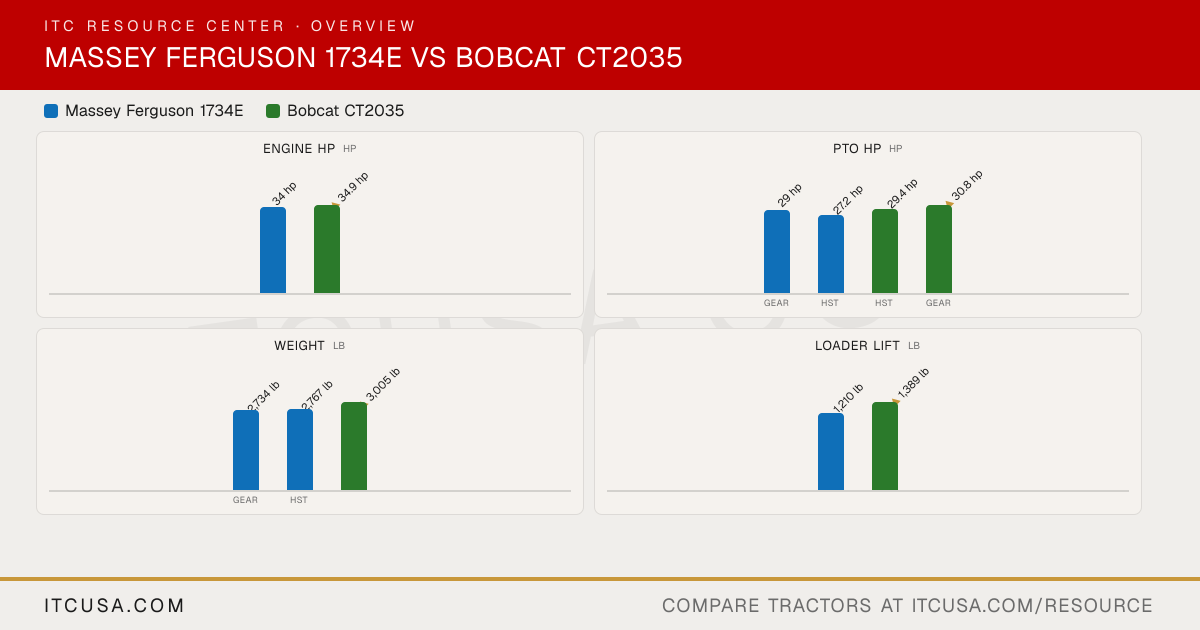

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson1734E
BobcatCT2035
Engine Manufacturer
Shibaura
Daedong
Engine Model
Shibaura N843T-F
3H-TH4A
Engine Type
3-cylinder diesel, liquid-cooled, turbocharged
Diesel
No. of Cylinders
3
3
Displacement
91.5 in³
111.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
34 hp
34.9 hp
PTO Power
Gear: 29 hp; HST: 27.2 hp
HST: 29.4 hp; MST (gear): 30.8 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Not Published
Dry type, replaceable
Fuel System
Turbocharged, indirect low-pressure injection
Common rail direct injection (CRDI)
Alternator
Not Published
75 A, 12 V
Pump Type
Gear-type pump
Not Published
Implement Flow
Not Published
6.9 gpm
Steering Flow
3.8 gpm
4.5 gpm
Total Hydraulic Flow
10.5 gpm
11.4 gpm
Overall Hydraulic Pump Flow
Not Published
11.4 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
6.7 gpm
Not Published
No. of Standard Remote Valves
Not Published
None (rear hydraulics optional)
No. of Optional Remote Valves
Up to 2
2 pairs
Fuel Tank Capacity
10.0 gal
9.0 gal
Coolant Capacity
1.32 gal
Not Published
Crankcase Capacity
1.22 gal
7.8 qt
Transmission / Hydraulic System Capacity
10.04 gal
5.8 gal
Front Axle Fluid Capacity
1.48 gal
6.3 qt
PTO Type
Not Published
Live
PTO Rear
540 rpm (1-3/8 in 6-spline)
540 rpm
Mid-PTO Availability
Not Published
Optional: 1988 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity
2,205 lb
2271 lb
Hitch Lift Capacity (at 24”)
1,600 lb
1631 lb
Lift Control Type
Not Published
Hydraulic Position Control System
Transmission Type
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
3-Range HST
No. of Speeds
Gear: 9F / 3R; HST: 3-range infinite
Infinite, 3 range
Max Travel Speed (Forward)
Not Published
14.0 mph
Max Travel Speed (Reverse)
Not Published
9.7 mph
Clutch
Gear: dry single disc
Not Published
Differential Lock & Limited Slip Options
Mechanical engagement via heel pedal
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Wet multi-disc
Seat Suspension & Adjustability
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Adjustable seat (standard)
Front Axle Type
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1433 lb
Overall Length with 3-Point Hitch
116.0 in (w/o 3-point linkage) (without 3-point hitch)
120.9 in
Overall Width
52.4 in
62.4 in
Wheelbase
65.9 in
65.7 in
Ground Clearance
Not Published
11.7 in
Min. Turn Radius without Brakes
Not Published
96.5 in (with brake applied)
Height to Top of ROPS
97.6 in
92.2 in
Height to Top of ROPS (folded)
63.8 in
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
Gear: 2,734 lb; HST: 2,767 lb
3005 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
7-16
R1 Agricultural - Rear
Not Published
11.4-24
R3 Turf - Front
27x8.50-15
27x8.5-15
R3 Turf - Rear
38x14.00-20
41x14-20
R4 Industrial - Front
27x8.50-15
25x8.5-14
R4 Industrial - Rear
15x19.5
15-19.5
Quick Attach Loader System
L105E: skid steer or pin-type implement attachments
Standard quick attach mounting system
Loader Model
L105E
FL8
Loader Lift Height
L105E: 95.7 in
99.6 in
Loader Lift Capacity (Full Height)
L105E: 1,210 lb
1389 lb
Loader Breakout Force
L105E: 1,460 lb
3285 lb
Warranty Length & Coverage
5-year powertrain warranty
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
