Massey Ferguson 1734E vs Kubota LX3520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

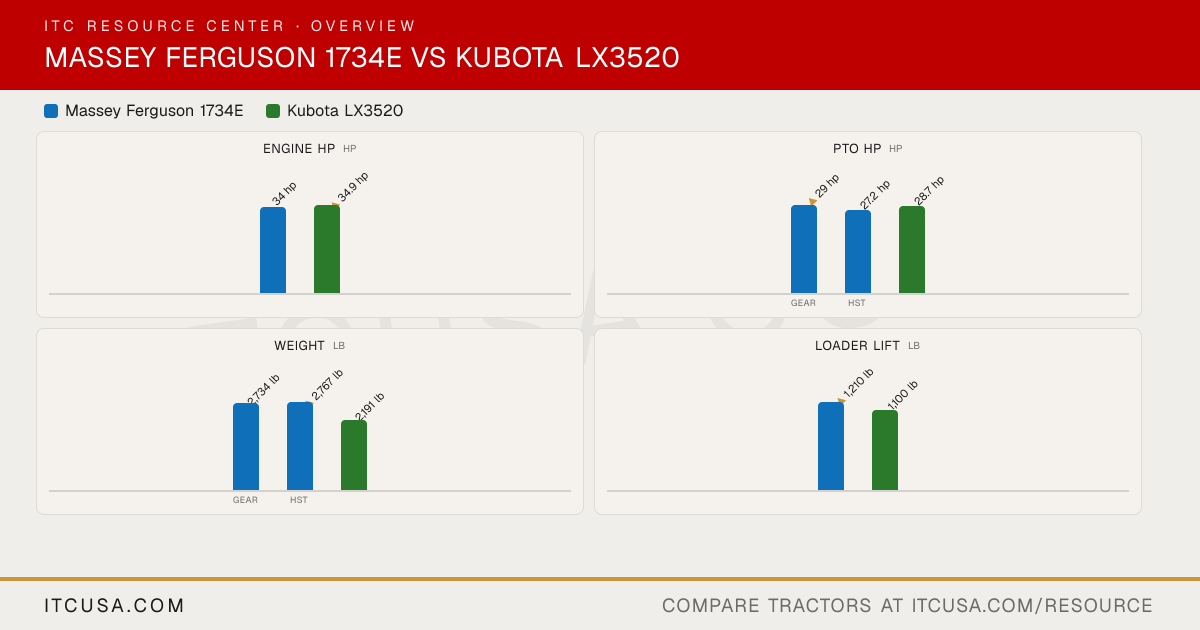

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson1734E
KubotaLX3520
Engine Manufacturer
Shibaura
Kubota
Engine Model
Shibaura N843T-F
V1505-CR-TE5-D40R5
Engine Type
3-cylinder diesel, liquid-cooled, turbocharged
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
3
4
Displacement
91.5 in³
91.4 in³
Rated Engine Speed
2600 rpm
2700 rpm
Engine Power (Gross)
34 hp
34.9 hp
PTO Power
Gear: 29 hp; HST: 27.2 hp
28.7 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Pressurized radiator
Air Cleaner
Not Published
6 in paper filter (with dual element)
Fuel System
Turbocharged, indirect low-pressure injection
Direct injection
Alternator
Not Published
Not Published
Pump Type
Gear-type pump
Dual pump
Implement Flow
Not Published
5.4 gpm
Steering Flow
3.8 gpm
4.1 gpm
Total Hydraulic Flow
10.5 gpm
9.5 gpm
Overall Hydraulic Pump Flow
Not Published
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
6.7 gpm
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Up to 2
Optional, up to 2
Fuel Tank Capacity
10.0 gal
8.5 gal
Coolant Capacity
1.32 gal
4.5 qt
Crankcase Capacity
1.22 gal
5.0 qt
Transmission / Hydraulic System Capacity
10.04 gal
5.5 gal
Front Axle Fluid Capacity
1.48 gal
4.8 qt
PTO Type
Not Published
Independent
PTO Rear
540 rpm (1-3/8 in 6-spline)
540 rpm
Mid-PTO Availability
Not Published
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2,205 lb
2535 lb
Hitch Lift Capacity (at 24”)
1,600 lb
1962 lb
Lift Control Type
Not Published
Position control valve
Transmission Type
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
HST (3 ranges)
No. of Speeds
Gear: 9F / 3R; HST: 3-range infinite
HST (3 range)
Max Travel Speed (Forward)
Not Published
17.0 mph
Max Travel Speed (Reverse)
Not Published
13.0 mph
Clutch
Gear: dry single disc
Not Published
Differential Lock & Limited Slip Options
Mechanical engagement via heel pedal
Standard
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Multi-plate wet disk
Seat Suspension & Adjustability
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1100 lb
Overall Length with 3-Point Hitch
116.0 in (w/o 3-point linkage) (without 3-point hitch)
116.1 in
Overall Width
52.4 in
53.7 in
Wheelbase
65.9 in
66.7 in
Ground Clearance
Not Published
8.9 in
Min. Turn Radius without Brakes
Not Published
7.5 ft (with brake applied)
Height to Top of ROPS
97.6 in
88.4 in
Height to Top of ROPS (folded)
63.8 in
Not Published
Height to Top of Cab Model
Not Published
85.6 in
Tractor Weight (Base)
Gear: 2,734 lb; HST: 2,767 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
Not Published
180/85D12
R1 Agricultural - Rear
Not Published
320/85D16
R3 Turf - Front
27x8.50-15
24x8.5-14
R3 Turf - Rear
38x14.00-20
13.6-16
R4 Industrial - Front
27x8.50-15
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
15x19.5
14-17.5 or 15-19.5
Quick Attach Loader System
L105E: skid steer or pin-type implement attachments
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
L105E
LA545
Loader Lift Height
L105E: 95.7 in
87.6 in
Loader Lift Capacity (Full Height)
L105E: 1,210 lb
1100 lb
Loader Breakout Force
L105E: 1,460 lb
Not Published
Warranty Length & Coverage
5-year powertrain warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
