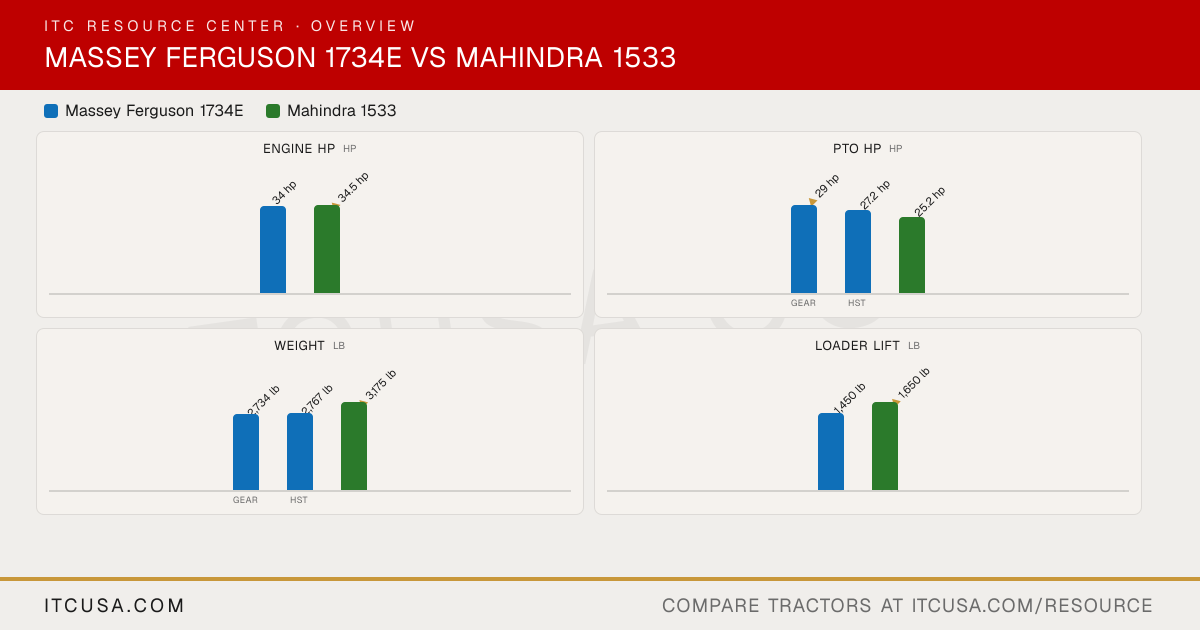

▶ EngineEngine Manufacturer Shibaura Mahindra Engine Model N843T-F Not Published Engine Type 3-cylinder diesel, liquid-cooled, turbocharged Naturally aspirated, direct injection, common-rail diesel No. of Cylinders 3 4 Displacement 91.5 in³ 166.7 in³ Rated Engine Speed 2600 rpm 2400 rpm Engine Power (Gross) 34 hp 34.5 hp PTO Power Gear: 29 hp; HST: 27.2 hp 25.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Turbocharged, indirect low-pressure injection Direct injection, common rail (mCRD) Alternator Not Published 90 A, 12 V ▶ HydraulicsPump Type Gear-type pump Not Published Implement Flow Not Published 7.7 gpm Steering Flow 3.8 gpm 3.4 gpm Total Hydraulic Flow 10.5 gpm 11.1 gpm (7.7 + 3.4, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 6.7 gpm Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 2 1 ▶ Fluid CapacityFuel Tank Capacity 10.04 gal 7.7 gal Coolant Capacity 1.32 gal Not Published Crankcase Capacity 1.22 gal Not Published Transmission / Hydraulic System Capacity 10.04 gal Not Published Front Axle Fluid Capacity 1.48 gal Not Published ▶ PTO & HitchPTO Type Not Published Independent (1533 Shuttle); Live (1533 HST) PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm @ 2376 rpm Mid-PTO Availability Not Published Optional; 2000 rpm @ 2525 rpm Category, 3-Point Hitch Category I CAT I with telescopic stabilizers Hitch Lift Capacity 2,205 lb 2,646 lb Hitch Lift Capacity (at 24”) 1,600 lb Not Published Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type 9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic Constant mesh on gear shift, synchro mesh on F/R shuttle (1533 Shuttle); 3 range HST (1533 HST) No. of Speeds Gear: 9F / 3R; HST: 3-range infinite 8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Gear: dry single disc Single plate, dry Differential Lock & Limited Slip Options Mechanical engagement via heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Internal wet brakes, single brake pedal on HST, two brake pedals on gear models Wet disc Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt, fixed steering wheel Deluxe suspension seat Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 52.4 in 63 in Wheelbase 65.9 in Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 9.2 ft Height to Top of ROPS 97.6 in 90.2 in Height to Top of ROPS (folded) 63.8 in Not Published Height to Top of Cab Model Not Published Not Published Overall Length 116 in (without 3-point hitch) 127.8 in (with industrial tires) ▶ WeightTractor Weight (Base) Gear: 2,734 lb; HST: 2,767 lb 3,175 lb (1533 Shuttle, operating weight); 3,164 lb (1533 HST, operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R4 Industrial Ag, Industrial, Turf R1 Agricultural - Front Not Published 7x16 R1 Agricultural - Rear Not Published 11.2x24 R3 Turf - Front 27x8.50-15 25x8.5-14 R3 Turf - Rear 38x14.00-20 13.6x16 R4 Industrial - Front 27x8.50-15 27x8.5-15 R4 Industrial - Rear 15x19.5 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System FLx2407: skid steer or pin-type implement attachments Not Published Loader Model FLx2407 1538L Loader Lift Height FLx2407: 94.3 in (at pivot pin) 1538L: 99 in Loader Lift Capacity (Full Height) FLx2407: 1,450 lb (at pivot pin, full height) 1538L: 1,650 lb (at pivot pin) Loader Breakout Force FLx2407: 2,288 lb (at pivot pin) 1538L: 2,650 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 7-year limited powertrain warranty
