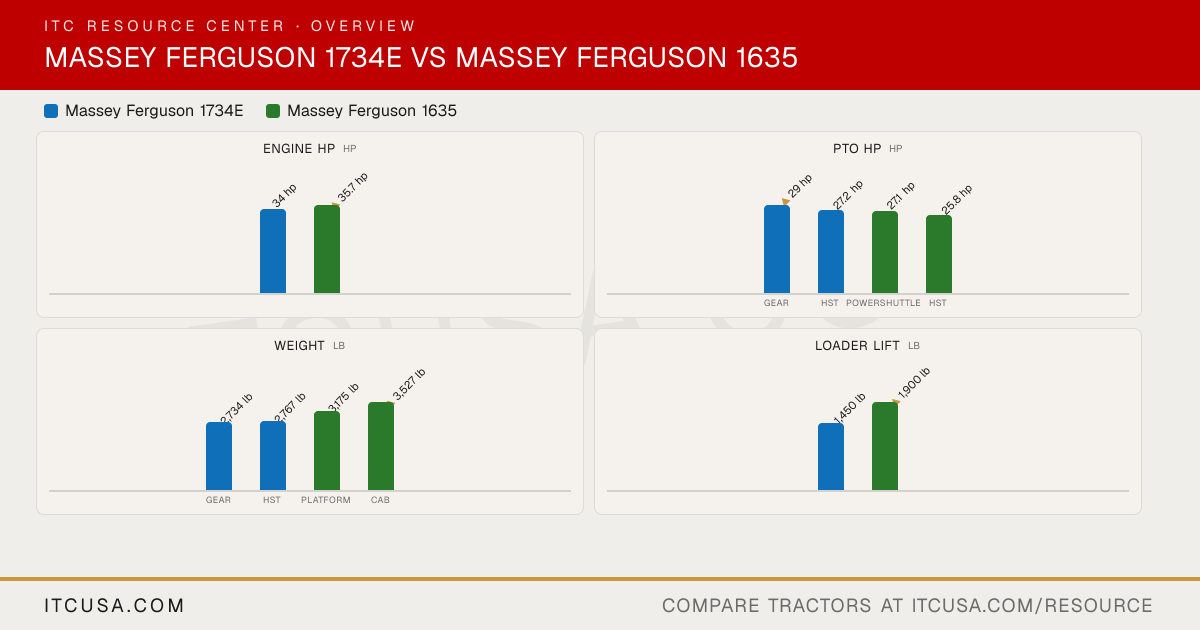

▶ EngineEngine Manufacturer Shibaura Not Published Engine Model N843T-F Not Published Engine Type 3-cylinder diesel, liquid-cooled, turbocharged 3-cylinder, naturally aspirated, indirect injection, liquid-cooled diesel No. of Cylinders 3 3 Displacement 91.5 in³ 100.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34 hp 35.7 hp PTO Power Gear: 29 hp; HST: 27.2 hp PowerShuttle: 27.1 hp; HST: 25.8 hp Engine Emissions Constraints Tier 4 Tier 4i Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Turbocharged, indirect low-pressure injection Indirect injection Alternator Not Published Not Published ▶ HydraulicsPump Type Gear-type pump Not Published Implement Flow Not Published 11.6 gpm Steering Flow 3.8 gpm HST: 4.9 gpm; PowerShuttle: 6 gpm Total Hydraulic Flow 10.5 gpm HST: 16.5 gpm; PowerShuttle: 17.6 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 6.7 gpm 11.6 gpm No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Up to 2 3 spool optional ▶ Fluid CapacityFuel Tank Capacity 10.04 gal Platform: 9.2 gal; Cab: 10.5 gal Coolant Capacity 1.32 gal Not Published Crankcase Capacity 1.22 gal Not Published Transmission / Hydraulic System Capacity 10.04 gal Not Published Front Axle Fluid Capacity 1.48 gal Not Published ▶ PTO & HitchPTO Type Not Published Independent, electro-hydraulic push-button control PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability Not Published Optional, 2000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,205 lb 2,800 lb Hitch Lift Capacity (at 24”) 1,600 lb Not Published Lift Control Type Not Published Position control with rate of drop control ▶ Transmission & DrivetrainTransmission Type 9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic 12x12 PowerShuttle or 3-range hydrostatic with cruise control No. of Speeds Gear: 9F / 3R; HST: 3-range infinite Not Published Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Gear: dry single disc Not Published Differential Lock & Limited Slip Options Mechanical engagement via heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Flat isolated platform, folding ROPS, one-piece flip-up hood Steering Power steering Not Published Brakes Internal wet brakes, single brake pedal on HST, two brake pedals on gear models Wet disc Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt, fixed steering wheel Suspended seat with retractable seat belt Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 52.4 in 64.5 in Wheelbase 65.9 in 69.7 in Ground Clearance Not Published 14.2 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 97.6 in 100.0 in Height to Top of ROPS (folded) 63.8 in Not Published Height to Top of Cab Model Not Published Not Published Overall Length 116 in (without 3-point hitch) 122.0 in ▶ WeightTractor Weight (Base) Gear: 2,734 lb; HST: 2,767 lb Platform: 3,175 lb; Cab: 3,527 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R4 Industrial Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear) R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published 12.4-24 (13.6-24 optional) R3 Turf - Front 27x8.50-15 27x8.50-15 (LSW305 R343 optional) R3 Turf - Rear 38x14.00-20 41x14.00-20 (LSW610 R470 optional) R4 Industrial - Front 27x8.50-15 10-16.5 or 25x8.5-14 R4 Industrial - Rear 15x19.5 14.9-24 or 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System FLx2407: skid steer or pin-type implement attachments DL120: pin type or skid steer type quick attach, pedestal mount Loader Model FLx2407 DL120 Loader Lift Height FLx2407: 94.3 in (at pivot pin) DL120: 102 in (at pivot pin) Loader Lift Capacity (Full Height) FLx2407: 1,450 lb (at pivot pin, full height) DL120: 1,900 lb (to full height, at pivot pin) Loader Breakout Force FLx2407: 2,288 lb (at pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Basic 2 years or 2,000 hours; powertrain 3 years or 2,000 hours
