Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

MasseyFerguson1735E

n/a

KubotaLX3520

Comparison loaded for 2 tractors.

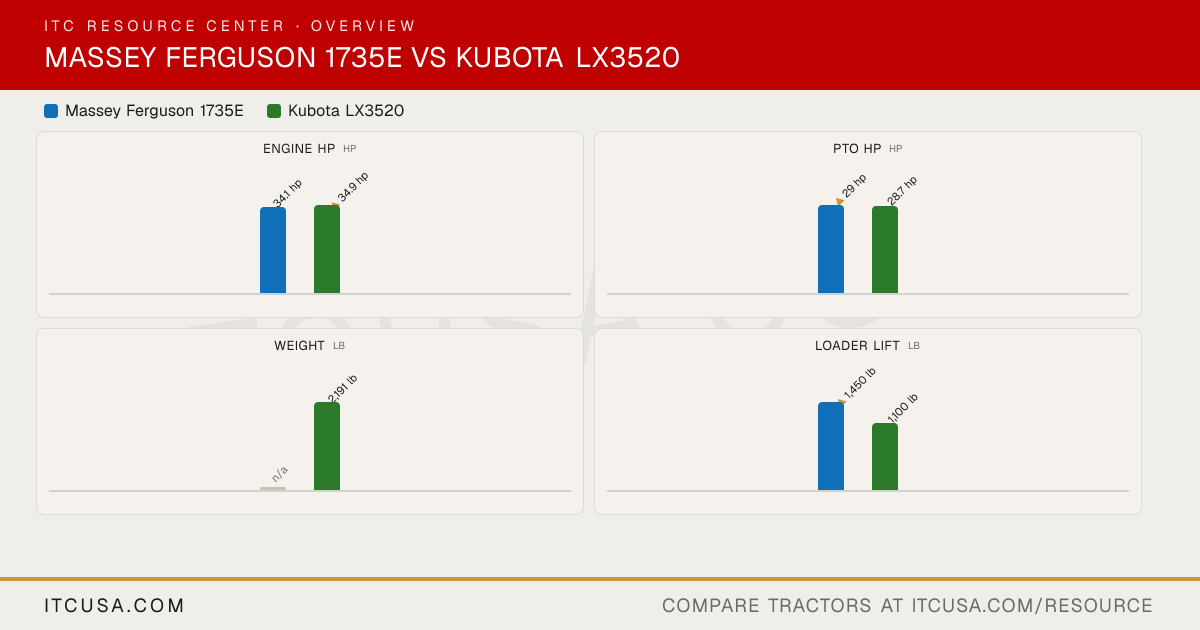

The headline numbers at a glance.

Massey Ferguson 1735EKubota LX3520

Engine HPhp

34.1 hp

▲34.9 hp

PTO HPhp

▲29 hp

28.7 hp

Weightlb

n/a

2,191 lb

Loader Liftlb

▲1,450 lb

1,100 lb

3-Pt Lift (24 in)lb

1,598 lb

▲1,962 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1735E	KubotaLX3520


Engine Manufacturer	Shibaura	Kubota
Engine Model	Not Published	V1505-CR-TE5-D40R5
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders	3	4
Displacement	91.3 in³	91.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	34.1 hp	34.9 hp
PTO Power	29 hp	28.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Pressurized radiator
Air Cleaner	Dry	6 in paper filter (with dual element)
Fuel System	Indirect injection	Direct injection
Alternator	Not Published	Not Published

Pump Type	Dual engine-driven gear pumps	Dual pump
Implement Flow	Not Published	5.4 gpm
Steering Flow	Not Published	4.1 gpm
Total Hydraulic Flow	9.7 gpm	9.5 gpm
Overall Hydraulic Pump Flow	Not Published	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	Optional, up to 2

Fuel Tank Capacity	Not Published	8.5 gal
Coolant Capacity	Not Published	4.5 qt
Crankcase Capacity	Not Published	5.0 qt
Transmission / Hydraulic System Capacity	Not Published	5.5 gal
Front Axle Fluid Capacity	Not Published	4.8 qt

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	Independent
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	2535 lb
Hitch Lift Capacity (at 24”)	1,598 lb	1962 lb
Lift Control Type	Position control	Position control valve

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	HST (3 ranges)
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	HST (3 range)
Max Travel Speed (Forward)	Not Published	17.0 mph
Max Travel Speed (Reverse)	Not Published	13.0 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Standard

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disk
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb

Overall Length with 3-Point Hitch	Not Published	116.1 in
Overall Width	Not Published	53.7 in
Wheelbase	Not Published	66.7 in
Ground Clearance	Not Published	8.9 in
Min. Turn Radius without Brakes	Not Published	7.5 ft (with brake applied)
Height to Top of ROPS	Not Published	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	85.6 in

Tractor Weight (Base)	Not Published	2191 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7-16	180/85D12
R1 Agricultural - Rear	11.2-24	320/85D16
R3 Turf - Front	Not Published	24x8.5-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	27x8.50-15	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	15-19.5	14-17.5 or 15-19.5

Quick Attach Loader System	FLx2407: pin-on (skid steer quick attach optional)	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	FLx2407	LA545
Loader Lift Height	FLx2407: 94.3 in	87.6 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	1100 lb
Loader Breakout Force	FLx2407: 2,288 lb	Not Published

Warranty Length & Coverage	5-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
