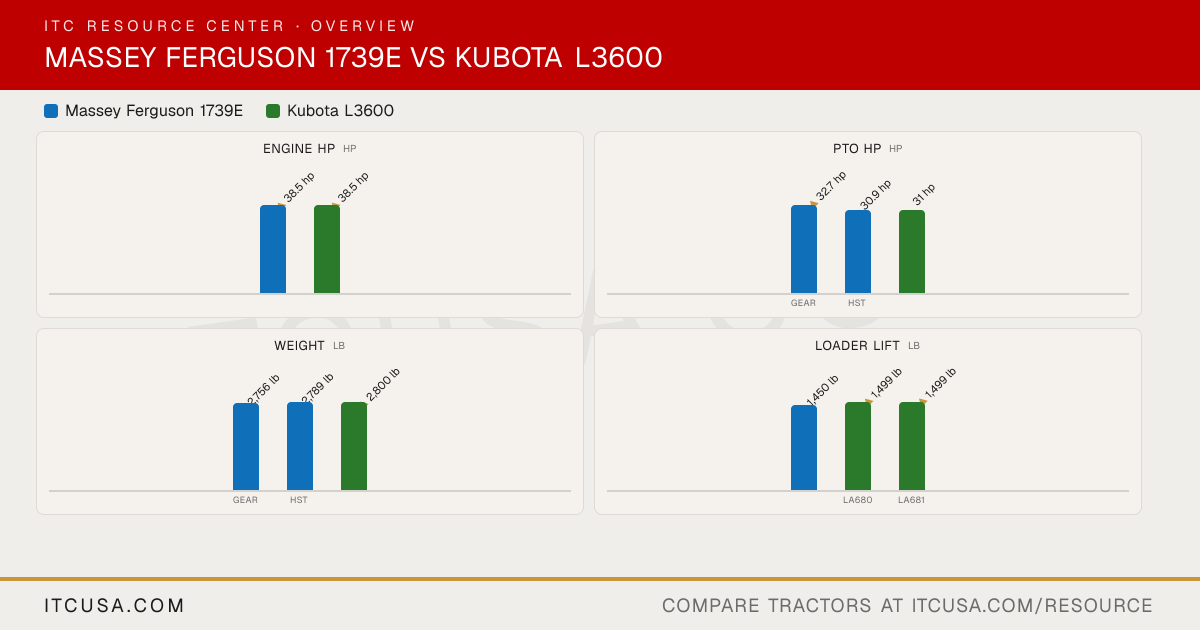

▶ EngineEngine Manufacturer Shibaura Kubota Engine Model N843T-F V1903-A Engine Type 3-cylinder diesel, liquid-cooled, turbocharged Indirect injection, vertical, water-cooled, 4-cycle diesel No. of Cylinders 3 4 Displacement 91.5 in³ 113.3 in³ Rated Engine Speed 2800 rpm 2600 rpm Engine Power (Gross) 38.5 hp 38.5 hp PTO Power Gear: 32.7 hp; HST: 30.9 hp 31 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Not Published Fuel System Turbocharged, indirect low-pressure injection Indirect injection Alternator Not Published Not Published ▶ HydraulicsPump Type Gear-type pump Not Published Implement Flow Not Published 7.8 gpm Steering Flow 4.1 gpm Not Published Total Hydraulic Flow 11.3 gpm Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 7.2 gpm Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 10.04 gal 9.2 gal Coolant Capacity 1.32 gal 7.9 qt Crankcase Capacity 1.22 gal 6.3 qt Transmission / Hydraulic System Capacity 10.04 gal 10.3 gal Front Axle Fluid Capacity 1.48 gal Not Published ▶ PTO & HitchPTO Type Gear: independent; HST: transmission-driven with overrunning clutch Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability Not Published Optional mid-PTO, 2000 rpm (USA No. 5, Kubota 10-tooth involute spline) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,205 lb 2,870 lb Hitch Lift Capacity (at 24”) 1,600 lb 2,310 lb Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type 9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic F (2WD), DT (4WD): synchronized shuttle and synchronized transmission, 8F/8R; GST (4WD): Glide Shift, 8F/8R No. of Speeds Gear: 9F / 3R; HST: 3-range infinite 8F/8R Max Travel Speed (Forward) Not Published 14.3 mph Max Travel Speed (Reverse) Not Published 13.1 mph Clutch Gear: dry single disc Dry type single stage Differential Lock & Limited Slip Options Mechanical engagement via heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post ROPS Steering Power steering Hydrostatic power steering Brakes Internal wet brakes, single brake pedal on HST, two brake pedals on gear models Wet disc type Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt, fixed steering wheel Not Published Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,430 lb ▶ Dimensions & ManeuverabilityOverall Width 52.4 in 56.1 in Wheelbase 65.9 in F (2WD): 71.3 in; DT (4WD), GST (4WD): 71.1 in Ground Clearance Not Published 13.2 in Min. Turn Radius without Brakes Not Published F (2WD), DT (4WD): 8.2 ft; GST (4WD): 8.5 ft (with brake applied) Height to Top of ROPS 97.6 in 83.5 in Height to Top of ROPS (folded) 63.8 in Not Published Height to Top of Cab Model Not Published Not Published Overall Length 116 in (without 3-point hitch) 118.1 in (without 3-point hitch) ▶ WeightTractor Weight (Base) Gear: 2,756 lb; HST: 2,789 lb F (2WD): 2,800 lb; DT (4WD): 2,955 lb; GST (4WD): 2,965 lb (with ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R4 Industrial Ag: 6.00-16 (2WD) or 8.3-16 (4WD) front, 13.6-24 rear R1 Agricultural - Front Not Published F (2WD): 6.00-16; DT (4WD), GST (4WD): 8.3-16 R1 Agricultural - Rear Not Published 13.6-24 R3 Turf - Front 27x8.50-15 Not Published R3 Turf - Rear 38x14.00-20 Not Published R4 Industrial - Front 27x8.50-15 Not Published R4 Industrial - Rear 15x19.5 Not Published ▶ Loader & AttachmentsQuick Attach Loader System FLx2407: skid steer or pin-type implement attachments Not Published Loader Model FLx2407 LA680; LA681 Loader Lift Height FLx2407: 94.3 in (at pivot pin) LA680: 102.4 in; LA681: 102.4 in Loader Lift Capacity (Full Height) FLx2407: 1,450 lb (at pivot pin, full height) LA680: 1,499 lb; LA681: 1,499 lb Loader Breakout Force FLx2407: 2,288 lb (at pivot pin) LA680: 2,557 lbf; LA681: 2,557 lbf ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
