Compare Tractors

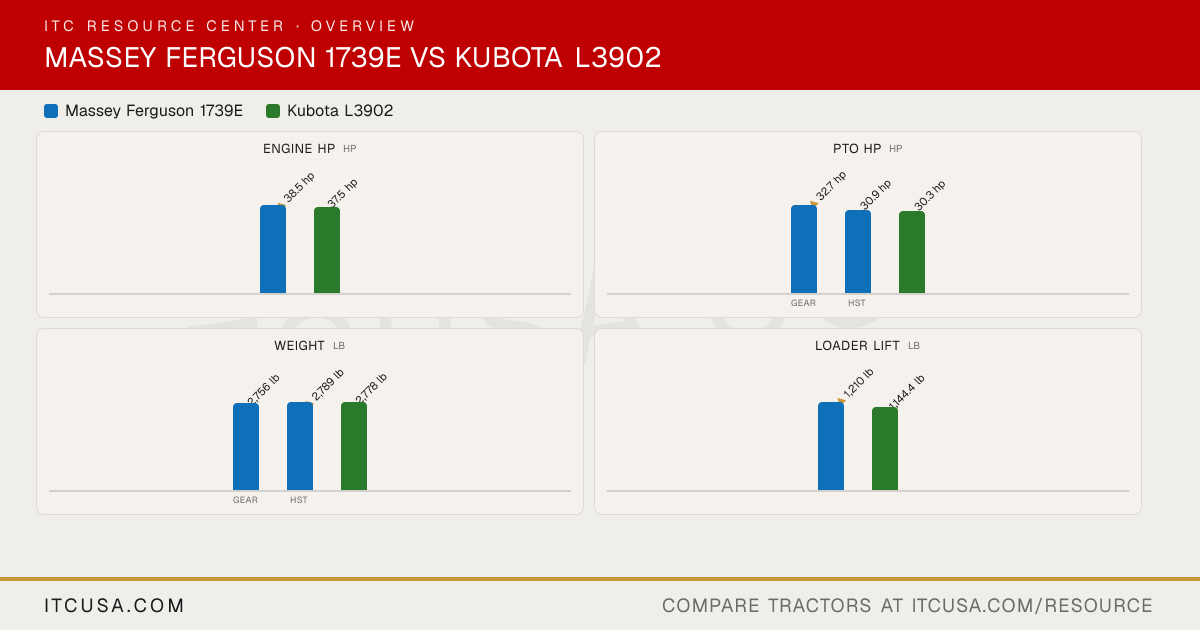

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson1739E
KubotaL3902
Engine Manufacturer
Shibaura
Kubota
Engine Model
Shibaura N843T-F
D1803-CR-E5
Engine Type
3-cylinder diesel, liquid-cooled, turbocharged
Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders
3
3
Displacement
91.5 in³
111.4 in³
Rated Engine Speed
2800 rpm
2700 rpm
Engine Power (Gross)
38.5 hp
37.5 hp
PTO Power
Gear: 32.7 hp; HST: 30.9 hp
30.3 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Not Published
Dry type, single element
Fuel System
Turbocharged, indirect low-pressure injection
Direct injection
Alternator
Not Published
45 A, 12 V
Pump Type
Gear-type pump
Not Published
Implement Flow
Not Published
6.3 gpm
Steering Flow
4.1 gpm
3.8 gpm
Total Hydraulic Flow
11.3 gpm
10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow
Not Published
10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
7.2 gpm
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Up to 2
Not Published
Fuel Tank Capacity
10.0 gal
11.1 gal
Coolant Capacity
1.32 gal
6.3 qt
Crankcase Capacity
1.22 gal
7.1 qt
Transmission / Hydraulic System Capacity
10.04 gal
6.9 gal
Front Axle Fluid Capacity
1.48 gal
4.8 qt
PTO Type
Gear: independent; HST: transmission driven with overrunning clutch
Live independent PTO with hydraulic clutch
PTO Rear
540 rpm (1-3/8 in 6-spline)
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
SAE Category I
Hitch Lift Capacity
2,205 lb
1998 lb
Hitch Lift Capacity (at 24”)
1,600 lb
1435 lb
Lift Control Type
Not Published
Position control
Transmission Type
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
Hydrostatic transmission (3-range)
No. of Speeds
Gear: 9F / 3R; HST: 3-range infinite
3-range
Max Travel Speed (Forward)
Not Published
14.1 mph
Max Travel Speed (Reverse)
Not Published
12.7 mph
Clutch
Gear: dry single disc
Not Applicable
Differential Lock & Limited Slip Options
Mechanical engagement via heel pedal
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Power steering
Integral type power steering
Brakes
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Mechanical, wet disc type
Seat Suspension & Adjustability
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Cast steel 4WD front axle with center drive line and bevel-gear final drives
Cast-iron front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
730 lb
Overall Length with 3-Point Hitch
116.0 in (w/o 3-point linkage) (without 3-point hitch)
108.5 in (without 3-point hitch)
Overall Width
52.4 in
55.1 in
Wheelbase
65.9 in
63.4 in
Ground Clearance
Not Published
13.4 in
Min. Turn Radius without Brakes
Not Published
8.2 ft (with brake applied)
Height to Top of ROPS
97.6 in
91.7 in
Height to Top of ROPS (folded)
63.8 in
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
Gear: 2,756 lb; HST: 2,789 lb
2778 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R4 Industrial
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
Not Published
7.2-16
R1 Agricultural - Rear
Not Published
11.2-24
R3 Turf - Front
27x8.50-15
25X8.50-14
R3 Turf - Rear
38x14.00-20
13.6-16
R4 Industrial - Front
27x8.50-15
27X8.50-15
R4 Industrial - Rear
15x19.5
15-19.5
Quick Attach Loader System
L105E: skid steer or pin-type implement attachments
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model
L105E
LA526
Loader Lift Height
L105E: 95.7 in
94.8 in
Loader Lift Capacity (Full Height)
L105E: 1,210 lb
1144.4 lb
Loader Breakout Force
L105E: 1,460 lb
Not Published
Warranty Length & Coverage
5-year powertrain warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
