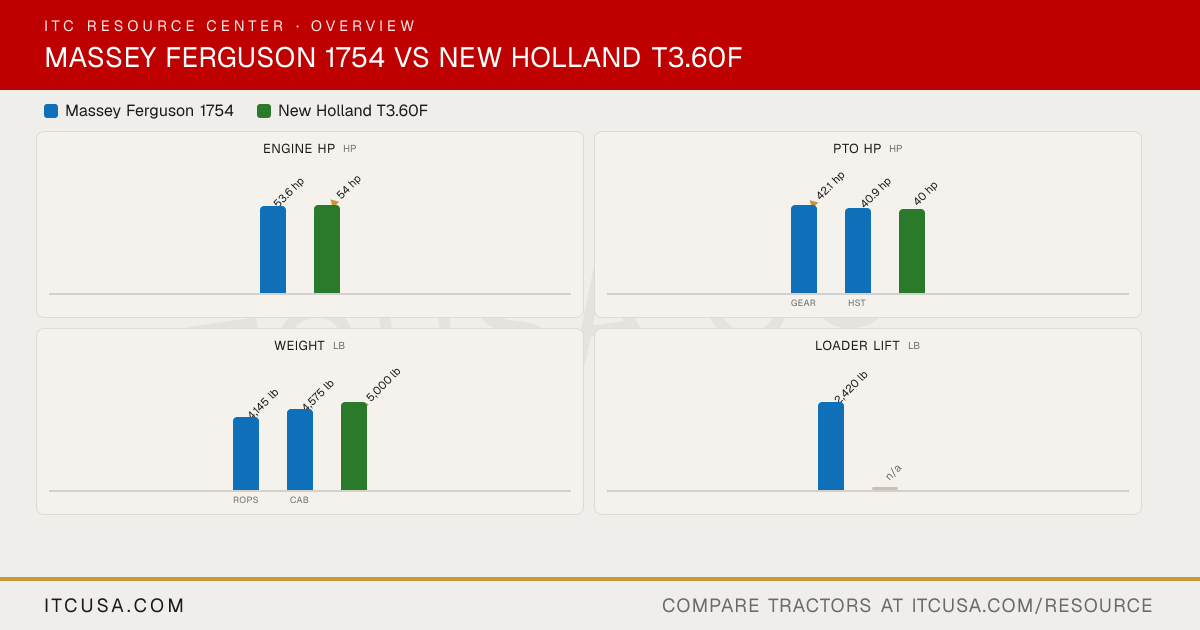

▶ EngineEngine Manufacturer Mitsubishi FPT Industrial Engine Model K39 S8000 Engine Type 4-cylinder turbocharged and intercooled diesel Turbocharged, intercooled 3-cylinder diesel No. of Cylinders 4 3 Displacement 134.7 in³ 179 in³ Rated Engine Speed 2500 rpm 2300 rpm Engine Power (Gross) 53.6 hp 54 hp PTO Power Gear: 42.1 hp; HST: 40.9 hp 40 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Common rail direct injection with electronic engine management Common rail fuel injection Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Dual-pump Implement Flow 11.6 gpm 12.6 gpm Steering Flow 6.8 gpm 7.6 gpm Total Hydraulic Flow Not Published 20.2 gpm Overall Hydraulic Pump Flow Not Published 20.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow 11.6 gpm Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves Up to 3 3 ▶ Fluid CapacityFuel Tank Capacity 14.5 gal Not Published Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulically engaged Not Published PTO Rear 540 rpm (1-3/8 in 6-spline) 540/540E Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category I Not Published Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,086 lb 4,000 lb Lift Control Type Position control; draft control optional Lift-O-Matic ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST 12x12 Mechanical Shuttle No. of Speeds Power shuttle: 12F / 12R; Servo-HST: 3-range infinite 12F/12R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet multi-disc (power shuttle) Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock, right side heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Drop-axle rear with bull gear final drives Straddle-deck platform Steering Power steering, tilt steering wheel Not Published Brakes Internal wet disc brakes, individual control via independent foot pedals Not Published Seat Suspension & Adjustability Deluxe suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab) Vinyl suspension seat Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives 4WD front axle, electronic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.3 in 143 in Overall Width 65.4 in 57 in Wheelbase 77.2 in 73 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 97 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in Not Published ▶ WeightTractor Weight (Base) ROPS: 4,145 lb; Cab: 4,575 lb 5,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 9.5x16 front, 13.6x28 rear (16.9x24 optional); turf: 27x10.50-15 front, 44x18.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/80R16 front, 360/80R28 rear) Not Published R1 Agricultural - Front 9.5-16 Not Published R1 Agricultural - Rear 13.6-28 (16.9-24 optional) 320/70R20 R3 Turf - Front 27x10.50-15 Not Published R3 Turf - Rear 44x18.00-20 Not Published R4 Industrial - Front 10-16.5 or 250/80R16 Not Published R4 Industrial - Rear 17.5L-24 or 360/80R28 Not Published ▶ Loader & AttachmentsQuick Attach Loader System DL135: universal skid steer or compact quick-attach tool carrier Not Published Loader Model DL135 Not Published Loader Lift Height DL135: 110.2 in Not Published Loader Lift Capacity (Full Height) DL135: 2,420 lb Not Published Loader Breakout Force DL135: 2,860 lb Not Published ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
