Massey Ferguson 1760M vs John Deere 4520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

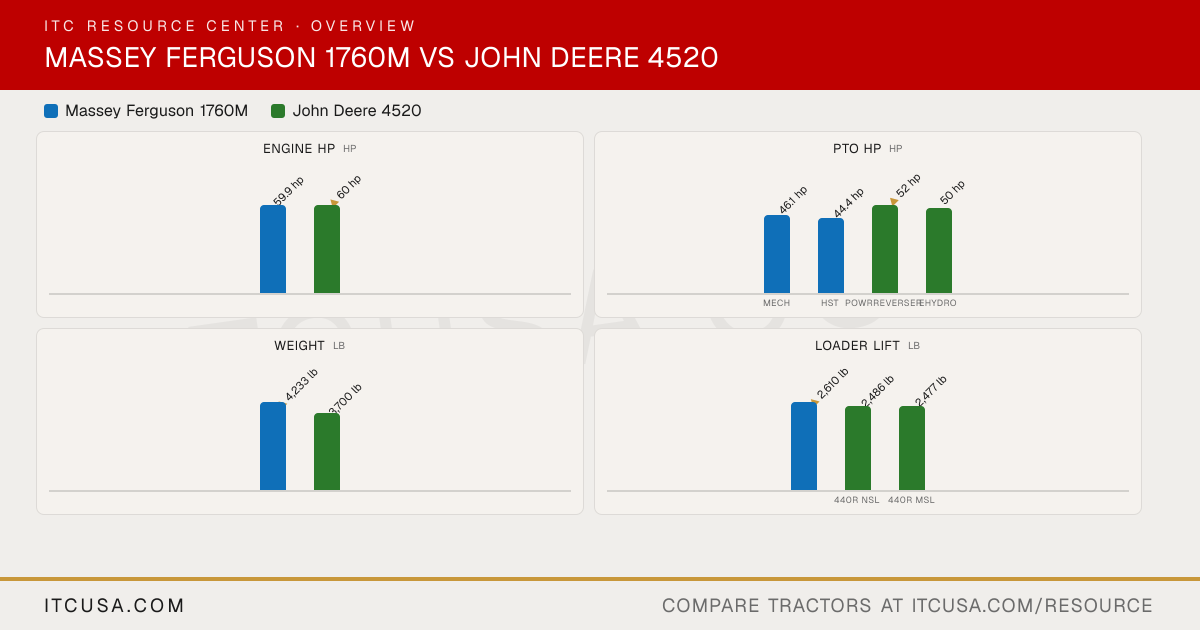

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering
Power steering
Power steering
Brakes
Internal wet disc brakes, independent foot pedals
Wet disk
Seat Suspension & Adjustability
Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering
Air ride seat optional
Front Axle Type
Cast-steel 4WD front axle, center driveline, bevel-gear final drives
Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating
Not Published
3,528 lb
Drawbar Capacity
Not Published
1,103 lb
Overall Width
12x12 Power Shuttle: 71.1 in; HST: 65.4 in
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase
12x12 Power Shuttle: 80.3 in; HST: 77.9 in
71.5 in
Ground Clearance
14.8 in
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Height to Top of ROPS
12x12 Power Shuttle: 103.2 in; HST: 102.4 in
97.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
12x12 Power Shuttle: 93.3 in; HST: 92.9 in
92.4 in
Overall Length
HST: 132.3 in
128.2 in (with 3-point hitch)
Tractor Weight (Base)
12x12 Power Shuttle: 4,233 lb (ROPS base weight)
3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
AG, Turf, Industrial, Snow
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front
9.5x16
8.00-16
R1 Agricultural - Rear
16.9x26
13.6-28
R3 Turf - Front
27x10.50-15
27x10.5-15
R3 Turf - Rear
44x18.00-20
44x18.00-20
R4 Industrial - Front
12-16.5
10.00-16.5
R4 Industrial - Rear
18.4-24
17.5L-24
Quick Attach Loader System
DL135: Skid steer quick attach
Not Published
Loader Model
DL135
440R (NSL and MSL)
Loader Lift Height
DL135: 111 in (at pivot pin)
440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)
DL135: 2,610 lb (at pivot pin, full height)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
