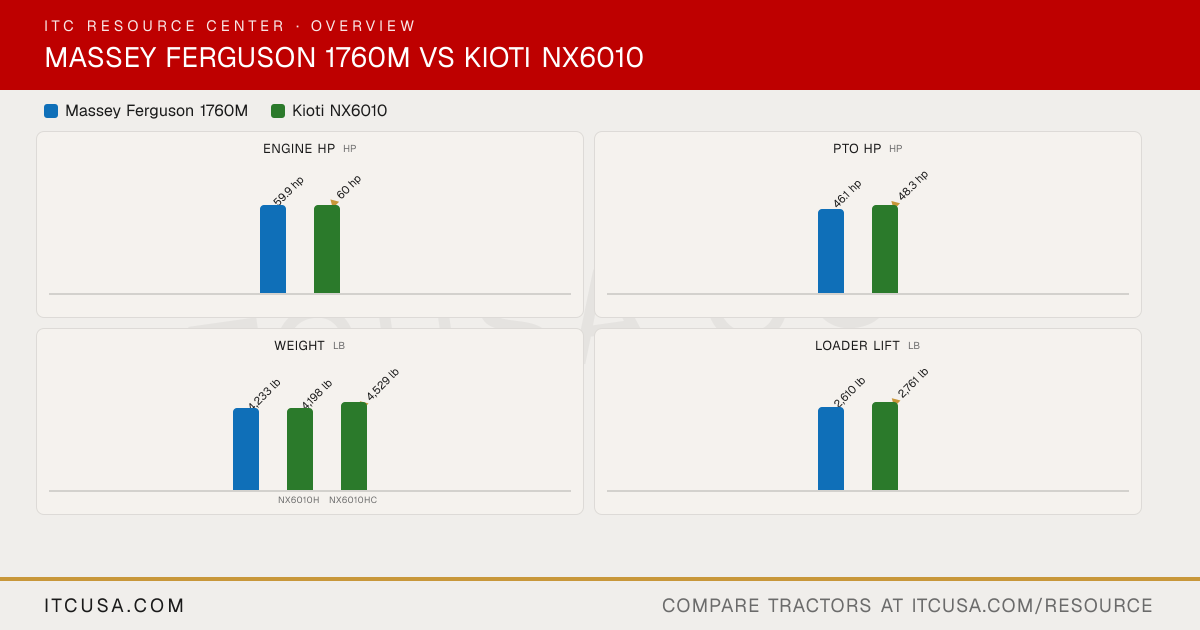

▶ EngineEngine Manufacturer Shibaura KIOTI (Daedong) Engine Model Shibaura N4LDI-TA 3F183T Engine Type 4-cylinder turbocharged intercooled diesel, liquid-cooled KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI No. of Cylinders 4 3 Displacement 135.2 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 59.9 hp 60 hp PTO Power 46.1 hp 48.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dry type element Fuel System Common rail direct injection Common Rail Direct Injection (CRDI) Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Gear Implement Flow Not Published 9.6 gpm Steering Flow Not Published 8.2 gpm Total Hydraulic Flow Not Published 17.9 gpm Overall Hydraulic Pump Flow 12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm 17.9 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow 12.1 gpm Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Up to 3 1 ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 14.8 gal Coolant Capacity 7.08 qt 2.0 gal Crankcase Capacity 6.87 qt 1.58 gal Transmission / Hydraulic System Capacity 12x12 Power Shuttle: 11.35 gal; HST: 9.25 gal 11.89 gal Front Axle Fluid Capacity 9.0 qt 1.8 gal ▶ PTO & HitchPTO Type Independent, with soft-start feature Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability Optional, 2,000 rpm (not offered with the 12x12 power shuttle) Optional (2,000 rpm) Category, 3-Point Hitch Category I with extendable ball ends Category I & II Hitch Lift Capacity Not Published 3,538 lb Hitch Lift Capacity (at 24”) 12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb 3,177 lb Lift Control Type Position and draft control Position with Draft Control ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic Hydrostatic No. of Speeds 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite 3 Range Max Travel Speed (Forward) Not Published 18.26 mph Max Travel Speed (Reverse) Not Published 18.26 mph Clutch Multiple stage wet type Not Published Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Differential Lock: Rear (Standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Internal wet disc brakes, individual control via independent foot pedals Wet Multi Disc Seat Suspension & Adjustability Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering Adjustable Seat Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 12x12 Power Shuttle: 170.1 in; HST: 132.3 in 139.6 in Overall Width 12x12 Power Shuttle: 71.1 in; HST: 65.4 in 65.7 in Wheelbase 12x12 Power Shuttle: 80.3 in; HST: 77.9 in 75.6 in Ground Clearance 14.8 in 15.7 in Min. Turn Radius without Brakes Not Published 10.0 ft Height to Top of ROPS 12x12 Power Shuttle: 103.2 in; HST: 102.4 in 103.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 12x12 Power Shuttle: 93.3 in; HST: 92.9 in 94.1 in ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 4,233 lb NX6010H: 4,198 lb; NX6010HC: 4,529 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5x16 9.5-16 R1 Agricultural - Rear 16.9x26 16.9-24 R3 Turf - Front 27x10.50-15 29-12.5-15 R3 Turf - Rear 44x18.00-20 21.5L-16.1 R4 Industrial - Front 12-16.5 10-16.5 R4 Industrial - Rear 18.4-24 17.5-24 ▶ Loader & AttachmentsQuick Attach Loader System DL135: Skid steer quick attach Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Model DL135 KL6010 Loader Lift Height DL135: 111 in KL6010: 108.3 in (to pivot pin) Loader Lift Capacity (Full Height) DL135: 2,610 lb KL6010: 2,761 lb (at pivot pin, max height) Loader Breakout Force DL135: 4,000 lb KL6010: 3,727 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
