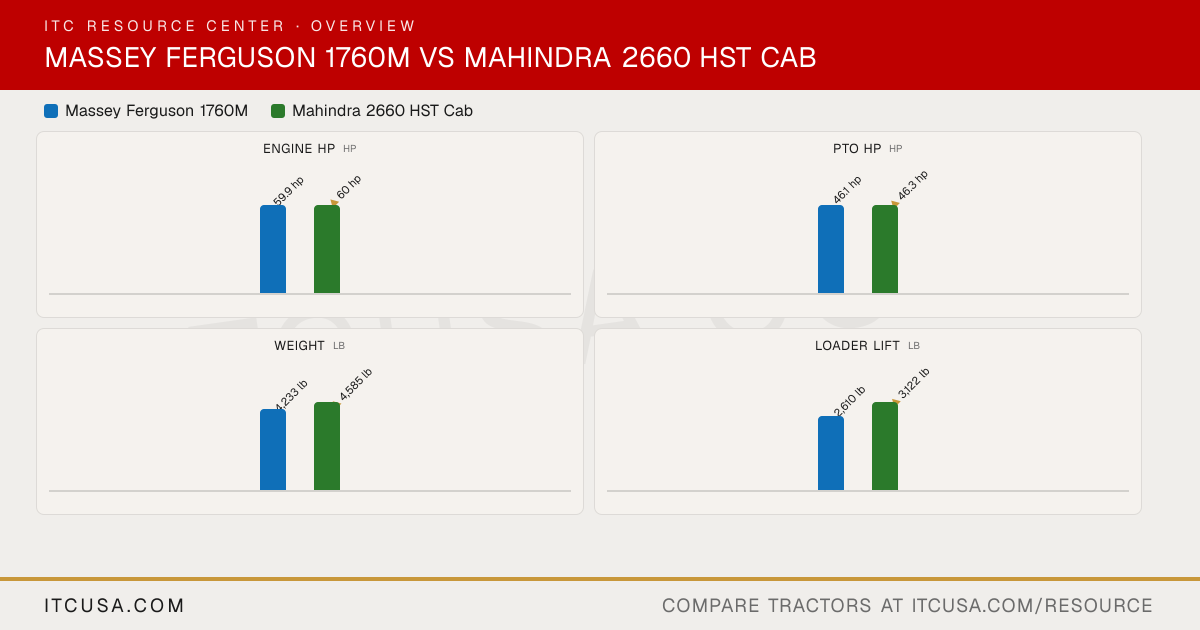

▶ EngineEngine Manufacturer Shibaura Mahindra Engine Model Shibaura N4LDI-TA VNEF Engine Type 4-cylinder turbocharged intercooled diesel, liquid-cooled Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine No. of Cylinders 4 3 Displacement 135.2 in³ 161.7 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 59.9 hp 60 hp PTO Power 46.1 hp 46.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dual dry Fuel System Common rail direct injection Direct Injection (mCRD fuel-injected) Alternator Not Published 90 A, 12 V ▶ HydraulicsPump Type Engine-driven gear-type pump Not Published Implement Flow Not Published 11.8 gpm Steering Flow Not Published 4.9 gpm Total Hydraulic Flow Not Published 16.7 gpm Overall Hydraulic Pump Flow 12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm 16.7 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow 12.1 gpm Not Published No. of Standard Remote Valves Not Published 1 Spool No. of Optional Remote Valves Up to 3 Not Published ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 16 gal Coolant Capacity 7.08 qt 9.0 qt Crankcase Capacity 6.87 qt 7.1 qt Transmission / Hydraulic System Capacity 12x12 Power Shuttle: 11.35 gal; HST: 9.25 gal 9.2 gal Front Axle Fluid Capacity 9.0 qt 10.5 qt ▶ PTO & HitchPTO Type Independent, with soft-start feature Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm @ 2300 rpm Mid-PTO Availability Optional, 2,000 rpm (not offered with the 12x12 power shuttle) Optional Category, 3-Point Hitch Category I with extendable ball ends CAT I with Telescoping Stabilizers & Flex Links Hitch Lift Capacity Not Published 3314 lb Hitch Lift Capacity (at 24”) 12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb 2945 lb Lift Control Type Position and draft control Position Control ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic HST No. of Speeds 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Infinite / 3 Ranges Max Travel Speed (Forward) Not Published 17.6 mph Max Travel Speed (Reverse) Not Published 17.6 mph Clutch Multiple stage wet type Damper Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Internal wet disc brakes, individual control via independent foot pedals Wet Disc Brake, Mechanical Seat Suspension & Adjustability Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering mComfort seat (mechanical suspension; adjustable headrest; foldable armrests) Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 12x12 Power Shuttle: 170.1 in; HST: 132.3 in 138.8 in Overall Width 12x12 Power Shuttle: 71.1 in; HST: 65.4 in 71.1 in Wheelbase 12x12 Power Shuttle: 80.3 in; HST: 77.9 in 73.7 in Ground Clearance 14.8 in 14.5 in Min. Turn Radius without Brakes Not Published 155.5 in Height to Top of ROPS 12x12 Power Shuttle: 103.2 in; HST: 102.4 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 12x12 Power Shuttle: 93.3 in; HST: 92.9 in 102 in ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 4,233 lb 4585 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 5855 lb ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R4 Industrial, R3 Turf R1 Agricultural - Front 9.5x16 9.5X16 6PR R1 Agricultural - Rear 16.9x26 14.9X24 6PR R3 Turf - Front 27x10.50-15 LSW305-521 R3 Turf - Rear 44x18.00-20 LSW570-648 R4 Industrial - Front 12-16.5 12X16.5 6PR R4 Industrial - Rear 18.4-24 16.9X24 8PR ▶ Loader & AttachmentsQuick Attach Loader System DL135: Skid steer quick attach 2660CL: Quick-attach adapter included (loader interfaces with compatible attachments via quick-attach system). Loader Model DL135 2660CL Loader Lift Height DL135: 111 in 2660CL: 115.4 in Loader Lift Capacity (Full Height) DL135: 2,610 lb 2660CL: 3,122 lb at pivot pin to full height Loader Breakout Force DL135: 4,000 lb 2660CL: 5,225 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 7-Year Limited Powertrain Warranty
