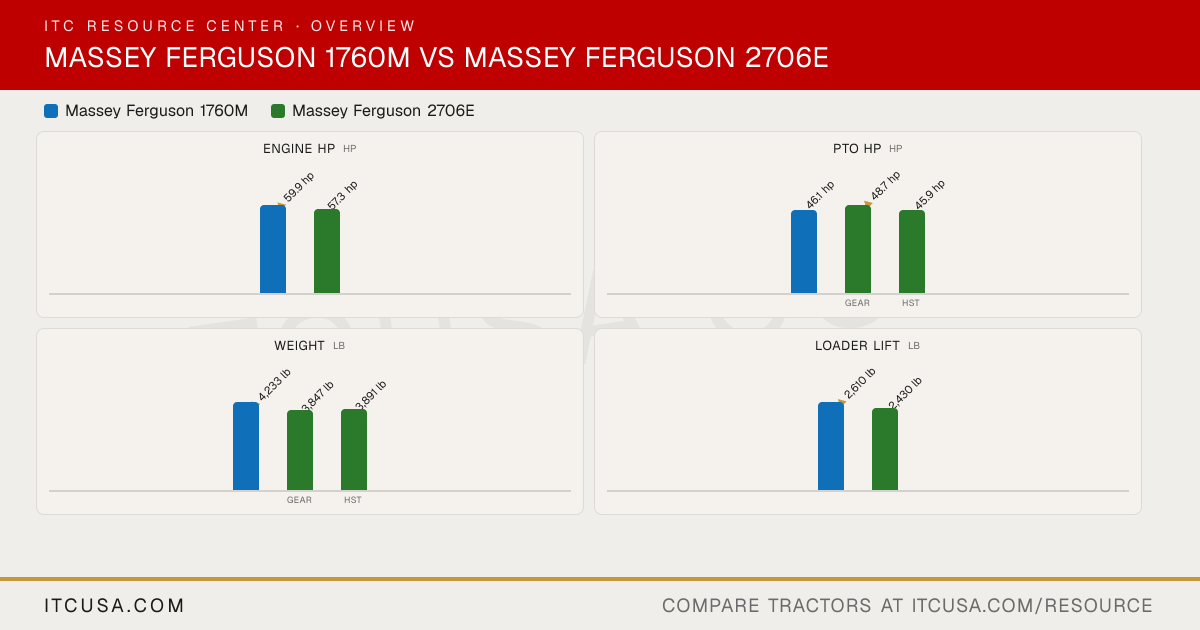

▶ EngineEngine Manufacturer Shibaura Shibaura Engine Model N4LDI-TA N4LDI-TA Engine Type 4-cylinder turbocharged intercooled diesel, liquid-cooled 4-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement 135.2 in³ 135.2 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 59.9 hp 57.3 hp PTO Power Mech: 46.1 hp; HST: 44.4 hp Gear: 48.7 hp; HST: 45.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Primary and secondary elements Fuel System Common rail direct injection Electronically controlled high-pressure common rail Alternator Not Published 90 A ▶ HydraulicsPump Type Engine-driven gear-type pump Gear-type single pump Implement Flow Not Published Not Published Steering Flow Not Published Not Published Total Hydraulic Flow Not Published 12.4 gpm Overall Hydraulic Pump Flow 12x12 Power Shuttle: 12.7 gpm; HST: 12.6 gpm 12.4 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 12.1 gpm Not Published No. of Standard Remote Valves Not Published None No. of Optional Remote Valves Up to 3 1 factory-installed; up to 3 field-installed ▶ Fluid CapacityFuel Tank Capacity 14 gal 14 gal Coolant Capacity 7.08 qt 1.66 gal Crankcase Capacity 6.87 qt 1.53 gal Transmission / Hydraulic System Capacity Power Shuttle: 11.35 gal; HST: 9.25 gal 10.04 gal Front Axle Fluid Capacity 9 qt 2.21 gal ▶ PTO & HitchPTO Type Independent, with soft-start feature Independent, electro-hydraulically engaged PTO Rear 540 rpm (6-spline) 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional, 2,000 rpm (not offered with the 12x12 power shuttle) No mid-PTO Category, 3-Point Hitch Category I with extendable ball ends Category I and II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 12x12 Power Shuttle: 3,307 lb; HST: 3,086 lb 2,425 lb Lift Control Type Draft control optional Not Published ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST No. of Speeds 12 x 12 Power Shuttle (3 ranges, 4 gears); HST: 3-range, infinite speeds in each range Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Multiple stage wet type Dry single-disc Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Mechanical engagement (Gear: right-side heel pedal; HST: left-side heel pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Internal wet disc brakes, independent foot pedals Internal wet brakes, 2 pedals (Gear: right-hand; HST: left-hand) Seat Suspension & Adjustability Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering Suspended vinyl seat with retractable seatbelt Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 12x12 Power Shuttle: 71.1 in; HST: 65.4 in 74 in Wheelbase 12x12 Power Shuttle: 80.3 in; HST: 77.9 in 78 in Ground Clearance 14.8 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 12x12 Power Shuttle: 103.2 in; HST: 102.4 in 104 in Height to Top of ROPS (folded) Not Published 80 in Height to Top of Cab Model 12x12 Power Shuttle: 93.3 in; HST: 92.9 in Not Published Overall Length HST: 132.3 in 133 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 4,233 lb (ROPS base weight) Gear: 3,847 lb; HST: 3,891 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options AG, Turf, Industrial, Snow R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear R1 Agricultural - Front 9.5x16 9.5x16 R1 Agricultural - Rear 16.9x26 13.6x28; 16.9x24 R3 Turf - Front 27x10.50-15 27x10.50-15 R3 Turf - Rear 44x18.00-20 44x18.00-20 R4 Industrial - Front 12-16.5 10-16.5 R4 Industrial - Rear 18.4-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System DL135: Skid steer quick attach L135E: optional skid steer tool carrier Loader Model DL135 L135E Loader Lift Height DL135: 111 in (at pivot pin) L135E: 110.2 in Loader Lift Capacity (Full Height) DL135: 2,610 lb (at pivot pin, full height) L135E: 2,430 lb (at pivot pin) Loader Breakout Force DL135: 4,000 lb (at pivot pin) L135E: 2,870 lb ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty 5-year powertrain warranty
