Massey Ferguson 1835E vs Kubota LX3520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

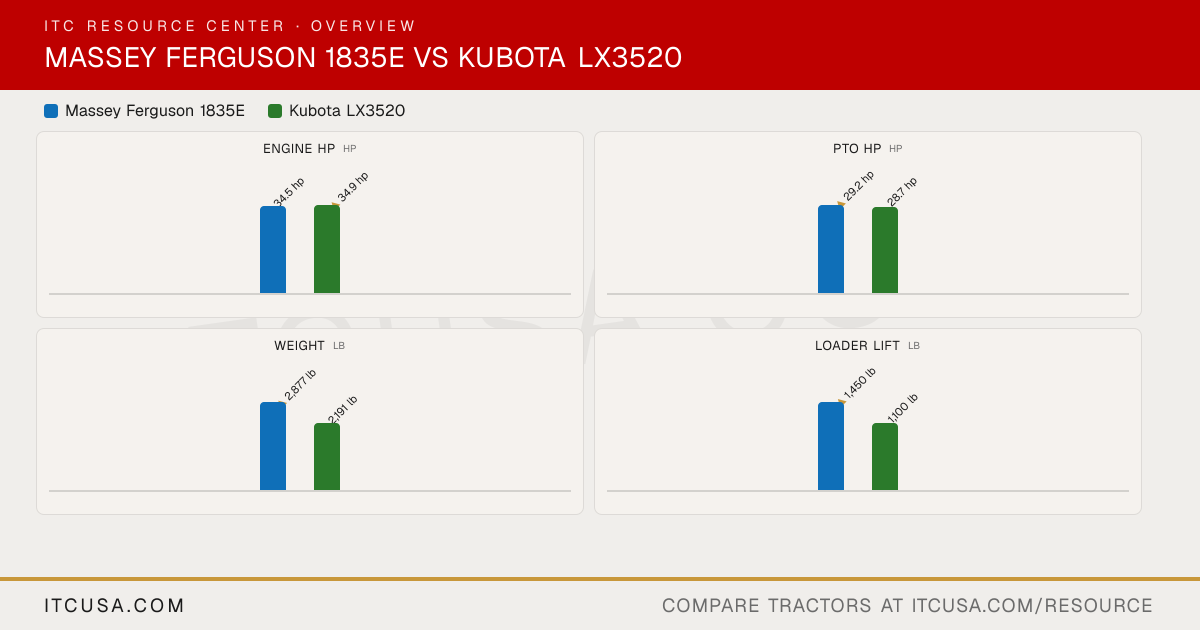

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1100 lb
Overall Length with 3-Point Hitch
116.5 in
116.1 in
Overall Width
52.4 in
53.7 in
Wheelbase
Not Published
66.7 in
Ground Clearance
11.0 in
8.9 in
Min. Turn Radius without Brakes
Not Published
7.5 ft (with brake applied)
Height to Top of ROPS
97.6 in
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
85.6 in
Tractor Weight (Base)
2,877 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
Not Published
180/85D12
R1 Agricultural - Rear
Not Published
320/85D16
R3 Turf - Front
Not Published
24x8.5-14
R3 Turf - Rear
Not Published
13.6-16
R4 Industrial - Front
Not Published
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
Not Published
14-17.5 or 15-19.5
Quick Attach Loader System
FLx2407: skid steer quick attach
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
FLx2407
LA545
Loader Lift Height
FLx2407: 94.3 in
87.6 in
Loader Lift Capacity (Full Height)
FLx2407: 1,450 lb
1100 lb
Loader Breakout Force
FLx2407: 2,288 lb
Not Published
Warranty Length & Coverage
5-year powertrain warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
