Massey Ferguson MF 1M.40 vs Bobcat CT2040 | Side-by-side comparison | ITC Resource Center
Compare Tractors

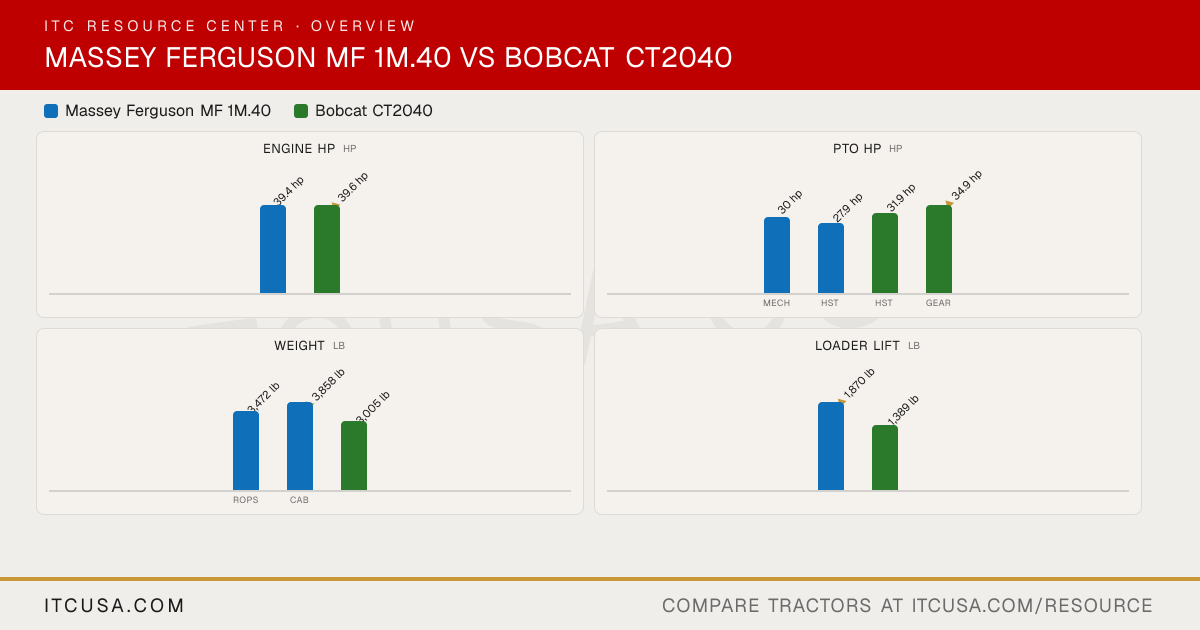

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey FergusonMF 1M.40
BobcatCT2040
Engine Manufacturer
Iseki
Daedong
Engine Model
Not Published
3H-TH4A
Engine Type
3-cylinder, turbocharged, liquid-cooled diesel
Diesel
No. of Cylinders
3
3
Displacement
111.4 in³
111.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
39.4 hp
39.6 hp
PTO Power
Mech: 30 hp; HST: 27.9 hp
HST: 31.9 hp; MST (gear): 34.9 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid cooled
Water-cooled
Air Cleaner
Not Published
Dry type, replaceable
Fuel System
Not Published
Common rail direct injection (CRDI)
Alternator
Not Published
75 A, 12 V
Pump Type
Two gear-type pumps
Not Published
Implement Flow
12.6 gpm
6.9 gpm
Steering Flow
7.0 gpm
4.5 gpm
Total Hydraulic Flow
19.6 gpm (12.6 + 7.0, computed)
11.4 gpm
Overall Hydraulic Pump Flow
19.6 gpm (12.6 + 7.0, computed)
11.4 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
None (rear hydraulics optional)
No. of Optional Remote Valves
Not Published
2 pairs
Fuel Tank Capacity
10.6 gal
9.0 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
7.8 qt
Transmission / Hydraulic System Capacity
Not Published
5.8 gal
Front Axle Fluid Capacity
Not Published
6.3 qt
PTO Type
Independent with SoftStart electronic modulation
Live
PTO Rear
540 rpm, 1.375 in
540 rpm
Mid-PTO Availability
Not Published
Optional: 1988 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity
2,800 lb
2271 lb
Hitch Lift Capacity (at 24”)
2,535 lb
1631 lb
Lift Control Type
Not Published
Hydraulic Position Control System
Transmission Type
Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
3-Range HST
No. of Speeds
Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
Infinite, 3 range
Max Travel Speed (Forward)
Not Published
14.0 mph
Max Travel Speed (Reverse)
Not Published
9.7 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
Not Published
Wet multi-disc
Seat Suspension & Adjustability
Not Published
Adjustable seat (standard)
Front Axle Type
Not Published
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1433 lb
Overall Length with 3-Point Hitch
122.0 in
120.9 in
Overall Width
67.5 in
62.4 in
Wheelbase
Not Published
65.7 in
Ground Clearance
14.4 in
11.7 in
Min. Turn Radius without Brakes
Not Published
96.5 in (with brake applied)
Height to Top of ROPS
99.2 in
92.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
91.3 in
Not Published
Tractor Weight (Base)
ROPS: 3,472 lb; Cab: 3,858 lb
3005 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
7-16
R1 Agricultural - Rear
Not Published
11.4-24
R3 Turf - Front
Not Published
27x8.5-15
R3 Turf - Rear
Not Published
41x14-20
R4 Industrial - Front
Not Published
25x8.5-14
R4 Industrial - Rear
Not Published
15-19.5
Quick Attach Loader System
Skid steer
Standard quick attach mounting system
Loader Model
FL2611
FL8
Loader Lift Height
FL2611: 100 in
99.6 in
Loader Lift Capacity (Full Height)
FL2611: 1,870 lb
1389 lb
Loader Breakout Force
FL2611: 2,950 lb
3285 lb
Warranty Length & Coverage
Not Published
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
