Massey Ferguson MF 1M.40 vs Kubota LX4020 | Side-by-side comparison | ITC Resource Center
Compare Tractors

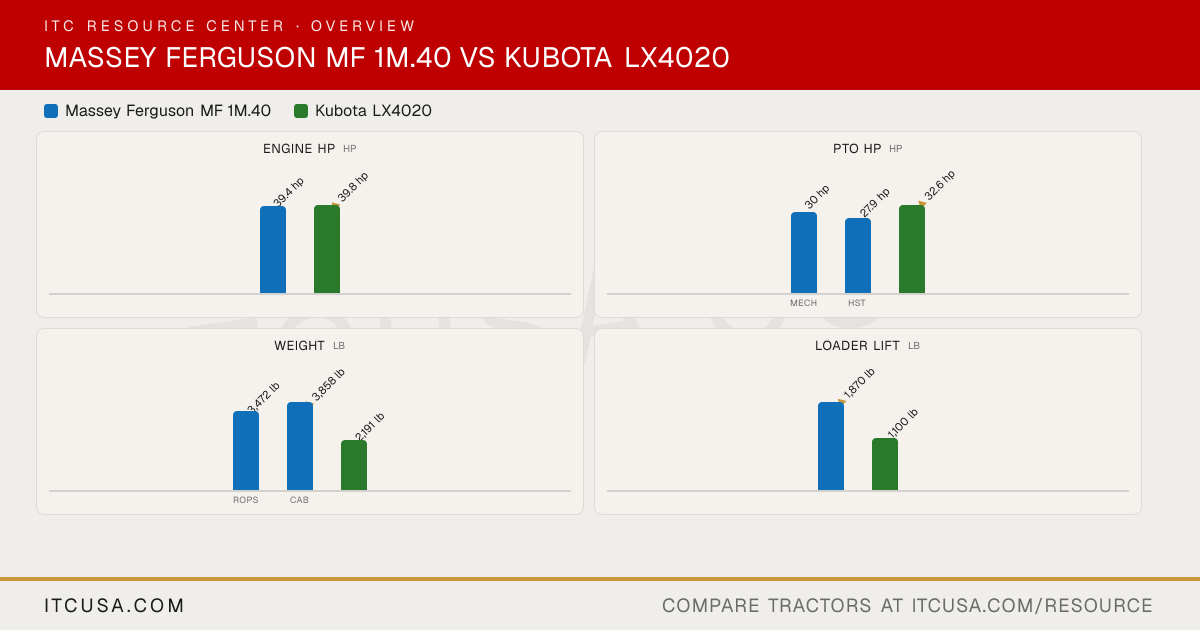

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey FergusonMF 1M.40
KubotaLX4020
Engine Manufacturer
Iseki
Kubota
Engine Model
Not Published
V1505-CR-TE5-D40R4
Engine Type
3-cylinder, turbocharged, liquid-cooled diesel
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders
3
4
Displacement
111.4 in³
91.4 in³
Rated Engine Speed
2600 rpm
2700 rpm
Engine Power (Gross)
39.4 hp
39.8 hp
PTO Power
Mech: 30 hp; HST: 27.9 hp
32.6 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Liquid cooled
Pressurized radiator
Air Cleaner
Not Published
6 in paper filter (with dual element)
Fuel System
Not Published
Direct injection
Alternator
Not Published
Not Published
Pump Type
Two gear-type pumps
Dual pump
Implement Flow
12.6 gpm
5.4 gpm
Steering Flow
7.0 gpm
4.1 gpm
Total Hydraulic Flow
19.6 gpm (12.6 + 7.0, computed)
9.5 gpm
Overall Hydraulic Pump Flow
19.6 gpm (12.6 + 7.0, computed)
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Not Published
Optional, up to 2
Fuel Tank Capacity
10.6 gal
8.5 gal
Coolant Capacity
Not Published
4.5 qt
Crankcase Capacity
Not Published
5.0 qt
Transmission / Hydraulic System Capacity
Not Published
5.5 gal
Front Axle Fluid Capacity
Not Published
4.8 qt
PTO Type
Independent with SoftStart electronic modulation
Independent
PTO Rear
540 rpm, 1.375 in
540 rpm
Mid-PTO Availability
Not Published
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2,800 lb
2535 lb
Hitch Lift Capacity (at 24”)
2,535 lb
1962 lb
Lift Control Type
Not Published
Position control valve
Transmission Type
Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)
Hydrostatic transmission
No. of Speeds
Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)
3 ranges
Max Travel Speed (Forward)
Not Published
17.0 mph
Max Travel Speed (Reverse)
Not Published
13.0 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Differential lock standard
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
Not Published
Multi-plate wet disk
Seat Suspension & Adjustability
Not Published
Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1100 lb
Overall Length with 3-Point Hitch
122.0 in
116.1 in
Overall Width
67.5 in
53.7 in
Wheelbase
Not Published
66.7 in
Ground Clearance
14.4 in
8.9 in
Min. Turn Radius without Brakes
Not Published
7.5 ft (with brake applied)
Height to Top of ROPS
99.2 in
88.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
91.3 in
85.6 in
Tractor Weight (Base)
ROPS: 3,472 lb; Cab: 3,858 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
Not Published
180/85D12
R1 Agricultural - Rear
Not Published
320/85D16
R3 Turf - Front
Not Published
24X8.50-14
R3 Turf - Rear
Not Published
13.6-16
R4 Industrial - Front
Not Published
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
Not Published
14-17.5 or 15-19.5
Quick Attach Loader System
Skid steer
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
FL2611
LA545
Loader Lift Height
FL2611: 100 in
87.6 in
Loader Lift Capacity (Full Height)
FL2611: 1,870 lb
1100 lb
Loader Breakout Force
FL2611: 2,950 lb
Not Published
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
