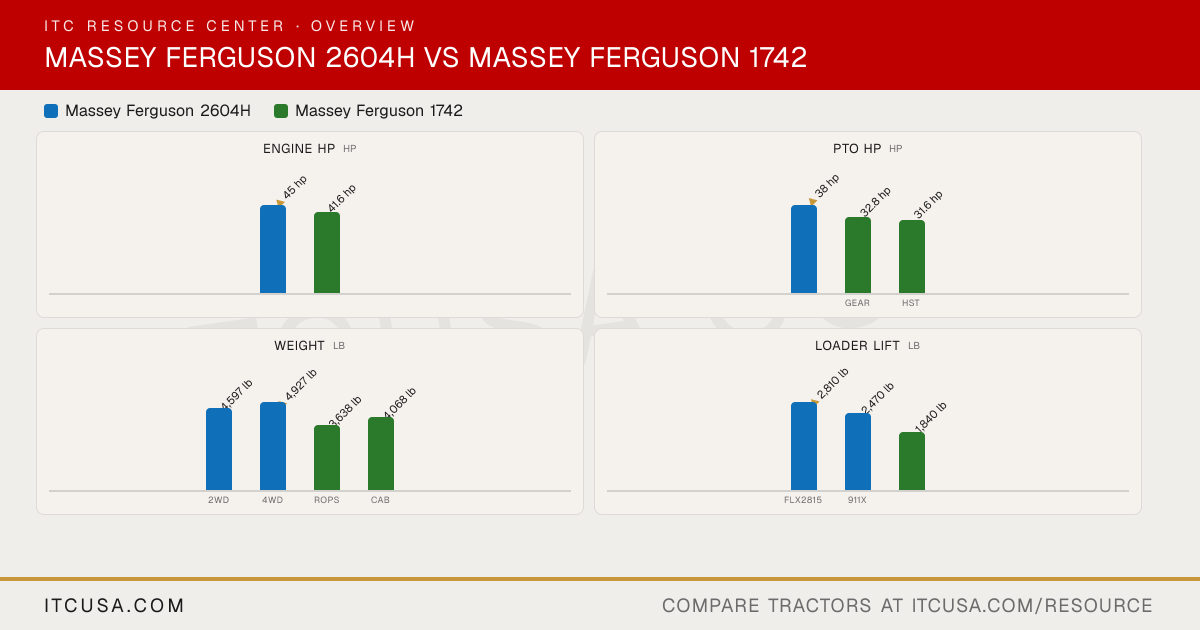

▶ EngineEngine Manufacturer Simpson Mitsubishi Engine Model SJV326 K38 Engine Type 3-cylinder, turbocharged, intercooled 3-cylinder turbocharged and intercooled diesel No. of Cylinders 3 3 Displacement 157.9 in³ 101 in³ Rated Engine Speed 2000 rpm 2500 rpm Engine Power (Gross) 45 hp 41.6 hp PTO Power 38 hp Gear: 32.8 hp; HST: 31.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Electronically controlled high-pressure common rail Common-rail, direct injection, electronic engine management Alternator Not Published Not Published ▶ HydraulicsPump Type Mark 1A scotch yoke piston pump Engine-driven gear-type pump Implement Flow Not Published 11.6 gpm Steering Flow Not Published 6.8 gpm Total Hydraulic Flow 15.7 gpm Not Published Overall Hydraulic Pump Flow 15.7 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 10.6 gpm 11.6 gpm No. of Standard Remote Valves One 1 No. of Optional Remote Valves Not Published Up to 3 ▶ Fluid CapacityFuel Tank Capacity 14.5 gal 14.5 gal Coolant Capacity 4 gal Not Published Crankcase Capacity 2.5 gal Not Published Transmission / Hydraulic System Capacity 10.5 gal Not Published Front Axle Fluid Capacity 4WD: 1.5 gal differential, plus 0.23 gal per wheel end Not Published ▶ PTO & HitchPTO Type Live Independent, electro-hydraulically engaged PTO Rear 540 rpm, 6-spline 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Not Published Optional, 2000 rpm Category, 3-Point Hitch Category I and II Category I Hitch Lift Capacity 3,747 lb Not Published Hitch Lift Capacity (at 24”) 2,204 lb 2,535 lb Lift Control Type Draft, position and response control Position control; draft control optional ▶ Transmission & DrivetrainTransmission Type 8F x 2R SideShift sliding gear 12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST No. of Speeds 8 forward and 2 reverse Power shuttle: 12F / 12R; Servo-HST: 3-range infinite Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry Wet multi-disc (power shuttle) Differential Lock & Limited Slip Options Mechanical engagement via right-side heel pedal Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Drop-axle rear with bull gear final drives Steering Hydrostatic steering with separate reservoir Power steering, tilt steering wheel Brakes Drum brakes Internal wet disc brakes, independent foot pedals Seat Suspension & Adjustability ReverseRise adjustable seat with fixed steering column Suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab) Front Axle Type 2WD: straight adjustable; 4WD: planetary reduction Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.6 in 64.2 in Wheelbase 2WD: 80.7 in; 4WD: 81.5 in 71.1 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 90.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 91.3 in Overall Length 2WD: 138 in; 4WD: 139 in 130.7 in ▶ WeightTractor Weight (Base) 2WD: 4,597 lb; 4WD: 4,927 lb ROPS: 3,638 lb; Cab: 4,068 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD standard (ag): 6x16 front, 12.4x28 rear; 2WD optional (ag): 7.5x16 front, 13.6x28 rear; 4WD standard (ag): 10.5/80-18 front, 12.4x28 rear Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/75R16 front, 400/80R24 rear) R1 Agricultural - Front 2WD: 6x16 (7.5x16 optional); 4WD: 10.5/80-18 8-16 R1 Agricultural - Rear 2WD: 12.4x28 (13.6x28 optional); 4WD: 12.4x28 12.4-24 (13.6-24 optional) R3 Turf - Front Not Published 27x8.50-15 R3 Turf - Rear Not Published 41x14.00-20 R4 Industrial - Front Not Published 10-16.5 or 250/75R16 R4 Industrial - Rear Not Published 17.5L-24 or 400/80R24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer style coupling DL125: universal skid steer or exclusive compact quick-attach implement tool carrier Loader Model FLx2815 (2WD); 911X (4WD) DL125 Loader Lift Height FLx2815: 111 in; 911X: 114 in DL125: 102.4 in (at pivot pin) Loader Lift Capacity (Full Height) FLx2815: 2,810 lb (at pivot pin); 911X: 2,470 lb (at pivot pins) DL125: 1,840 lb (at pivot pin, full height) Loader Breakout Force FLx2815: 4,240 lb (at pivot pin) DL125: 2,190 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 5-year powertrain warranty
