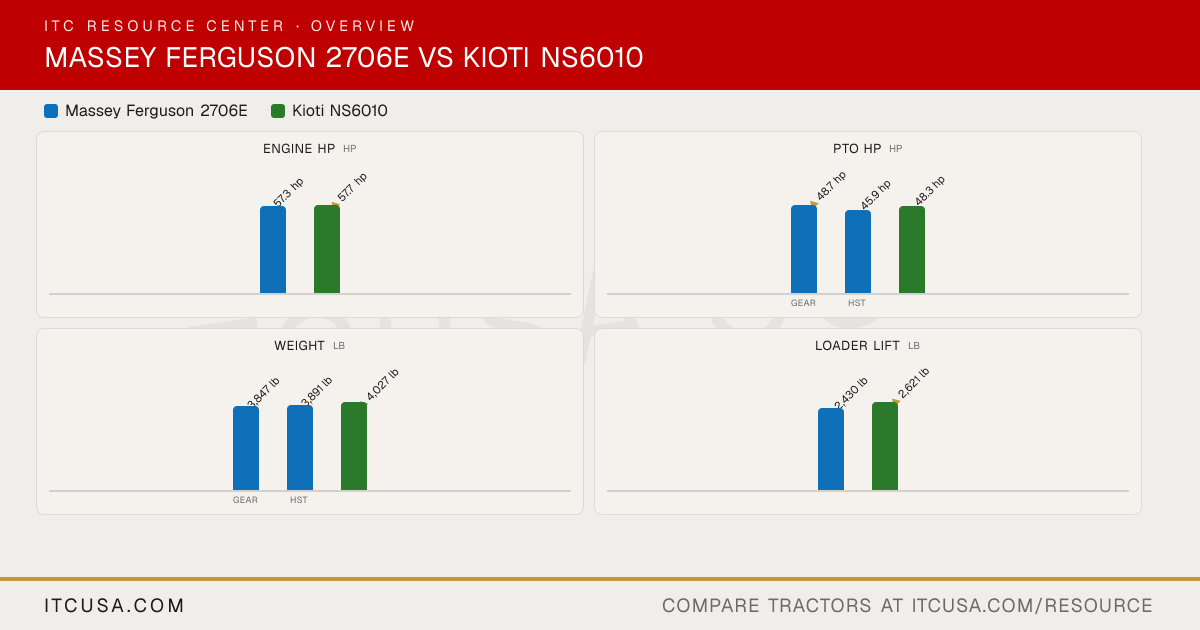

▶ EngineEngine Manufacturer Shibaura KIOTI (Daedong) Engine Model N4LDI-TA 3HT-S4TM58A Engine Type 4-cylinder, turbocharged, liquid-cooled diesel KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI No. of Cylinders 4 3 Displacement 135.2 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 57.3 hp 57.7 hp PTO Power Gear: 48.7 hp; HST: 45.9 hp 48.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Primary and secondary elements Dry type element Fuel System Electronically controlled high-pressure common rail Common Rail Direct Injection (CRDI) Alternator 90 A Not Published ▶ HydraulicsPump Type Gear-type single pump Gear Implement Flow Not Published 9.61 gpm Steering Flow Not Published 6.87 gpm Total Hydraulic Flow 12.4 gpm 16.5 gpm Overall Hydraulic Pump Flow 12.4 gpm 16.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 1 No. of Optional Remote Valves 1 factory-installed; up to 3 field-installed 1 ▶ Fluid CapacityFuel Tank Capacity 14 gal 13.2 gal Coolant Capacity 1.66 gal 2.03 gal Crankcase Capacity 1.53 gal 1.95 gal Transmission / Hydraulic System Capacity 10.04 gal 11.36 gal Front Axle Fluid Capacity 2.21 gal 2.25 gal ▶ PTO & HitchPTO Type Independent, electro-hydraulically engaged Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability No mid-PTO Optional (2,000 rpm) Category, 3-Point Hitch Category I and II Category II Hitch Lift Capacity Not Published 2,940 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,493 lb Lift Control Type Not Published Position with Draft Control ▶ Transmission & DrivetrainTransmission Type Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST Synchro Shuttle No. of Speeds Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) 12x12 Max Travel Speed (Forward) Not Published 16.7 mph Max Travel Speed (Reverse) Not Published 14.8 mph Clutch Dry single-disc Dry Type Single Stage Differential Lock & Limited Slip Options Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal) Mechanical differential lock: rear standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Internal wet disc, 2 pedals (Gear: right hand; HST: left hand) Wet disc type Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt Deluxe suspension seat Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133 in 136.4 in Overall Width 74 in 67.1 in Wheelbase 78 in 75.5 in Ground Clearance Not Published 13.4 in Min. Turn Radius without Brakes Not Published 11.0 ft (with brake applied) Height to Top of ROPS 104 in 98.4 in Height to Top of ROPS (folded) 80 in Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Gear: 3,847 lb; HST: 3,891 lb 4,027 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5x16 8-16 R1 Agricultural - Rear 13.6x28; 16.9x24 13.6-24 R3 Turf - Front 27x10.50-15 29-12.5-15 R3 Turf - Rear 44x18.00-20 21.5L-16.1 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 17.5L-24 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System L135E: optional skid steer tool carrier Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Model L135E KL5810 Loader Lift Height L135E: 110.2 in KL5810: 106.3 in (to pivot pin) Loader Lift Capacity (Full Height) L135E: 2,430 lb KL5810: 2,621 lb (at pivot pin, max height) Loader Breakout Force L135E: 2,870 lb KL5810: 3,896 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor ▶ ITC Company AccessoriesAccessories that fit None tagged yet
