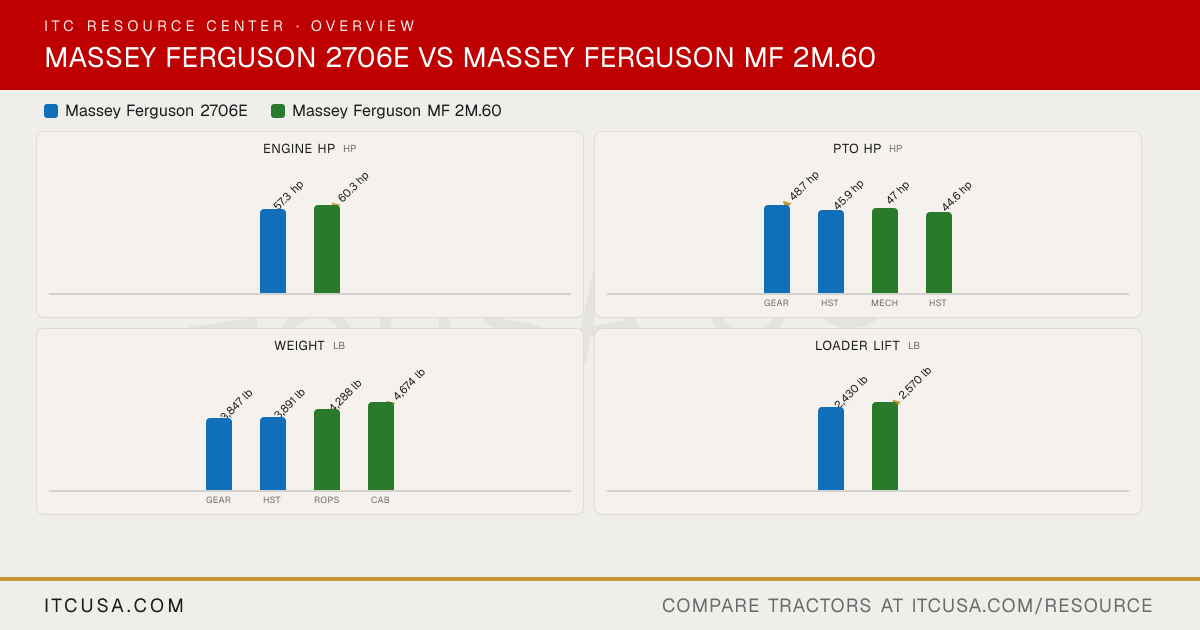

▶ EngineEngine Manufacturer Shibaura Iseki Engine Model N4LDI-TA Not Published Engine Type 4-cylinder, turbocharged, liquid-cooled diesel 4-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement 135.2 in³ 148.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 57.3 hp 60.3 hp PTO Power Gear: 48.7 hp; HST: 45.9 hp Mech: 47 hp; HST: 44.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Primary and secondary elements Not Published Fuel System Electronically controlled high-pressure common rail Common rail direct injection with electronic engine management Alternator 90 A Not Published ▶ HydraulicsPump Type Gear-type single pump Two gear-type pumps Implement Flow Not Published Mech: 12.7 gpm; HST: 12.6 gpm Steering Flow Not Published 7.1 gpm Total Hydraulic Flow 12.4 gpm Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) Overall Hydraulic Pump Flow 12.4 gpm Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 Not Published No. of Optional Remote Valves 1 factory-installed; up to 3 field-installed Not Published ▶ Fluid CapacityFuel Tank Capacity 14 gal 14.0 gal Coolant Capacity 1.66 gal 7.61 qt Crankcase Capacity 1.53 gal 7.82 qt Transmission / Hydraulic System Capacity 10.04 gal Mech: 11.35 gal; HST: 9.25 gal Front Axle Fluid Capacity 2.21 gal 9 qt ▶ PTO & HitchPTO Type Independent, electro-hydraulically engaged Independent with SoftStart electronic modulation PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm, 1.375 in Mid-PTO Availability No mid-PTO Not Published Category, 3-Point Hitch Category I and II Category I & II Hitch Lift Capacity Not Published Mech: 3,747 lb; HST: 3,483 lb Hitch Lift Capacity (at 24”) 2,425 lb Mech: 3,307 lb; HST: 3,086 lb Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST Mech: 12x12 power shuttle; HST: 3-range Servo-HST No. of Speeds Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry single-disc Not Published Differential Lock & Limited Slip Options Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Internal wet disc, 2 pedals (Gear: right hand; HST: left hand) Not Published Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt Not Published Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives Four-wheel drive Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 133 in Mech: 136.2 in; HST: 132.3 in Overall Width 74 in 71.3 in Wheelbase 78 in Not Published Ground Clearance Not Published Mech: 11.6 in; HST: 14.0 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 104 in 103.1 in Height to Top of ROPS (folded) 80 in Not Published Height to Top of Cab Model Not Published 93.3 in ▶ WeightTractor Weight (Base) Gear: 3,847 lb; HST: 3,891 lb ROPS: 4,288 lb; Cab: 4,674 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear Not Published R1 Agricultural - Front 9.5x16 Not Published R1 Agricultural - Rear 13.6x28; 16.9x24 Not Published R3 Turf - Front 27x10.50-15 Not Published R3 Turf - Rear 44x18.00-20 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 17.5L-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System L135E: optional skid steer tool carrier Skid steer Loader Model L135E FL2814 Loader Lift Height L135E: 110.2 in FL2814: 111 in Loader Lift Capacity (Full Height) L135E: 2,430 lb FL2814: 2,570 lb Loader Breakout Force L135E: 2,870 lb FL2814: 3,910 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
