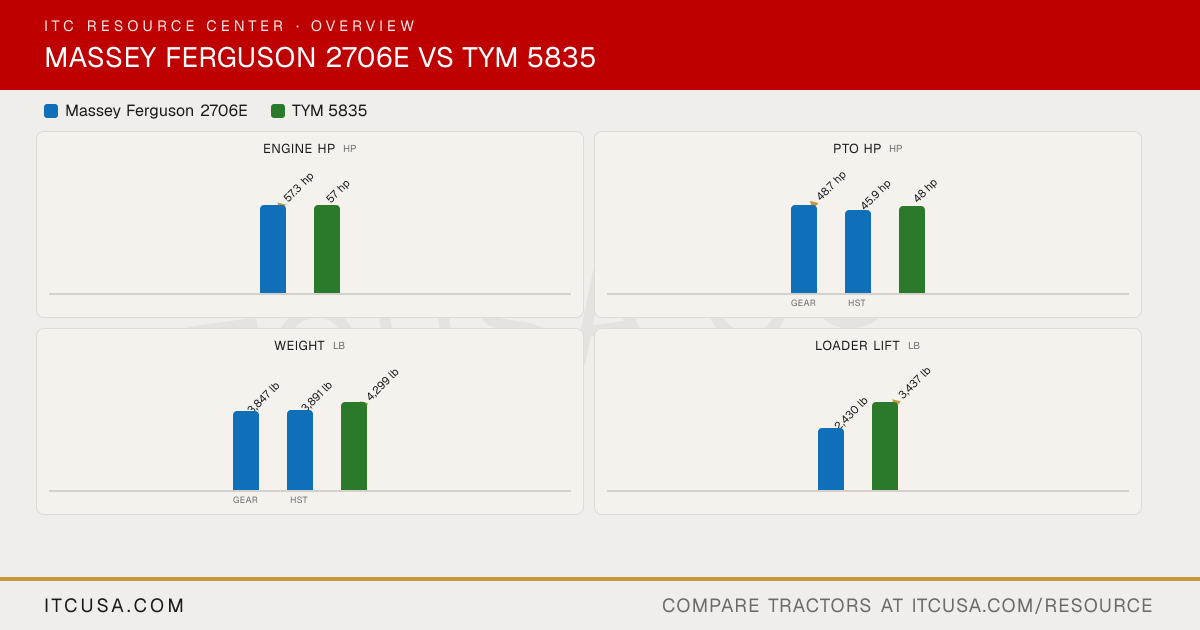

▶ EngineEngine Manufacturer Shibaura TYM Engine Model N4LDI-TA T2300T3 Engine Type 4-cylinder, turbocharged, liquid-cooled diesel 4-cylinder, turbocharged diesel No. of Cylinders 4 4 Displacement 135.2 in³ 139.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 57.3 hp 57 hp PTO Power Gear: 48.7 hp; HST: 45.9 hp 48 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Primary and secondary elements Dry element Fuel System Electronically controlled high-pressure common rail IDI (indirect injection) Alternator 90 A 70 A, 12 V ▶ HydraulicsPump Type Gear-type single pump Single gear pump Implement Flow Not Published 11.4 gpm Steering Flow Not Published 5.2 gpm Total Hydraulic Flow 12.4 gpm 16.5 gpm Overall Hydraulic Pump Flow 12.4 gpm 16.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Loader: 4; Rear: 2 No. of Optional Remote Valves 1 factory-installed; up to 3 field-installed Not Published ▶ Fluid CapacityFuel Tank Capacity 14 gal 15.3 gal Coolant Capacity 1.66 gal 6.2 qt Crankcase Capacity 1.53 gal 4.8 qt Transmission / Hydraulic System Capacity 10.04 gal 11.6 gal Front Axle Fluid Capacity 2.21 gal 6.8 qt ▶ PTO & HitchPTO Type Independent, electro-hydraulically engaged Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability No mid-PTO Not Published Category, 3-Point Hitch Category I and II Category II Hitch Lift Capacity Not Published 4,409 lb Hitch Lift Capacity (at 24”) 2,425 lb 3,748 lb Lift Control Type Not Published Mechanical ▶ Transmission & DrivetrainTransmission Type Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST Power shuttle No. of Speeds Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) F12 x R12 Max Travel Speed (Forward) Not Published 19.9 mph Max Travel Speed (Reverse) Not Published 18.9 mph Clutch Dry single-disc Wet, multi-disc Differential Lock & Limited Slip Options Mechanical engagement (Gear: right-side heel pedal; HST: left-side heel pedal) Standard differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Internal wet brakes, 2 pedals (Gear: right-hand; HST: left-hand) Wet, multi-disc Seat Suspension & Adjustability Suspended vinyl seat with retractable seatbelt Suspension seat Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives 4WD (selectable 2WD/4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 74 in 68.9 in Wheelbase 78 in 78.7 in Ground Clearance Not Published 18.1 in Min. Turn Radius without Brakes Not Published L: 124.4 in; R: 124.0 in Height to Top of ROPS 104 in 102.8 in Height to Top of ROPS (folded) 80 in Not Published Height to Top of Cab Model Not Published Not Published Overall Length 133 in (with 3-point hitch) 136.4 in (with 3-point hitch) ▶ WeightTractor Weight (Base) Gear: 3,847 lb; HST: 3,891 lb 4,299 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear R1 Agricultural, R4 Industrial R1 Agricultural - Front 9.5x16 9.5-20 R1 Agricultural - Rear 13.6x28; 16.9x24 14.9-28 R3 Turf - Front 27x10.50-15 Not Published R3 Turf - Rear 44x18.00-20 Not Published R4 Industrial - Front 10-16.5 10.5/80-18 R4 Industrial - Rear 17.5L-24 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System L135E: optional skid steer tool carrier BL350: Quick attach mechanism Loader Model L135E BL350 Loader Lift Height L135E: 110.2 in BL350: 117.5 in Loader Lift Capacity (Full Height) L135E: 2,430 lb (at pivot pin) BL350: 3,437 lb (at pivot pin) Loader Breakout Force L135E: 2,870 lb BL350: 4,742 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months ▶ ITC Company AccessoriesAccessories that fit None tagged yet
