Compare Tractors

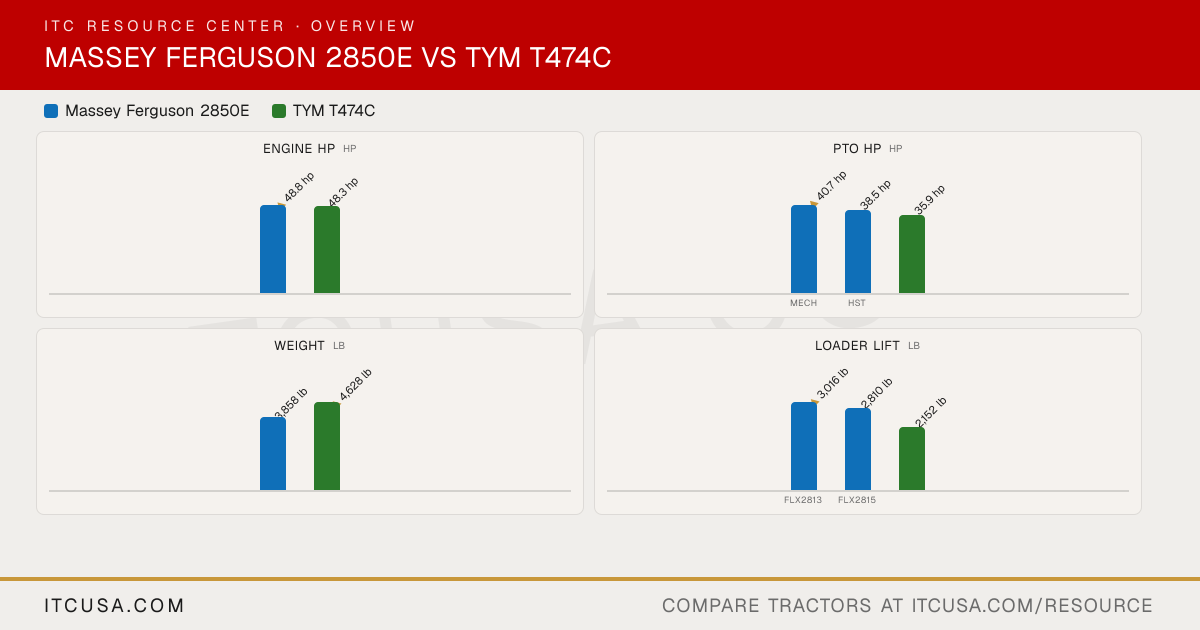

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson2850E
TYMT474C
Engine Manufacturer
Iseki
TYM
Engine Model
Not Published
n/a
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
148.6 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48.8 hp
48.3 hp
PTO Power
Mech: 40.7 hp; HST: 38.5 hp
35.9 hp
Engine Emissions Constraints
Tier 4
Stage V
Cooling System Type
Liquid cooled
Not Published
Air Cleaner
Not Published
Single dry
Fuel System
Not Published
IDI
Alternator
Not Published
70 A, 12 V
Pump Type
Two gear-type pumps for steering and 3-point/remotes
Dual gear pump
Implement Flow
12.6 gpm
7.7 gpm
Steering Flow
7.0 gpm
4.2 gpm
Total Hydraulic Flow
19.6 gpm (12.6 + 7.0, computed)
11.9 gpm
Overall Hydraulic Pump Flow
19.6 gpm (12.6 + 7.0, computed)
11.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
1
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
14 gal
9.0 gal
Coolant Capacity
Not Published
6.9 qt
Crankcase Capacity
Not Published
6.8 qt
Transmission / Hydraulic System Capacity
Not Published
8.5 gal
Front Axle Fluid Capacity
Not Published
8.7 qt
PTO Type
Independent with SoftStart electronic modulation
Independent
PTO Rear
540 rpm (1-3/8 in)
540 rpm
Mid-PTO Availability
Not Published
Available (Mid-PTO kit)
Category, 3-Point Hitch
Category I and II
Category I
Hitch Lift Capacity
2,645 lb
2,689.6 lb
Hitch Lift Capacity (at 24”)
2,425 lb
1,764 lb
Lift Control Type
Not Published
Position control
Transmission Type
8x8 synchro shuttle or 3-range hydrostatic
Mechanical
No. of Speeds
Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
F12 x R12
Max Travel Speed (Forward)
Not Published
14.9 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Dry single plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Spring-cushioned seat
Not Published
Front Axle Type
Solid cast front axle
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
132.8 in
131 in
Overall Width
70.1 in
54.5 in
Wheelbase
Not Published
69.7 in
Ground Clearance
15 in
12.8 in
Min. Turn Radius without Brakes
Not Published
117.5 in
Height to Top of ROPS
103.8 in
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Applicable
Height to Top of Cab Model
Not Published
92.5 in
Tractor Weight (Base)
3,858 lb
n/a
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Published
4,628 lb
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear
Not Published
Farm Specialist 12.4-24 NHS TL 6PR
R3 Turf - Front
Not Published
Multi-Trac CS 27x10.5-15 NHS TL 4PR
R3 Turf - Rear
Not Published
12.5x20
R4 Industrial - Front
Not Published
Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear
Not Published
Xtra Grip 43x16.00-20 NHS TL 6PR
Quick Attach Loader System
FLx2813: skid steer quick attach; FLx2815: pin-type or skid steer
TX47: Quick attachment (Skid/Euro type)
Loader Model
FLx2813; FLx2815
n/a
Loader Lift Height
111 in (FLx2813 and FLx2815 loaders)
105.6 in
Loader Lift Capacity (Full Height)
FLx2813: 3,016 lb; FLx2815: 2,810 lb
2,152 lb
Loader Breakout Force
FLx2813: 4,176 lb; FLx2815: 4,240 lb
3,198 lb
Warranty Length & Coverage
5-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
