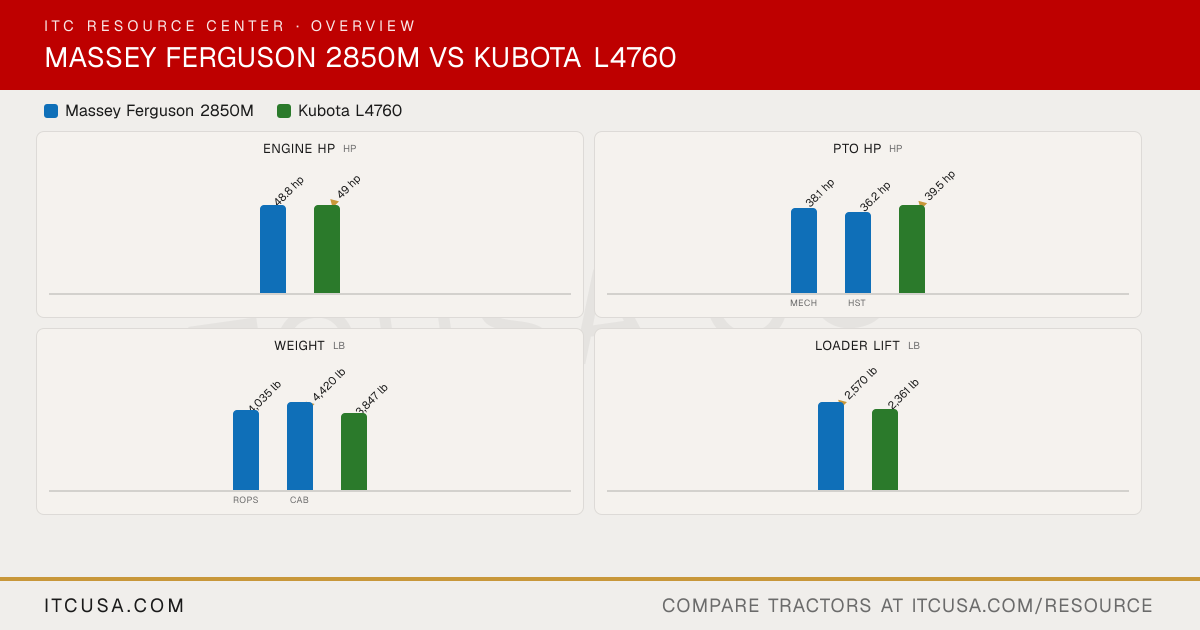

▶ EngineEngine Manufacturer Iseki Kubota Engine Model Iseki E4FH V2403-CR-E4-GL5 Engine Type 4-cylinder, turbocharged, liquid-cooled diesel Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated No. of Cylinders 4 4 Displacement 148.6 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48.8 hp 49 hp PTO Power Mech: 38.1 hp; HST: 36.2 hp 39.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Dry Dry paper, dual element Fuel System Common rail direct injection Electronic CRS (Common Rail System) Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Tandem pump - gear type Implement Flow 12.6 gpm 9.4 gpm Steering Flow 7 gpm 4.7 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7, computed) 14.1 gpm Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7, computed) 14.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None standard (up to 3 optional) No. of Optional Remote Valves Not Published Optional, up to 3 (double-acting valve or float detent valve options, any position) ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 13.5 gal Coolant Capacity 7.61 qt 8.7 qt Crankcase Capacity 7.82 qt 8.7 qt Transmission / Hydraulic System Capacity Power Shuttle: 10.04 gal; Hydrostatic: 9.25 gal 11.4 gal Front Axle Fluid Capacity 9 qt 8.9 qt ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Live independent (hydraulic clutch) PTO Rear 540 rpm (1-3/8 in) 540 rpm @ 2475 engine rpm Mid-PTO Availability Optional, 2,000 rpm Optional Category, 3-Point Hitch Category I and II SAE Category 1 Hitch Lift Capacity 3,483 lb 3,858 lb Hitch Lift Capacity (at 24”) 3,086 lb 2,756 lb Lift Control Type Position control with optional draft control Position control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle or 3-range hydrostatic Hydrostatic No. of Speeds Power Shuttle: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) 3-range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) Not Published 16.8 mph Max Travel Speed (Reverse) Not Published 15.1 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Wet disc type, mechanically activated Seat Suspension & Adjustability Open station: vinyl-clad seat; standard cab: spring-suspension seat with armrests; deluxe cab: air-ride seat with armrests Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Front Axle Type Solid cast front axle 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.3 in 129.5 in Overall Width 70.1 in 66.5 in Wheelbase Not Published 74.6 in Ground Clearance 14.0 in 14.4 in Min. Turn Radius without Brakes Not Published 8.9 ft (with brake applied) Height to Top of ROPS 102.4 in 97.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in Not Applicable ▶ WeightTractor Weight (Base) ROPS: 4,035 lb; Cab: 4,420 lb 3847 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial R1 Agricultural - Front 9.5-16 8.3-16 R1 Agricultural - Rear 13.6-28 standard; 16.9-24 optional 14.9-24 R3 Turf - Front 27x10.50-15 29x12.50-15 R3 Turf - Rear 44x18.00-20 44x18-20 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 14.9-24; 17.5L-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System FL2814: pin-type or skid steer Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Loader Model FL2814 LA1055 Loader Lift Height FL2814: 111 in 112.7 in Loader Lift Capacity (Full Height) FL2814: 2,570 lb 2361 lb Loader Breakout Force FL2814: 3,910 lb 3171 lb (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
