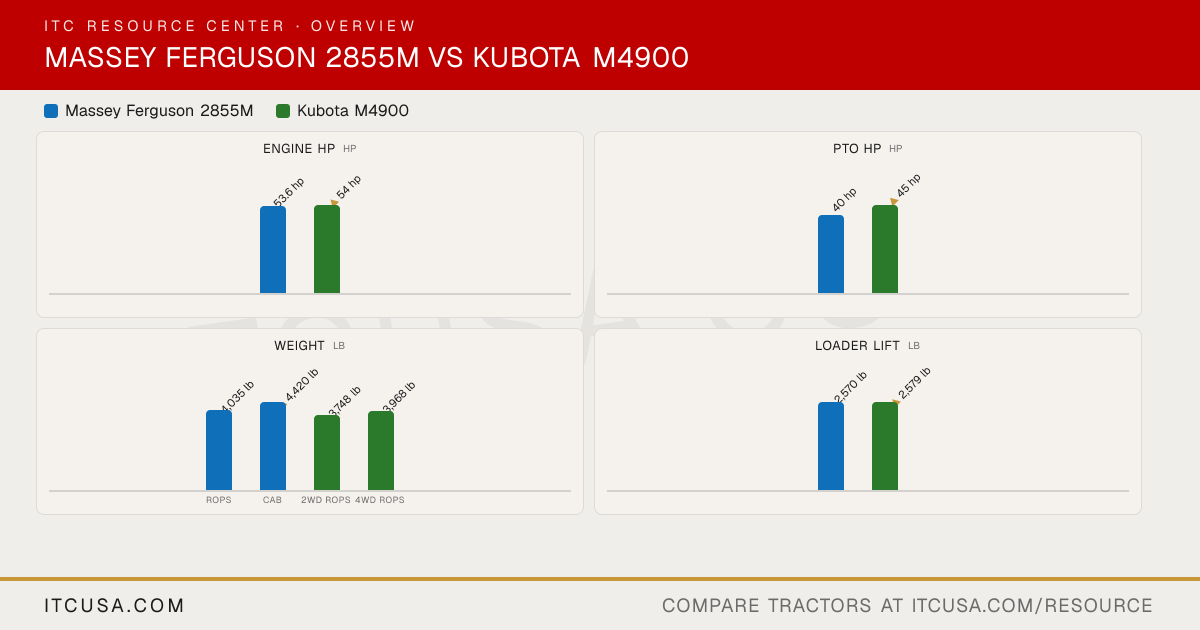

▶ EngineEngine Manufacturer Iseki Kubota Engine Model E4FH F2803-ELA Engine Type 4-cylinder, turbocharged, liquid-cooled diesel Vertical, water-cooled, 4-cycle diesel, 5-cylinder No. of Cylinders 4 5 Displacement 148.6 in³ 167.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 53.6 hp 54 hp PTO Power 40 hp 45 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Water-cooled Air Cleaner Dry Dual dry elements Fuel System Common rail direct injection Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Not Published Implement Flow 12.6 gpm Not Published Steering Flow 7 gpm Not Published Total Hydraulic Flow 19.6 gpm (12.6 + 7, computed) 17.1 gpm Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 14.0 gal ROPS: 17.2 gal; Cab: 25.1 gal Coolant Capacity 7.61 qt 7.7 qt Crankcase Capacity 7.82 qt 8.5 qt Transmission / Hydraulic System Capacity 10.04 gal Not Published Front Axle Fluid Capacity 9 qt Not Published ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Live PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category I and II Category II/I Hitch Lift Capacity 3,483 lb 4,200 lb Hitch Lift Capacity (at 24”) 3,086 lb 3,307 lb Lift Control Type Not Published Position, draft and mix control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle Synchronized shuttle, 8F/8R (12F/12R with creeper) No. of Speeds 12 forward and 12 reverse 8F/8R (12F/12R with creeper) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Mechanical wet disc Seat Suspension & Adjustability Open station: vinyl-clad seat; standard cab: spring-suspension seat with armrests; upgraded cab: air-suspension seat with armrests Not Published Front Axle Type Solid cast front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 70.1 in 67.2 in (minimum) Wheelbase Not Published ROPS: 78.7 in; Cab: 81.7 in Ground Clearance 14.0 in 16.9 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.4 in 93.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in 98.1 in Overall Length 132.3 in 2WD ROPS: 137.6 in; 4WD ROPS: 134.1 in; 2WD cab: 140.6 in; 4WD cab: 137.1 in ▶ WeightTractor Weight (Base) ROPS: 4,035 lb; Cab: 4,420 lb 2WD ROPS: 3,748 lb; 4WD ROPS: 3,968 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Standard: 6.5-16 front (2WD), 9.5-22 front (4WD), 14.9-28 rear R1 Agricultural - Front 9.5-16 8.3-24 R1 Agricultural - Rear 13.6-28 standard; 16.9-24 optional 14.9-28 R3 Turf - Front 27x10.50-15 2WD: 9.00-10; 4WD: 29x12.5-15 R3 Turf - Rear 44x18.00-20 21.5L-16.1 R3 R4 Industrial - Front 10-16.5 12.5/80-18 R4 R4 Industrial - Rear 14.9-24; 17.5L-24 16.9-24 R4 ▶ Loader & AttachmentsQuick Attach Loader System FL2814: skid steer quick attach Not Published Loader Model FL2814 LA1002 Loader Lift Height FL2814: 111 in (at pivot pin) LA1002: 115.6 in Loader Lift Capacity (Full Height) FL2814: 2,570 lb (at pivot pin) LA1002: 2,579 lb (at pivot pin) Loader Breakout Force FL2814: 3,910 lb (at pivot pin) LA1002: 3,330 lbf ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty Not Published
