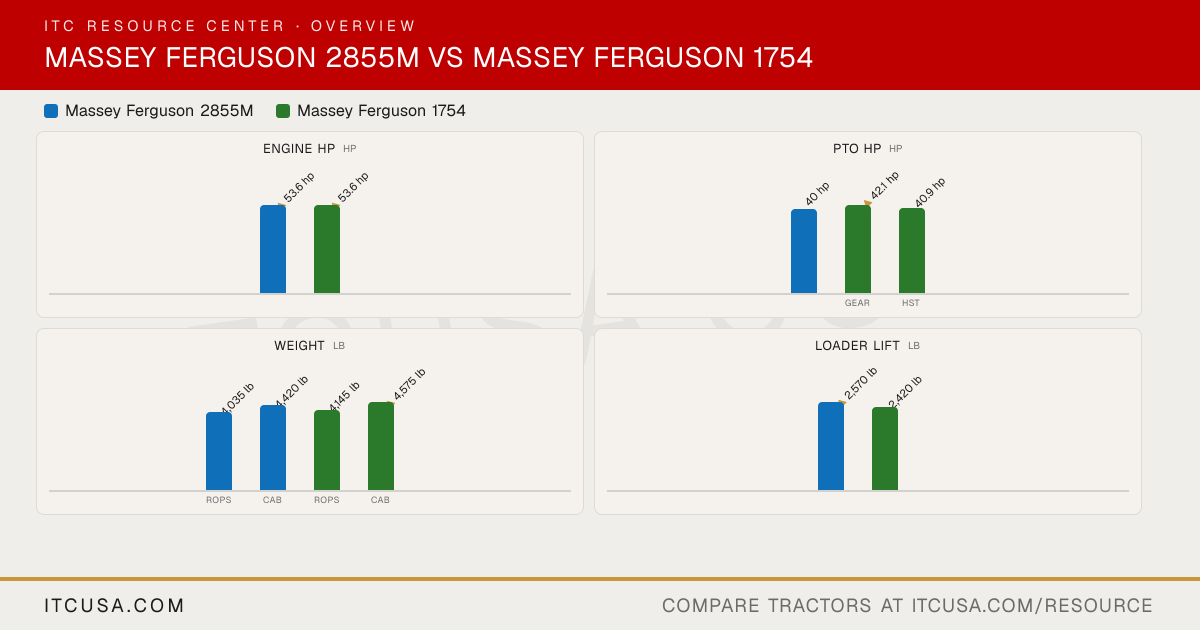

▶ EngineEngine Manufacturer Iseki Mitsubishi Engine Model E4FH K39 Engine Type 4-cylinder, turbocharged, liquid-cooled diesel 4-cylinder turbocharged and intercooled diesel No. of Cylinders 4 4 Displacement 148.6 in³ 134.7 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 53.6 hp 53.6 hp PTO Power 40 hp Gear: 42.1 hp; HST: 40.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Common rail direct injection Common-rail, direct injection, electronic engine management Alternator Not Published Not Published ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Engine-driven gear-type pump Implement Flow 12.6 gpm 11.6 gpm Steering Flow 7 gpm 6.8 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7, computed) Not Published Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.6 gpm No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published Up to 3 ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 14.5 gal Coolant Capacity 7.61 qt Not Published Crankcase Capacity 7.82 qt Not Published Transmission / Hydraulic System Capacity 10.04 gal Not Published Front Axle Fluid Capacity 9 qt Not Published ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Independent, electro-hydraulically engaged PTO Rear 540 rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional, 2000 rpm Optional, 2000 rpm Category, 3-Point Hitch Category I and II Category I Hitch Lift Capacity 3,483 lb Not Published Hitch Lift Capacity (at 24”) 3,086 lb 3,086 lb Lift Control Type Not Published Position control; draft control optional ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle 12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST No. of Speeds 12 forward and 12 reverse Power shuttle: 12F / 12R; Servo-HST: 3-range infinite Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet multi-disc (power shuttle) Differential Lock & Limited Slip Options Not Published Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Drop-axle rear with bull gear final drives Steering Power steering Power steering, tilt steering wheel Brakes Wet disc Internal wet disc brakes, independent foot pedals Seat Suspension & Adjustability Open station: vinyl-clad seat; standard cab: spring-suspension seat with armrests; upgraded cab: air-suspension seat with armrests Suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab) Front Axle Type Solid cast front axle Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 70.1 in 65.4 in Wheelbase Not Published 77.2 in Ground Clearance 14.0 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.4 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in 92.9 in Overall Length 132.3 in 132.3 in ▶ WeightTractor Weight (Base) ROPS: 4,035 lb; Cab: 4,420 lb ROPS: 4,145 lb; Cab: 4,575 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Ag: 9.5x16 front, 13.6x28 rear (16.9x24 optional); turf: 27x10.50-15 front, 44x18.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/80R16 front, 360/80R28 rear) R1 Agricultural - Front 9.5-16 9.5-16 R1 Agricultural - Rear 13.6-28 standard; 16.9-24 optional 13.6-28 (16.9-24 optional) R3 Turf - Front 27x10.50-15 27x10.50-15 R3 Turf - Rear 44x18.00-20 44x18.00-20 R4 Industrial - Front 10-16.5 10-16.5 or 250/80R16 R4 Industrial - Rear 14.9-24; 17.5L-24 17.5L-24 or 360/80R28 ▶ Loader & AttachmentsQuick Attach Loader System FL2814: skid steer quick attach DL135: universal skid steer or exclusive compact quick-attach implement tool carrier Loader Model FL2814 DL135 Loader Lift Height FL2814: 111 in (at pivot pin) DL135: 110.2 in (at pivot pin) Loader Lift Capacity (Full Height) FL2814: 2,570 lb (at pivot pin) DL135: 2,420 lb (at pivot pin, full height) Loader Breakout Force FL2814: 3,910 lb (at pivot pin) DL135: 2,860 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty 5-year powertrain warranty
