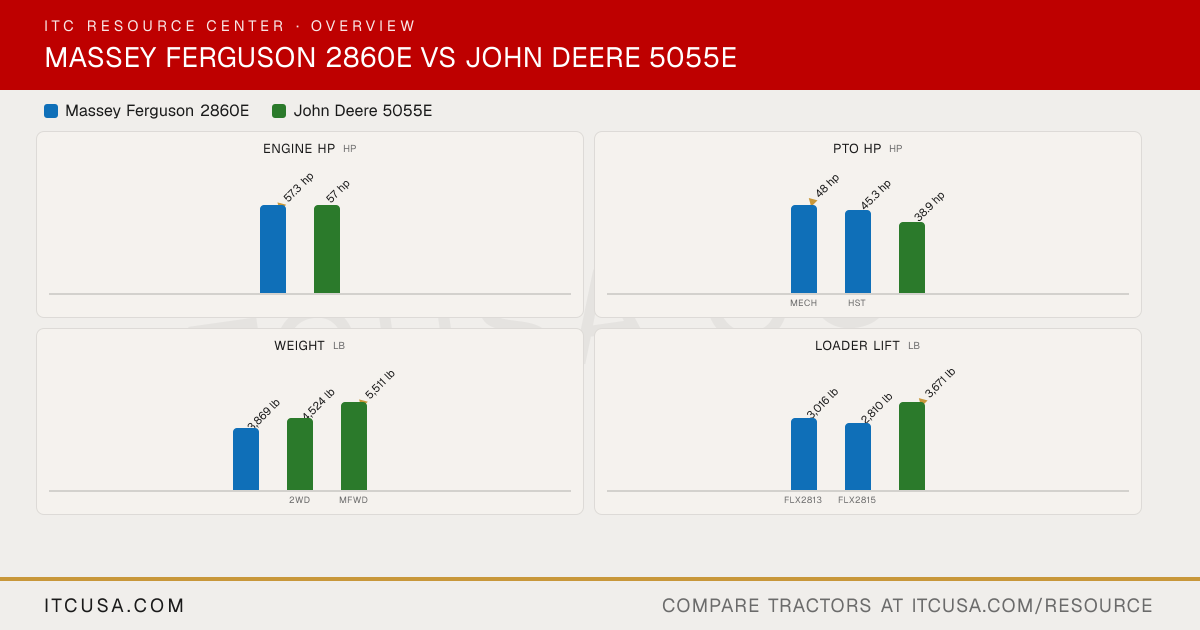

▶ EngineEngine Manufacturer Iseki John Deere Engine Model Not Published PowerTech 3029H Engine Type 4-cylinder, turbocharged, liquid-cooled diesel Diesel, turbocharged, liquid-cooled No. of Cylinders 4 3 Displacement 148.6 in³ 179 in³ Rated Engine Speed 2600 rpm 2100 rpm Engine Power (Gross) 57.3 hp 57 hp PTO Power Mech: 48 hp; HST: 45.3 hp 38.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Not Published Two paper elements Fuel System Not Published Not Published Alternator Not Published 40 A ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Not Published Implement Flow 12.6 gpm 11.4 gpm Steering Flow 7.0 gpm 6.8 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7.0, computed) 18.2 gpm Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7.0, computed) 18.2 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity 14 gal OOS: 18.0 gal; Cab: 21.6 gal Coolant Capacity Not Published 10 qt Crankcase Capacity Not Published 9 qt Transmission / Hydraulic System Capacity Not Published 10.3 gal Front Axle Fluid Capacity Not Published 4.8 qt ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation OOS: Independent, mechanical actuation; Cab: Independent, mechanical or electrohydraulic actuation PTO Rear 540 rpm (1-3/8 in) 540 rpm (540E optional with PowrReverser) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I and II Category 2, convertible to 1 Hitch Lift Capacity 2,645 lb Not Published Hitch Lift Capacity (at 24”) 2,425 lb 3,192 lb Lift Control Type Not Published Position control with top link draft sensing ▶ Transmission & DrivetrainTransmission Type 8x8 synchro shuttle or 3-range hydrostatic SyncShuttle (standard); PowrReverser (optional) No. of Speeds Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser Differential Lock & Limited Slip Options Not Published Rear diff lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc Hydraulic wet disc brakes Seat Suspension & Adjustability Spring-cushioned seat Not Published Front Axle Type Solid cast front axle 2WD or MFWD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.8 in 137.8 in Overall Width 70.1 in 57.3 in Wheelbase Not Published 80.7 in Ground Clearance 15 in 2WD: 18.8 in; MFWD: 13.4 in Min. Turn Radius without Brakes Not Published 138 in Height to Top of ROPS 103.8 in 96.4 in Height to Top of ROPS (folded) Not Published 77.1 in Height to Top of Cab Model Not Published 94.3 in ▶ WeightTractor Weight (Base) 3,869 lb 2WD: 4,524 lb; MFWD: 5,511 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 7,054 lb ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 2WD: 7.5-16; MFWD: 9.5-24 R1 Agricultural - Rear Not Published 14.9-28 R3 Turf - Front Not Published 9.5-16 R3 Turf - Rear Not Published 21.5L-16.1 R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System FLx2813: skid steer quick attach; FLx2815: pin-type or skid steer H240 (NSL or MSL) Loader Model FLx2813; FLx2815 H240NSL Loader Lift Height 111 in (FLx2813 and FLx2815 loaders) 131 in Loader Lift Capacity (Full Height) FLx2813: 3,016 lb; FLx2815: 2,810 lb 3,671 lb Loader Breakout Force FLx2813: 4,176 lb; FLx2815: 4,240 lb 4,504 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
