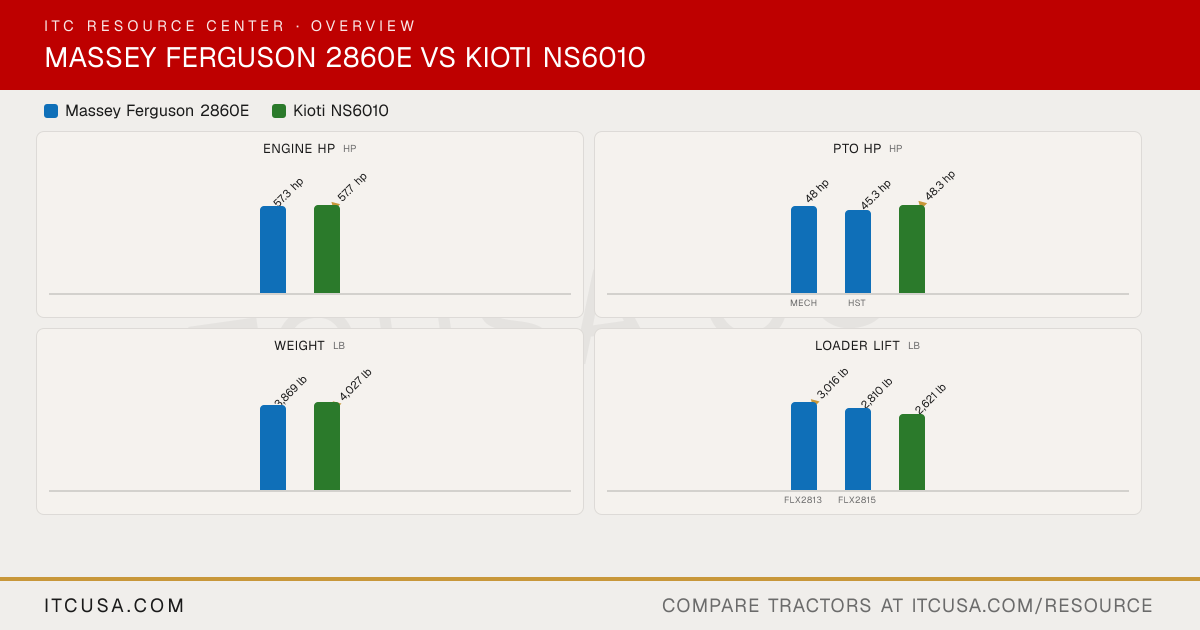

▶ EngineEngine Manufacturer Iseki KIOTI (Daedong) Engine Model Not Published 3HT-S4TM58A Engine Type 4-cylinder, turbocharged, liquid-cooled diesel KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI No. of Cylinders 4 3 Displacement 148.6 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 57.3 hp 57.7 hp PTO Power Mech: 48 hp; HST: 45.3 hp 48.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Water-cooled Air Cleaner Not Published Dry type element Fuel System Not Published Common Rail Direct Injection (CRDI) Alternator Not Published Not Published ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Gear Implement Flow 12.6 gpm 9.61 gpm Steering Flow 7.0 gpm 6.87 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7.0, computed) 16.5 gpm Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7.0, computed) 16.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 14 gal 13.2 gal Coolant Capacity Not Published 2.03 gal Crankcase Capacity Not Published 1.95 gal Transmission / Hydraulic System Capacity Not Published 11.36 gal Front Axle Fluid Capacity Not Published 2.25 gal ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Independent PTO Rear 540 rpm (1-3/8 in) 540 rpm Mid-PTO Availability Not Published Optional (2,000 rpm) Category, 3-Point Hitch Category I and II Category II Hitch Lift Capacity 2,645 lb 2,940 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,493 lb Lift Control Type Not Published Position with Draft Control ▶ Transmission & DrivetrainTransmission Type 8x8 synchro shuttle or 3-range hydrostatic Synchro Shuttle No. of Speeds Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) 12x12 Max Travel Speed (Forward) Not Published 16.7 mph Max Travel Speed (Reverse) Not Published 14.8 mph Clutch Not Published Dry Type Single Stage Differential Lock & Limited Slip Options Not Published Mechanical differential lock: rear standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Wet disc Wet disc type Seat Suspension & Adjustability Spring-cushioned seat Deluxe suspension seat Front Axle Type Solid cast front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 132.8 in 136.4 in Overall Width 70.1 in 67.1 in Wheelbase Not Published 75.5 in Ground Clearance 15 in 13.4 in Min. Turn Radius without Brakes Not Published 11.0 ft (with brake applied) Height to Top of ROPS 103.8 in 98.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3,869 lb 4,027 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 8-16 R1 Agricultural - Rear Not Published 13.6-24 R3 Turf - Front Not Published 29-12.5-15 R3 Turf - Rear Not Published 21.5L-16.1 R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System FLx2813: skid steer quick attach; FLx2815: pin-type or skid steer Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Loader Model FLx2813; FLx2815 KL5810 Loader Lift Height 111 in (FLx2813 and FLx2815 loaders) KL5810: 106.3 in (to pivot pin) Loader Lift Capacity (Full Height) FLx2813: 3,016 lb; FLx2815: 2,810 lb KL5810: 2,621 lb (at pivot pin, max height) Loader Breakout Force FLx2813: 4,176 lb; FLx2815: 4,240 lb KL5810: 3,896 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor ▶ ITC Company AccessoriesAccessories that fit None tagged yet
