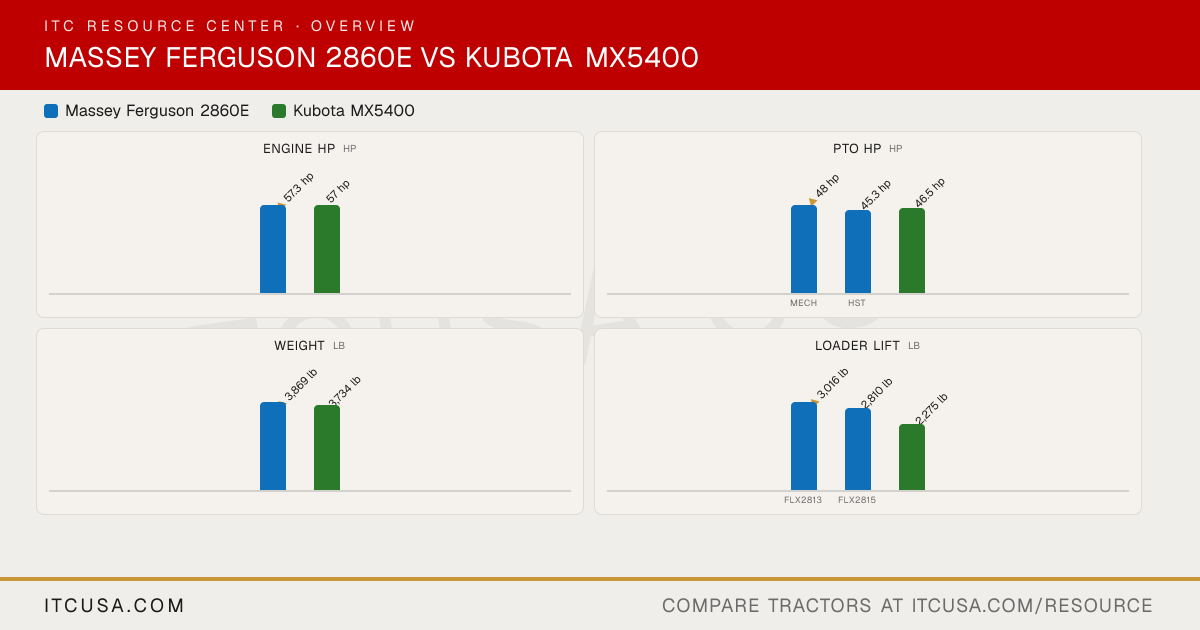

▶ EngineEngine Manufacturer Iseki Kubota Engine Model Not Published V2403CR-T Engine Type 4-cylinder, turbocharged, liquid-cooled diesel Liquid-cooled, diesel, 4-cylinder, Turbocharged No. of Cylinders 4 4 Displacement 148.6 in³ 148.6 in³ Rated Engine Speed 2600 rpm 2700 rpm Engine Power (Gross) 57.3 hp 57 hp PTO Power Mech: 48 hp; HST: 45.3 hp 46.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Not Published Dry-dual element Fuel System Not Published Common Rail System (CRS), direct injection Alternator Not Published 45 A, 12 V ▶ HydraulicsPump Type Two gear-type pumps for steering and 3-point/remotes Gear Implement Flow 12.6 gpm 9.5 gpm Steering Flow 7.0 gpm 4.9 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7.0, computed) 14.4 gpm (9.5 + 4.9, computed) Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7.0, computed) 14.4 gpm (9.5 + 4.9, computed) Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Maximum 3 (opt) ▶ Fluid CapacityFuel Tank Capacity 14 gal 13.5 gal Coolant Capacity Not Published 6.9 qt Crankcase Capacity Not Published 7.4 qt Transmission / Hydraulic System Capacity Not Published 11.6 gal Front Axle Fluid Capacity Not Published 8.9 qt ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Live independent, hydraulic PTO with PTO brake, wet clutch PTO Rear 540 rpm (1-3/8 in) 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I and II I & II Hitch Lift Capacity 2,645 lb 2,870 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,310 lb Lift Control Type Not Published Position (std), Draft (opt) ▶ Transmission & DrivetrainTransmission Type 8x8 synchro shuttle or 3-range hydrostatic 3-range hydrostatic (HST) No. of Speeds Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) 3-range Max Travel Speed (Forward) Not Published DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph Max Travel Speed (Reverse) Not Published DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph Clutch Not Published No clutch Differential Lock & Limited Slip Options Not Published Rear differential lock standard (mechanical) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Mechanical wet disc Seat Suspension & Adjustability Spring-cushioned seat High-back suspension seat (optional arm rests) Front Axle Type Solid cast front axle Bevel gear type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,650 lb ▶ Dimensions & ManeuverabilityOverall Width 70.1 in 69.7 in Wheelbase Not Published 74.6 in Ground Clearance 15 in 15.2 in Min. Turn Radius without Brakes Not Published 8.9 ft (with brake applied) Height to Top of ROPS 103.8 in 95.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length 132.8 in 125.9 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,869 lb 3,734 lb (with ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Standard ag: 9.5-16 / 14.9-26 R1 Agricultural - Front Not Published 9.5-16 R1 Agricultural - Rear Not Published 14.9-26 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System FLx2813: skid steer quick attach 1065A: 2-Lever Quick Coupler for Loader Attachment Loader Model FLx2813 LA1065 Loader Lift Height FLx2813: 111 in (at pivot pin) 111.2 in (at pivot pin) Loader Lift Capacity (Full Height) FLx2813: 3,016 lb (at pivot pin) 2,275 lb (at pivot pin) Loader Breakout Force FLx2813: 4,176 lb (at pivot pin) 3,102 lbf ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
