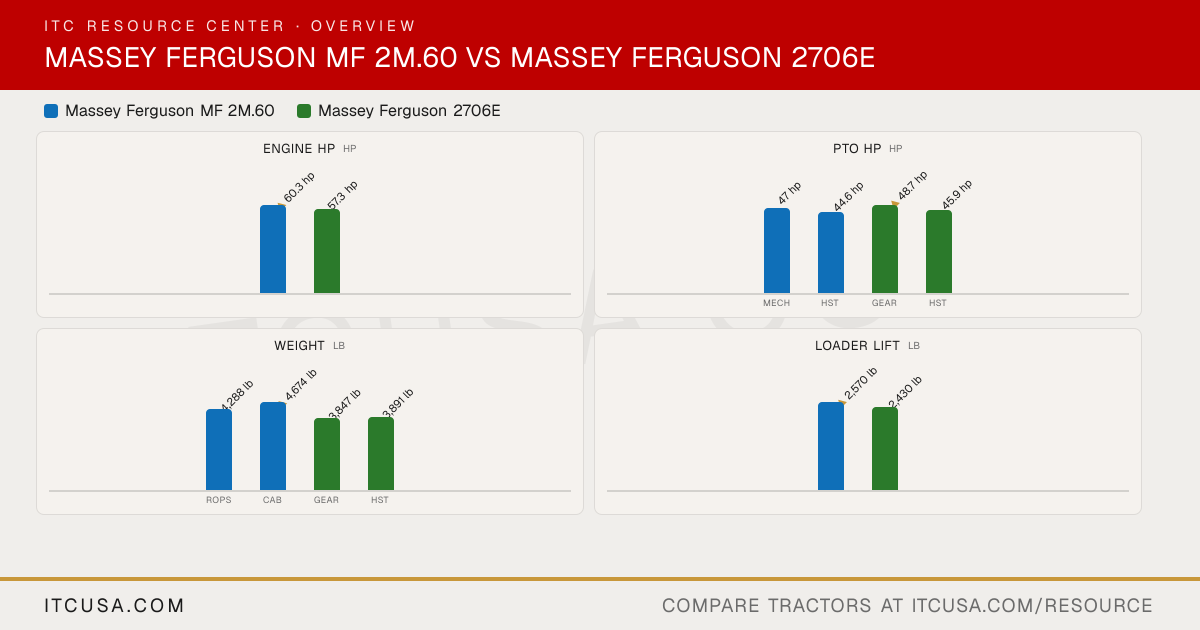

▶ EngineEngine Manufacturer Iseki Shibaura Engine Model Not Published N4LDI-TA Engine Type 4-cylinder, turbocharged, liquid-cooled diesel 4-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 4 4 Displacement 148.6 in³ 135.2 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 60.3 hp 57.3 hp PTO Power Mech: 47 hp; HST: 44.6 hp Gear: 48.7 hp; HST: 45.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Not Published Primary and secondary elements Fuel System Common rail direct injection with electronic engine management Electronically controlled high-pressure common rail Alternator Not Published 90 A ▶ HydraulicsPump Type Two gear-type pumps Gear-type single pump Implement Flow Mech: 12.7 gpm; HST: 12.6 gpm Not Published Steering Flow 7.1 gpm Not Published Total Hydraulic Flow Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) 12.4 gpm Overall Hydraulic Pump Flow Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) 12.4 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves Not Published 1 factory-installed; up to 3 field-installed ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 14 gal Coolant Capacity 7.61 qt 1.66 gal Crankcase Capacity 7.82 qt 1.53 gal Transmission / Hydraulic System Capacity Mech: 11.35 gal; HST: 9.25 gal 10.04 gal Front Axle Fluid Capacity 9 qt 2.21 gal ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Independent, electro-hydraulically engaged PTO Rear 540 rpm, 1.375 in 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Not Published No mid-PTO Category, 3-Point Hitch Category I & II Category I and II Hitch Lift Capacity Mech: 3,747 lb; HST: 3,483 lb Not Published Hitch Lift Capacity (at 24”) Mech: 3,307 lb; HST: 3,086 lb 2,425 lb Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type Mech: 12x12 power shuttle; HST: 3-range Servo-HST Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST No. of Speeds Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Dry single-disc Differential Lock & Limited Slip Options Not Published Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Not Published Internal wet disc, 2 pedals (Gear: right hand; HST: left hand) Seat Suspension & Adjustability Not Published Suspended vinyl seat with retractable seatbelt Front Axle Type Four-wheel drive Cast steel 4WD front axle with center drive line and bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Mech: 136.2 in; HST: 132.3 in 133 in Overall Width 71.3 in 74 in Wheelbase Not Published 78 in Ground Clearance Mech: 11.6 in; HST: 14.0 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103.1 in 104 in Height to Top of ROPS (folded) Not Published 80 in Height to Top of Cab Model 93.3 in Not Published ▶ WeightTractor Weight (Base) ROPS: 4,288 lb; Cab: 4,674 lb Gear: 3,847 lb; HST: 3,891 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear R1 Agricultural - Front Not Published 9.5x16 R1 Agricultural - Rear Not Published 13.6x28; 16.9x24 R3 Turf - Front Not Published 27x10.50-15 R3 Turf - Rear Not Published 44x18.00-20 R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer L135E: optional skid steer tool carrier Loader Model FL2814 L135E Loader Lift Height FL2814: 111 in L135E: 110.2 in Loader Lift Capacity (Full Height) FL2814: 2,570 lb L135E: 2,430 lb Loader Breakout Force FL2814: 3,910 lb L135E: 2,870 lb ▶ WarrantyWarranty Length & Coverage Not Published 5-year powertrain warranty
