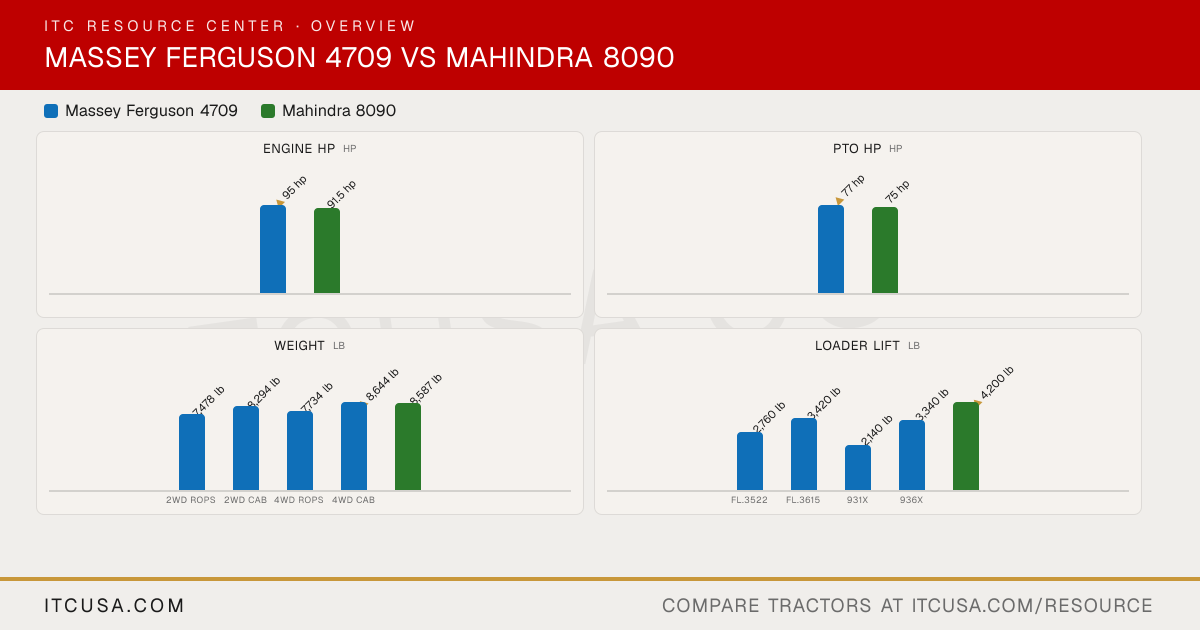

▶ EngineEngine Manufacturer AGCO Power Mahindra Engine Model 33 AWIC Not Published Engine Type 3-cylinder, intercooled turbocharged diesel Four-stroke, turbocharged, direct injection, water-cooled diesel No. of Cylinders 3 4 Displacement 201.4 in³ 215.4 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 95 hp 91.5 hp PTO Power 77 hp 75 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Water-cooled Air Cleaner Dual element (primary and secondary) Not Published Fuel System High-pressure common rail direct fuel injection Common rail direct injection Alternator 80 A 140 A ▶ HydraulicsPump Type Two-stage pump Not Published Implement Flow Not Published 17 gpm Steering Flow Not Published 5.2 gpm Total Hydraulic Flow Not Published 22.2 gpm Overall Hydraulic Pump Flow Not Published 22.2 gpm Hydraulic System Type Open center Open center with position and draft control Rear Remote Hydraulic Flow 17.2 gpm Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 1 3rd valve optional ▶ Fluid CapacityFuel Tank Capacity 33 gal 25.9 gal Coolant Capacity 4.2 gal Not Published Crankcase Capacity 3.3 gal Not Published Transmission / Hydraulic System Capacity Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Not Published Front Axle Fluid Capacity Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive Not Published ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement 2-speed independent single lever PTO PTO Rear 540/540E standard; 540/1000 optional 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II CAT II with telescoping stabilizers & flex links Hitch Lift Capacity Not Published 5,500 lb Hitch Lift Capacity (at 24”) 4,850 lb Not Published Lift Control Type Not Published Position and draft control ▶ Transmission & DrivetrainTransmission Type 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift Full synchro mesh with forward/reverse power shuttle and constant-mesh range No. of Speeds 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 12F / 12R Max Travel Speed (Forward) 2WD: 18 mph; 4WD: 25 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch with easy shift knob and electrohydraulic power shuttle lever Power shuttle with torsional damper (wet) Differential Lock & Limited Slip Options Hydraulic, electronically controlled; rear axle engaged via electrohydraulic rocker switch; 4WD front axle: hydraulic differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Steel frame Steering Cab: tilt and telescopic steering column; Platform: tilt steering column Power steering Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Oil-immersed brakes, 7-in disc, mechanically actuated Seat Suspension & Adjustability Cab: mechanical swiveling seat with armrests, air-suspension swivel seat optional; Platform: mechanical spring-suspension seat with armrests Seat with integrated folding armrests, recline, and air-suspension standard Front Axle Type Heavy-duty 2WD or 4WD front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 60.3 in (minimum, with std. 420/85R30 rear tires) 83 in Wheelbase 88.5 in 95.6 in Ground Clearance Not Published 14.1 in Min. Turn Radius without Brakes Not Published 15.5 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 111.2 in Overall Length Not Published 176.6 in ▶ WeightTractor Weight (Base) 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb 8,587 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 420/85R30 standard Not Published R1 Agricultural - Front 2WD: 9.5L-15; 4WD: 320/85R24 12.4 x 24 R1 Agricultural - Rear 420/85R30 18.4 x 30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System 931X and 936X: universal skid steer type quick release Skid steer style quick attach Loader Model FL.3522, FL.3615, 931X, 936X 8100CL Loader Lift Height FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) 8100CL: 139 in Loader Lift Capacity (Full Height) FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) 8100CL: 4,200 lb (at pivot pin) Loader Breakout Force Not Published 8100CL: 6,050 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
