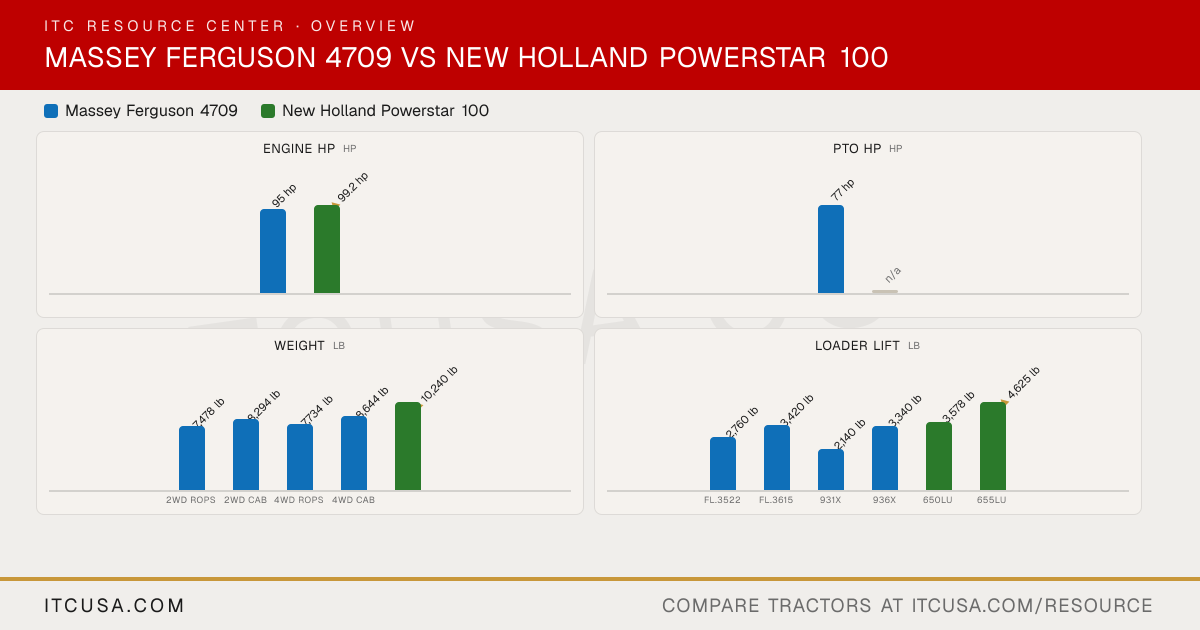

▶ EngineEngine Manufacturer AGCO Power FPT Engine Model 33 AWIC F36 Engine Type 3-cylinder, intercooled turbocharged diesel 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 3 4 Displacement 201.4 in³ 219.7 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 95 hp 99.2 hp PTO Power 77 hp Not Published Engine Emissions Constraints Tier 4 Stage V (ECOBlue Compact HI-eSCR + Light CEGR) Cooling System Type Liquid cooled Not Published Air Cleaner Dual element (primary and secondary) Not Published Fuel System High-pressure common rail direct fuel injection Common rail fuel injection Alternator 80 A Not Published ▶ HydraulicsPump Type Two-stage pump Open center, dual pumps: implement pump plus dedicated steering pump Implement Flow Not Published 21.7 gpm Steering Flow Not Published 9.7 gpm Total Hydraulic Flow Not Published 31.4 gpm (21.7 + 9.7, computed) Overall Hydraulic Pump Flow Not Published 31.4 gpm (21.7 + 9.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 17.2 gpm Not Published No. of Standard Remote Valves 2 2 rear remotes (four couplers) No. of Optional Remote Valves 1 1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter) ▶ Fluid CapacityFuel Tank Capacity 33 gal 34.3 gal Coolant Capacity 4.2 gal Not Published Crankcase Capacity 3.3 gal Not Published Transmission / Hydraulic System Capacity Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Not Published Front Axle Fluid Capacity Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive Not Published ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Fully independent electrohydraulic PTO, wet clutch PTO Rear 540/540E standard; 540/1000 optional 540/1000 rpm (interchangeable, standard) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 4,850 lb 4,123 lb Lift Control Type Not Published 12x12 models: mechanical draft control; Dual Command models: electronic draft control; single-lever Lift-O-Matic PLUS (standard) ▶ Transmission & DrivetrainTransmission Type 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift 12x12 power shuttle; 20x20 power shuttle with creeper; 24x24 Dual Command hi-lo power shuttle (column-mounted) No. of Speeds 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 12F/12R; 20F/20R with creeper; 24F/24R Dual Command Max Travel Speed (Forward) 2WD: 18 mph; 4WD: 25 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch with easy shift knob and electrohydraulic power shuttle lever Not Published Differential Lock & Limited Slip Options Hydraulic, electronically controlled; rear axle engaged via electrohydraulic rocker switch; 4WD front axle: hydraulic differential lock Electrohydraulic rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Cab: tilt and telescopic steering column; Platform: tilt steering column Not Published Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Not Published Seat Suspension & Adjustability Cab: mechanical swiveling seat with armrests, air-suspension swivel seat optional; Platform: mechanical spring-suspension seat with armrests Air-suspension cloth seat Front Axle Type Heavy-duty 2WD or 4WD front axle Heavy-duty class 1.5 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 60.3 in (minimum, with std. 420/85R30 rear tires) 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) Wheelbase 88.5 in 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 103.6 in Overall Length Not Published 158.2 in ▶ WeightTractor Weight (Base) 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb 10,240 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 420/85R30 standard 420/85R38 (reference tire for weight and dimensions); rear tires as large as R38 available R1 Agricultural - Front 2WD: 9.5L-15; 4WD: 320/85R24 Not Published R1 Agricultural - Rear 420/85R30 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System 931X and 936X: universal skid steer type quick release Skid-steer-style or Euro-style quick attach faceplate (available, both LU loaders) Loader Model FL.3522, FL.3615, 931X, 936X 650LU (NSL); 655LU (MSL) Loader Lift Height FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) 650LU: 149.7 in; 655LU: 149.7 in (max lift height to pivot pin) Loader Lift Capacity (Full Height) FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
