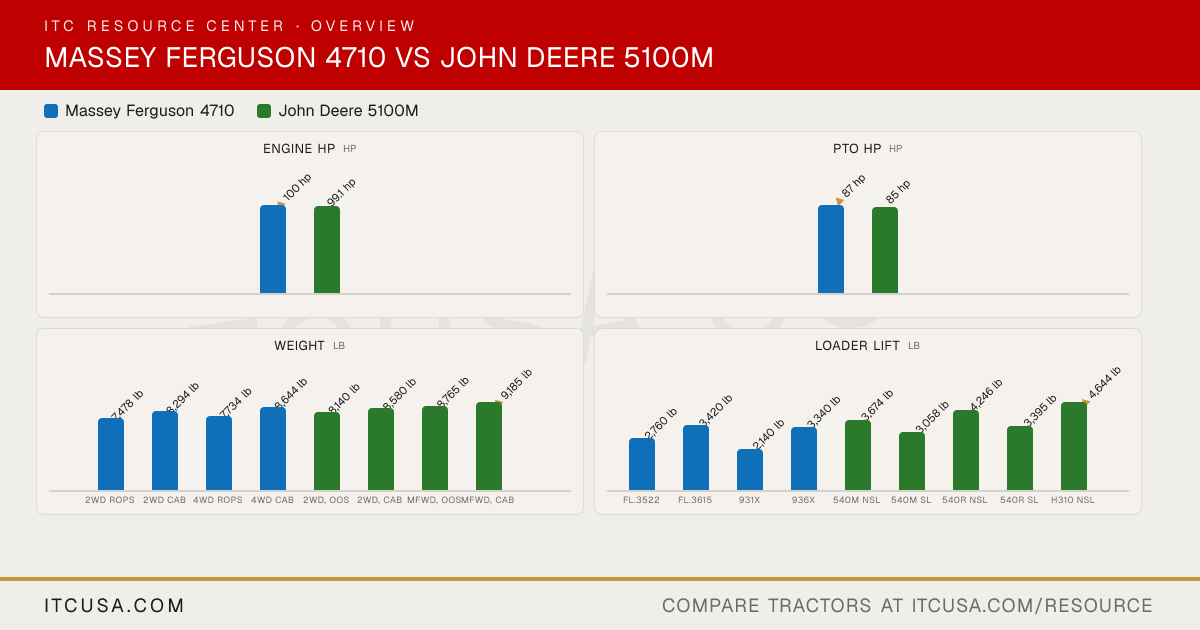

▶ EngineEngine Manufacturer AGCO Power John Deere Engine Model 33 AWIC PowerTech 4045 PWL Engine Type 3-cylinder, intercooled turbocharged diesel Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 3 4 Displacement 201 in³ 276 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 100 hp 99.1 hp PTO Power 87 hp 85 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled (Cool-Gard II coolant) Air Cleaner Dual element (primary and secondary) Dry air cleaner, primary and secondary elements Fuel System High-pressure common rail direct fuel injection High Pressure Common Rail (HPCR) electronic fuel injection Alternator 80 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Two-stage pump Tandem gear pump Implement Flow Not Published 18.4 gpm Steering Flow Not Published 6.3 gpm Total Hydraulic Flow Not Published 24.7 gpm Overall Hydraulic Pump Flow Not Published 24.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 17.2 gpm Not Published No. of Standard Remote Valves 2 2 (rear, Dual SCV) No. of Optional Remote Valves 1 Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity 33 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity 4.2 gal OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity 3.3 gal 3.4 gal Transmission / Hydraulic System Capacity Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal 10.4 gal Front Axle Fluid Capacity Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional PTO Rear 540/540E standard; 540/1000 optional 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II (convertible to I) Hitch Lift Capacity Not Published 5,305 lb standard; 6,114 lb optional Hitch Lift Capacity (at 24”) 4,850 lb 5,159 lb standard; 5,954 lb optional Lift Control Type Not Published Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) 25 mph 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever Wet Differential Lock & Limited Slip Options Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame Steering Cab: tilt and telescopic steering column; Platform: tilt steering column Not Published Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Not Published Seat Suspension & Adjustability Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb Front Axle Type Heavy-duty 2WD or 4WD front axle MFWD Front Axle Rating Not Published 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 149.5 in Overall Width 60.3 in (minimum, with std. 420/85R30 rear tires) Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 88.5 in 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 102.9 in ▶ WeightTractor Weight (Base) 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear Not Published R1 Agricultural - Front 2WD: 9.5L-15; 4WD: 340/85R24 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 420/85R34 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System 931X and 936X: universal skid steer type quick release Not Published Loader Model FL.3522, FL.3615, 931X, 936X 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force Not Published 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)
