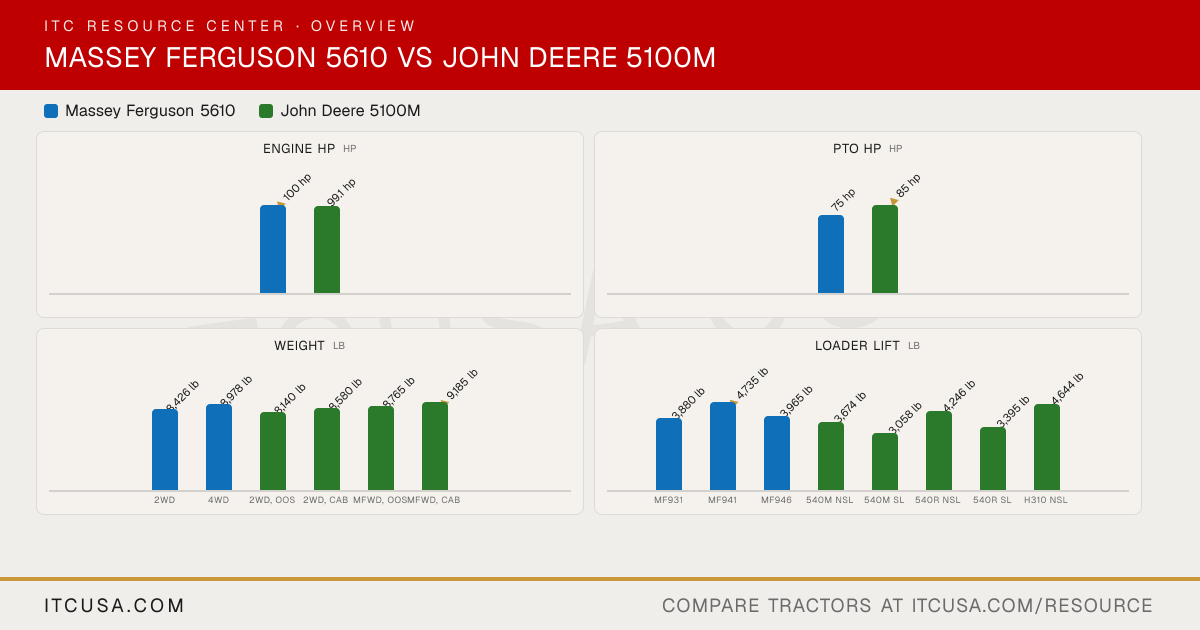

▶ EngineEngine Manufacturer AGCO Power John Deere Engine Model 33 AWI HD PowerTech 4045 PWL Engine Type 3-cylinder turbocharged and intercooled diesel Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 3 4 Displacement 201 in³ 276 in³ Rated Engine Speed 2200 rpm 2100 rpm Engine Power (Gross) 100 hp 99.1 hp PTO Power 75 hp 85 hp @ 100 rpm Engine Emissions Constraints Tier 4i Tier 4 Cooling System Type Water-cooled Liquid-cooled (Cool-Gard II coolant) Air Cleaner 2-stage dry Dry air cleaner, primary and secondary elements Fuel System Common rail direct injection High pressure common rail (HPCR); electronic fuel control Alternator 120 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Single gear pump; tandem gear pumps optional Tandem gear pump Implement Flow 15 gpm standard; 26 gpm with optional Twin Flow 18.4 gpm Steering Flow Not Published 6.3 gpm Total Hydraulic Flow 26 gpm (tandem pumps: 15 gpm to the 3-point hitch plus 11 gpm to remotes, combinable) 24.7 gpm Overall Hydraulic Pump Flow Not Published 24.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 15 gpm standard; 26 gpm with optional Twin Flow Not Published No. of Standard Remote Valves 2 2 (rear, Dual SCV) No. of Optional Remote Valves Up to 4 3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity 42 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity 15.3 qt OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity 13.7 qt 3.4 gal Transmission / Hydraulic System Capacity 17.2 gal 10.4 gal Front Axle Fluid Capacity 5.3 qt axle beam; 0.85 qt each final drive Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement and speed selection Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional PTO Rear 540/540E standard; 540/540E/1000 optional 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II (convertible to I) Hitch Lift Capacity 9,480 lb 5,305 lb standard; 6,114 lb optional Hitch Lift Capacity (at 24”) 7,100 lb 5,159 lb standard; 5,954 lb optional Lift Control Type Electronically operated, lower-link draft sensing Mechanical or electrohydraulic; lower-link draft sensing ▶ Transmission & DrivetrainTransmission Type Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered No. of Speeds 16F / 16R 16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) Max Travel Speed (Forward) 25 mph 16F/16R PowrReverser, top gear (D-4): 30K config: 18.64 mph; 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm) Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.54 mph; 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm) Clutch Wet multi-disc, foot pedal and electronic control Wet Differential Lock & Limited Slip Options Fully locking front and rear axle differentials, electro-hydraulically engaged Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Rigid structural chassis; solid cast-steel flanged rear axle, internal planetary reduction Cast iron mid-frame Steering Hydrostatic power steering Not Published Brakes Internal wet disc, hydraulic power assist, individual left and right foot pedals Not Published Seat Suspension & Adjustability Mechanical suspended swivel seat, standard; manual or automatic air-suspension, optional OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb Front Axle Type Adjustable 2WD, or fixed cast-steel 4WD (single-piece), outboard planetary final drives MFWD Front Axle Rating 2WD: 6,085 lb; 4WD: 10,500 lb 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Width 79.3 in Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 97.1 in 92.5 in Ground Clearance 17.6 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 111.3 in (16.9R38 rear tires) 102.9 in Overall Length 167.5 in 149.5 in ▶ WeightTractor Weight (Base) 2WD: 8,426 lb; 4WD: 8,978 lb 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) Not Published R1 Agricultural - Front Not Published 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 16.9R38 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System MF931, MF941, MF946: quick attachment, single lever locking system Not Published Loader Model MF931, MF941, MF946 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height MF931: 138 in; MF941: 148 in; MF946: 148 in (at pivot pins) 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb (at pivot) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force Not Published 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage 2-year/2,000-hour full coverage, all parts and labor Not Published
