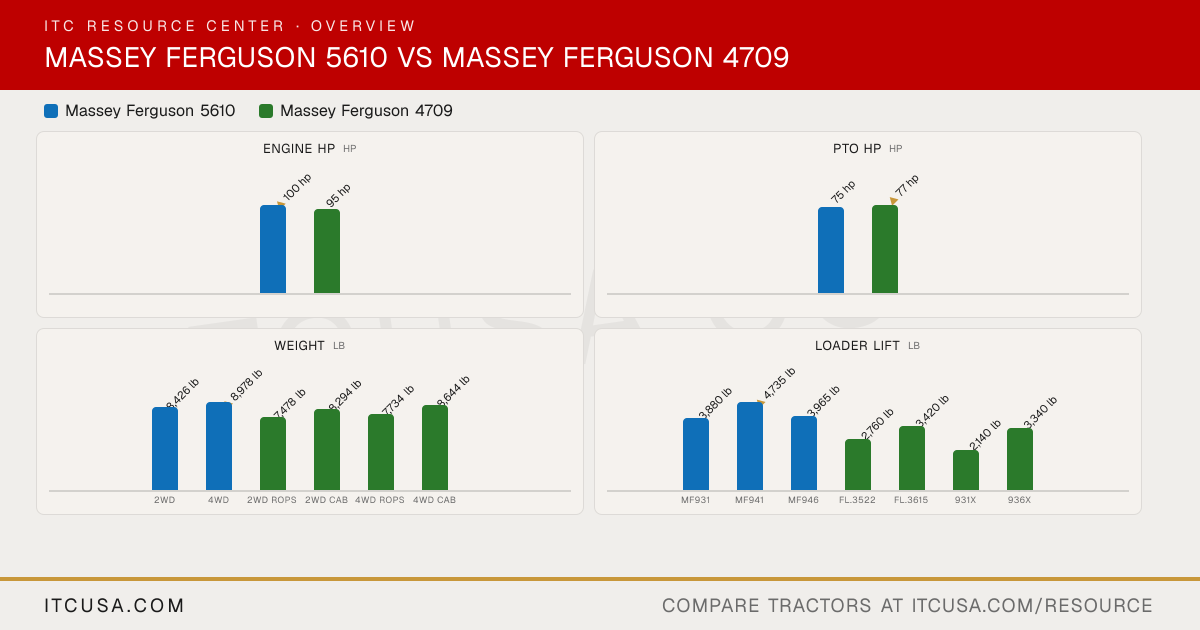

▶ EngineEngine Manufacturer AGCO Power AGCO Power Engine Model 33 AWI HD 33 AWIC Engine Type 3-cylinder turbocharged and intercooled diesel 3-cylinder, intercooled turbocharged diesel No. of Cylinders 3 3 Displacement 201 in³ 201 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 100 hp 95 hp PTO Power 75 hp 77 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled (water-cooled) Liquid cooled Air Cleaner 2-stage dry Dual element (primary and secondary) Fuel System Common rail direct injection High-pressure common rail direct fuel injection Alternator 95 A 80 A ▶ HydraulicsPump Type Single gear-type pump (tandem gear-type pumps with optional Twin Flow) Two-stage pump Implement Flow 15 gpm standard; 26 gpm with optional Twin Flow Not Published Steering Flow Not Published Not Published Total Hydraulic Flow 26 gpm (Twin Flow: 15 gpm to 3-point hitch plus 11 gpm to remotes, combinable) Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 15 gpm standard; 26 gpm with optional Twin Flow 17.2 gpm No. of Standard Remote Valves 2 2 No. of Optional Remote Valves Up to 4 1 ▶ Fluid CapacityFuel Tank Capacity 42 gal 33 gal Coolant Capacity 15.3 qt 4.2 gal Crankcase Capacity 13.7 qt 3.3 gal Transmission / Hydraulic System Capacity 17.2 gal Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Front Axle Fluid Capacity 5.3 qt axle beam; 0.85 qt each final drive Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement and speed selection Independent, electrohydraulic engagement PTO Rear 540/540E standard; 540/540E/1000 optional 540/540E standard; 540/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 9,480 lb Not Published Hitch Lift Capacity (at 24”) 7,100 lb 4,850 lb Lift Control Type Electronic linkage control (ELC), position and draft control, lower link draft sensing Not Published ▶ Transmission & DrivetrainTransmission Type Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift No. of Speeds 16F / 16R 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 Max Travel Speed (Forward) 25 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet multi-disc, foot pedal and electronic control Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Fully locking front and rear differentials, electro-hydraulically engaged Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock ▶ Chassis, Steering & ControlsFrame Type Rigid structural chassis, solid cast steel flanged rear axle with internal planetary reduction Not Published Steering Hydrostatic power steering, adjustable steering wheel Cab: tilt and telescopic steering column; Platform: tilt steering column Brakes Internal wet disc, hydraulic power assist, individual left and right foot pedals Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Mechanical suspended swivel seat standard; manual or automatic air suspension optional Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests Front Axle Type Adjustable 2WD or fixed cast steel 4WD, single piece with outboard planetary final drives Heavy-duty 2WD or 4WD front axle Front Axle Rating 2WD: 6,085 lb; 4WD: 10,500 lb Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 167.5 in Not Published Overall Width 79.3 in 60.3 in (minimum, with std. 420/85R30 rear tires) Wheelbase 97.1 in 88.5 in Ground Clearance 17.6 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 108.5 in Not Published ▶ WeightTractor Weight (Base) 2WD: 8,426 lb; 4WD: 8,978 lb 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) 2WD: 9.5L-15 front, 420/85R30 rear; 4WD: 320/85R24 front, 420/85R30 rear R1 Agricultural - Front Not Published 2WD: 9.5L-15; 4WD: 320/85R24 R1 Agricultural - Rear 16.9R38 420/85R30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System MF931, MF941, MF946: Euro quick attach, single lever locking 931X and 936X: universal skid steer type quick release Loader Model MF931, MF941, MF946 FL.3522, FL.3615, 931X, 936X Loader Lift Height MF931: 138 in; MF941: 148 in; MF946: 148 in FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) Loader Lift Capacity (Full Height) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage 2-year/2,000-hour full coverage, all parts and labor Not Published
