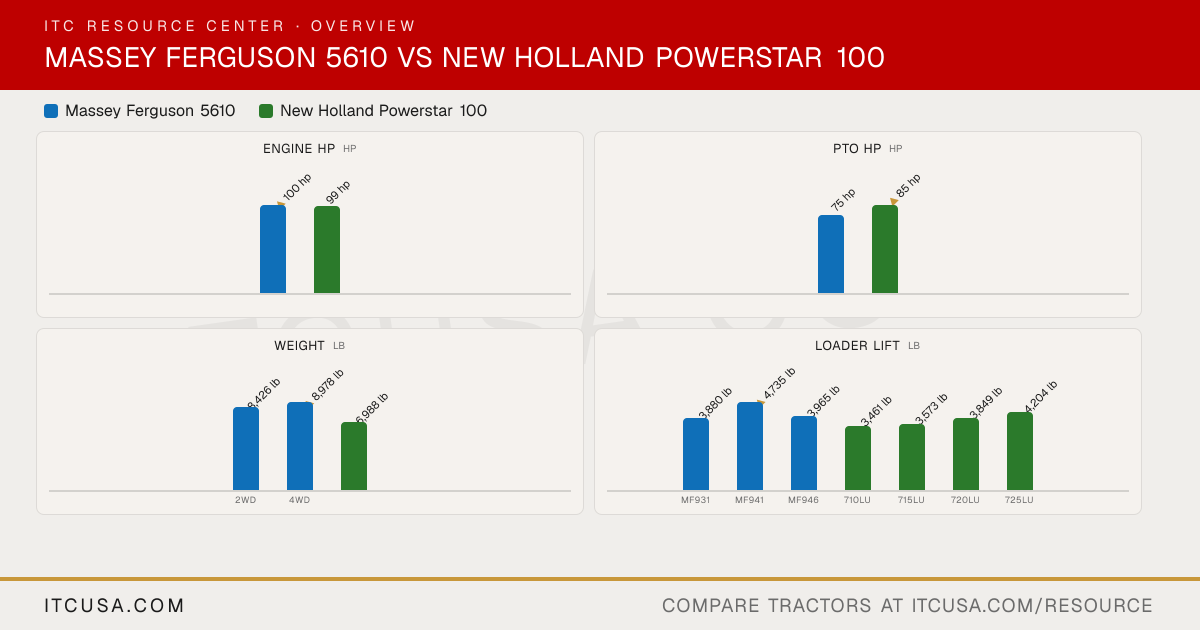

▶ EngineEngine Manufacturer AGCO Power FPT Industrial Engine Model 33 AWI HD F5G Engine Type 3-cylinder turbocharged and intercooled diesel 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 3 4 Displacement 201 in³ 207 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 100 hp 99 hp PTO Power 75 hp 85 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled (water-cooled) Liquid-cooled Air Cleaner 2-stage dry Not Published Fuel System Common rail direct injection Electronic high-pressure common rail fuel injection Alternator 95 A ROPS: 120 A; Cab: 150 A ▶ HydraulicsPump Type Single gear-type pump (tandem gear-type pumps with optional Twin Flow) Open-center; dual pumps (implement pump plus dedicated steering pump) Implement Flow 15 gpm standard; 26 gpm with optional Twin Flow 16.9 gpm Steering Flow Not Published 9.7 gpm Total Hydraulic Flow 26 gpm (Twin Flow: 15 gpm to 3-point hitch plus 11 gpm to remotes, combinable) 26.6 gpm Overall Hydraulic Pump Flow Not Published 26.6 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 15 gpm standard; 26 gpm with optional Twin Flow Not Published No. of Standard Remote Valves 2 2 rear remotes (open center with detent) No. of Optional Remote Valves Up to 4 1 (third rear remote, DIA kit) ▶ Fluid CapacityFuel Tank Capacity 42 gal 30.3 gal Coolant Capacity 15.3 qt Not Published Crankcase Capacity 13.7 qt Not Published Transmission / Hydraulic System Capacity 17.2 gal Not Published Front Axle Fluid Capacity 5.3 qt axle beam; 0.85 qt each final drive Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement and speed selection Fully independent hydraulic PTO PTO Rear 540/540E standard; 540/540E/1000 optional 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 9,480 lb Not Published Hitch Lift Capacity (at 24”) 7,100 lb 5,620 lb Lift Control Type Electronic linkage control (ELC), position and draft control, lower link draft sensing Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) ▶ Transmission & DrivetrainTransmission Type Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) No. of Speeds 16F / 16R 12F/12R (standard); 20F/20R with creeper (optional) Max Travel Speed (Forward) 25 mph 27 mph (4WD front axle); 20 mph (2WD front axle) Max Travel Speed (Reverse) Not Published 27.25 mph (12x12, 4WD front axle, 18R34 tires) Clutch Wet multi-disc, foot pedal and electronic control Not Published Differential Lock & Limited Slip Options Fully locking front and rear differentials, electro-hydraulically engaged Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement ▶ Chassis, Steering & ControlsFrame Type Rigid structural chassis, solid cast steel flanged rear axle with internal planetary reduction Not Published Steering Hydrostatic power steering, adjustable steering wheel Power steering Brakes Internal wet disc, hydraulic power assist, individual left and right foot pedals Hydraulic wet disc Seat Suspension & Adjustability Mechanical suspended swivel seat standard; manual or automatic air suspension optional Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Front Axle Type Adjustable 2WD or fixed cast steel 4WD, single piece with outboard planetary final drives Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) Front Axle Rating 2WD: 6,085 lb; 4WD: 10,500 lb 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 167.5 in 163.1 in (2WD); 160.9 in (4WD) Overall Width 79.3 in 75.7 in Wheelbase 97.1 in 92.2 in (2WD); 89.9 in (4WD) Ground Clearance 17.6 in Not Published Min. Turn Radius without Brakes Not Published 134 in (optional 2WD front axle, w/o brakes) Height to Top of ROPS Not Published 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 108.5 in 102.1 in ▶ WeightTractor Weight (Base) 2WD: 8,426 lb; 4WD: 8,978 lb 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions R1 Agricultural - Front Not Published 2WD: 10.00-16; 4WD: 12.4-24 R1 Agricultural - Rear 16.9R38 18.4R34 (reference tire for OEM weights and dimensions) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System MF931, MF941, MF946: Euro quick attach, single lever locking Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Loader Model MF931, MF941, MF946 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) Loader Lift Height MF931: 138 in; MF941: 148 in; MF946: 148 in 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in Loader Lift Capacity (Full Height) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb Loader Breakout Force Not Published 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) ▶ WarrantyWarranty Length & Coverage 2-year/2,000-hour full coverage, all parts and labor Not Published
