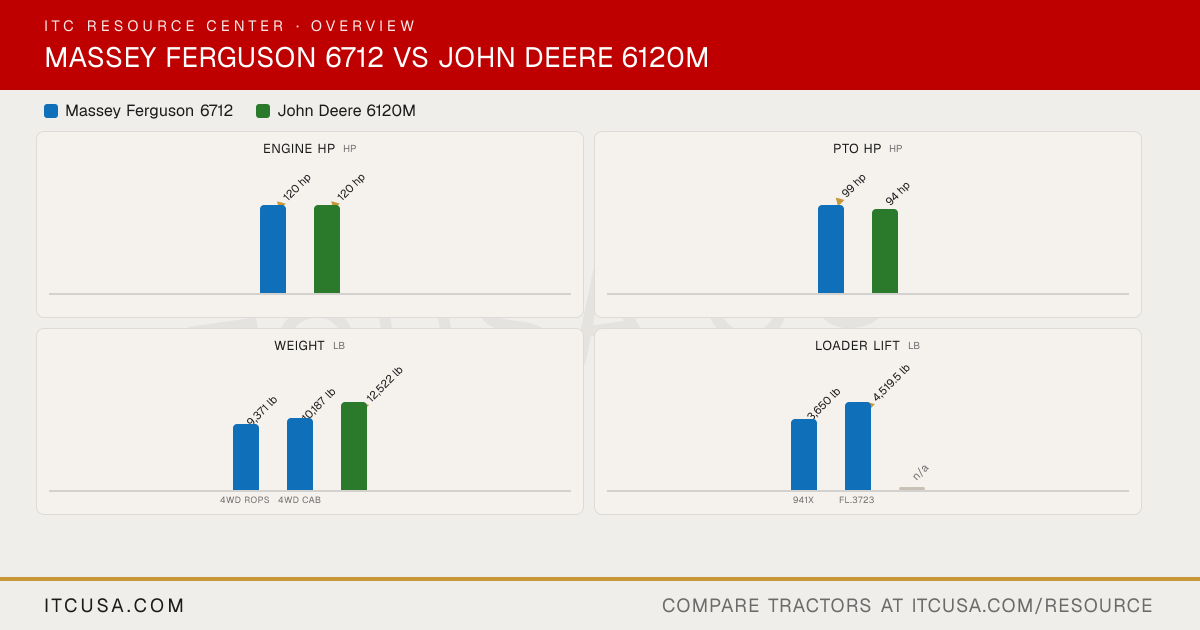

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey Ferguson6712
John Deere6120M
Engine Manufacturer
AGCO Power
John Deere
Engine Model
44 AWFC
PowerTech EWL
Engine Type
4-cylinder, intercooled turbocharged diesel
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
No. of Cylinders
4
4
Displacement
268.5 in³
275 in³
Rated Engine Speed
2200 rpm
2100 rpm
Engine Power (Gross)
120 hp
118 hp @ 2,100 rpm
PTO Power
99 hp
92.5 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid cooled
Cool-Gard II coolant, 5.8 gal system capacity
Air Cleaner
Not Published
Primary and secondary air filter elements
Fuel System
High-pressure common-rail direct injection (HPCR)
Not Published
Alternator
80 A, 12 V
125 A, 14 V
Pump Type
Two high-pressure gear pumps
Not Published
Implement Flow
15.1 gpm
Not Published
Steering Flow
Not Published
Not Published
Total Hydraulic Flow
25.9 gpm
21.1 gpm standard; 30.1 gpm optional
Overall Hydraulic Pump Flow
Not Published
21.1 gpm standard; 30.1 gpm optional
Hydraulic System Type
Open center
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Rear Remote Hydraulic Flow
26 gpm
Not Published
No. of Standard Remote Valves
2
2 (mechanical, 200 Series; rear)
No. of Optional Remote Valves
3rd valve optional
Up to 4 total (rear, 450 Series electronic)
Fuel Tank Capacity
38.3 gal
51.5 gal
Coolant Capacity
Not Published
5.8 gal
Crankcase Capacity
Not Published
4.2 gal
Transmission / Hydraulic System Capacity
Not Published
13.7 gal (PowrQuad Plus/AutoQuad Plus)
Front Axle Fluid Capacity
Not Published
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
PTO Type
Independent, electro-hydraulic engagement via switch
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
Wet clutch with easy shift knob and electrohydraulic power shuttle lever
Not Published
Differential Lock & Limited Slip Options
Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD
Not Published
Frame Type
Not Published
Full frame design
Steering
Cab: tilt and telescopic steering; platform: tilt steering
Hydrostatic steering
Brakes
Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals
Hydraulically boosted service brakes
Seat Suspension & Adjustability
Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests
Economy: seat with mechanical suspension, standard; standard: seat with air-suspension, optional
Front Axle Type
Heavy-duty 4WD front axle
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
Front Axle Rating
Not Published
9,655 lb (MFWD)
Drawbar Capacity
Not Published
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
Overall Width
64.8 in
100.4 in (maximum width for road travel)
Wheelbase
98.4 in
94.5 in
Ground Clearance
Not Published
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Min. Turn Radius without Brakes
Not Published
14 ft (4.36 m) (6110M & 6120M)
Height to Top of ROPS
Not Published
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
