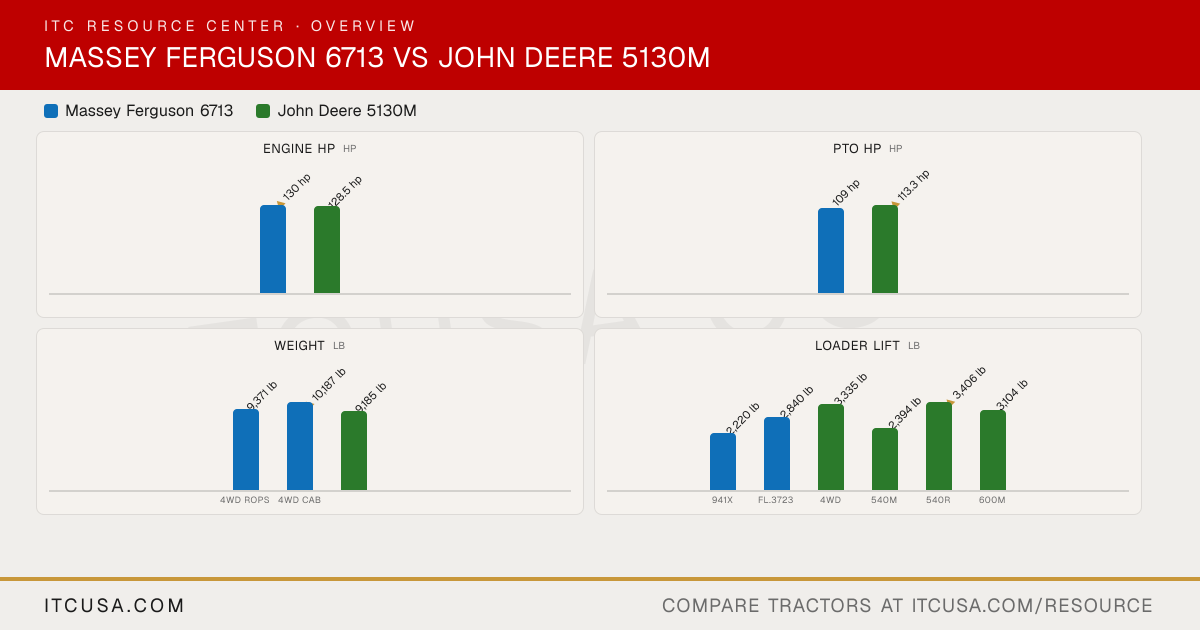

▶ EngineEngine Manufacturer AGCO Power John Deere Engine Model 44 AWFC PowerTech 4045 EWL Engine Type 4-cylinder, intercooled turbocharged diesel Diesel, turbocharged with intercooler, 4-valve HPCR No. of Cylinders 4 4 Displacement 268.5 in³ 276 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 130 hp 128.5 hp PTO Power 109 hp 113.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Not Published Air Cleaner Not Published Dry type air cleaner with safety element Fuel System High-pressure common-rail direct injection (HPCR) High-pressure common rail (HPCR), 4-valve Alternator 80 A, 12 V 120 A, 12 V ▶ HydraulicsPump Type Two high-pressure gear pumps Tandem gear pump Implement Flow 15.1 gpm 18.4 gpm Steering Flow Not Published 6.3 gpm Total Hydraulic Flow 25.9 gpm 25.6 gpm Overall Hydraulic Pump Flow Not Published 25.6 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 26 gpm Not Published No. of Standard Remote Valves 2 2 (rear); 2 (mid) No. of Optional Remote Valves 3rd valve optional Up to 3 total (rear); up to 3 total (mid) ▶ Fluid CapacityFuel Tank Capacity 38.3 gal 43.7 gal (Standard Cab) Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement via switch Independent rear PTO, electro-hydraulic clutch PTO Rear 540 / 540E / 1000 rpm 540/540E standard; 540/540E/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II (convertible to I) Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 9,390 lb 6,975 lb standard; 7,868 lb optional Lift Control Type Electronic linkage control (ELC) Electrohydraulic ▶ Transmission & DrivetrainTransmission Type 12F x 12R, 2-range power shuttle with electrohydraulic shuttle lever PowrQuad PLUS 16F/16R or Powr8 32F/16R (cab only) No. of Speeds 12 forward, 12 reverse 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) Max Travel Speed (Forward) 25 mph 24 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch with easy shift knob and electrohydraulic power shuttle lever Wet Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD Electro-hydraulic rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame design Steering Cab: tilt and telescopic steering; platform: tilt steering Power steering Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Hydraulic wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests Mechanical-suspension seat, standard; air-suspension seat, optional; heated low-frequency air-suspension seat, optional Front Axle Type Heavy-duty 4WD front axle MFWD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 3,197 lb ▶ Dimensions & ManeuverabilityOverall Width 64.8 in Not Published Wheelbase 98.4 in 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 13.1 ft Height to Top of ROPS Not Published Not Applicable Height to Top of ROPS (folded) Not Published Not Applicable Height to Top of Cab Model Not Published Not Published Overall Length Not Published Not Published ▶ WeightTractor Weight (Base) 4WD ROPS: 9,371 lb; 4WD Cab: 10,187 lb 9,185 lb Weight with ROPS and Loader Not Published Not Applicable Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 460/85R34 standard radial R1 Agricultural R1 Agricultural - Front Not Published 12.4R24 R1 Agricultural - Rear Not Published 18.4R30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 in, 12PR R4 Bias R4 Industrial - Rear Not Published 19.5L-24 in, 10PR R4 Bias ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 941X; 946X; FL.3723; FL.3819 520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only) Loader Lift Height 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in 520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in Loader Lift Capacity (Full Height) 941X: 2,220 lb; FL.3723: 2,840 lb (to full height) 520M (4WD): NSL 3,335-3,612 lb, MSL 2,460-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117-3,309 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb Loader Breakout Force FL.3723: 5,819 lb; FL.3819: 4,893 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours, whole-machine standard agricultural equipment term
