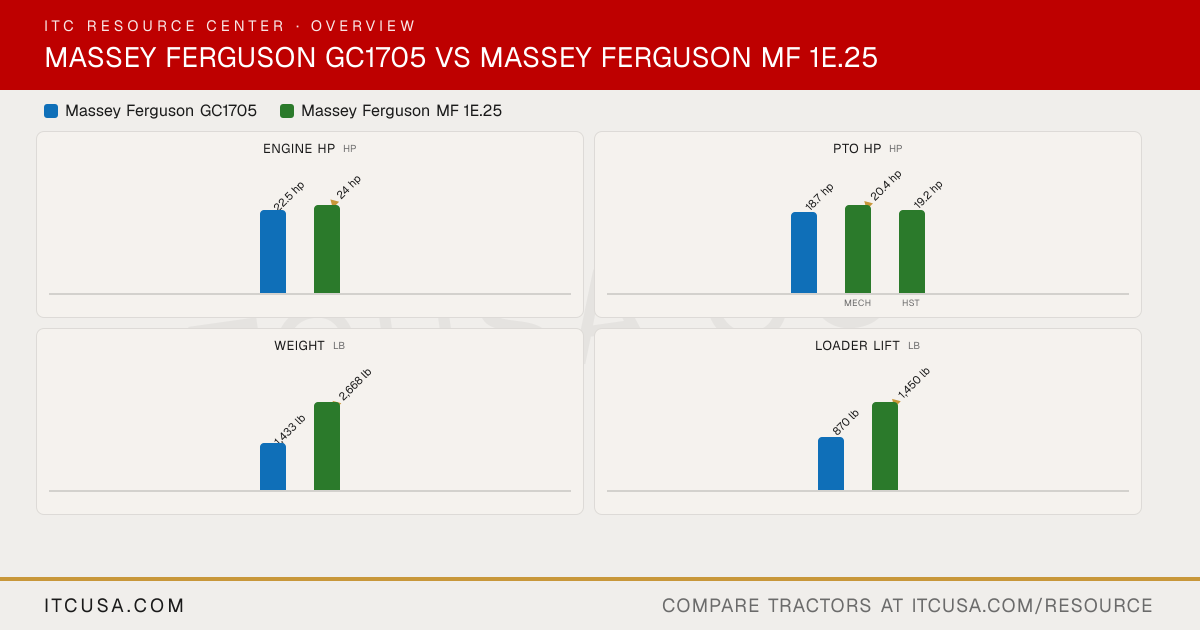

▶ EngineEngine Manufacturer Iseki Iseki Engine Model Not Published Not Published Engine Type 3-cylinder, liquid-cooled diesel 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 68.5 in³ 91.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 22.5 hp 24 hp PTO Power 18.7 hp Mech: 20.4 hp; HST: 19.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Two gear-type pumps Implement Flow 4.3 gpm 7.3 gpm Steering Flow 2 gpm 3.6 gpm Total Hydraulic Flow 6.3 gpm 10.9 gpm (7.3 + 3.6, computed) Overall Hydraulic Pump Flow Not Published 10.9 gpm (7.3 + 3.6, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 10 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Mech: Independent; HST: Transmission PTO Rear 540 rpm 540 rpm, 1.375 in Mid-PTO Availability Independent, 2000 rpm Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,190 lb 2,205 lb Hitch Lift Capacity (at 24”) Not Published 1,598 lb Lift Control Type Rate of drop control (standard) Not Published ▶ Transmission & DrivetrainTransmission Type 2-range hydrostatic with side-by-side foot pedals and cruise control Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic No. of Speeds Infinite forward and reverse (2-range hydrostatic) Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) Max Travel Speed (Forward) 9.1 mph (with R1 tires) Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc Not Published Seat Suspension & Adjustability Coil spring seat; retractable seat belt Not Published Front Axle Type 4WD front axle Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 97.6 in 116.5 in Overall Width 47.25 in 52.4 in Wheelbase 57.1 in Not Published Ground Clearance 6.7 in 11 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 72.8 in 97.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,433 lb 2,668 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12 Not Published R1 Agricultural - Front 18x8.50-10 Not Published R1 Agricultural - Rear 26x12.00-12 Not Published R3 Turf - Front 18x8.50-10 Not Published R3 Turf - Rear 26x12.00-12 Not Published R4 Industrial - Front 18x8.50-10 Not Published R4 Industrial - Rear 26x12.00-12 Not Published ▶ Loader & AttachmentsQuick Attach Loader System DL95: pin-on (factory or dealer installation) Skid steer quick attach Loader Model DL95 FL2407X Loader Lift Height DL95: 72.8 in FL2407X: 94.3 in Loader Lift Capacity (Full Height) DL95: 870 lb FL2407X: 1,450 lb Loader Breakout Force DL95: 920 lb FL2407X: 2,288 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Not Published
