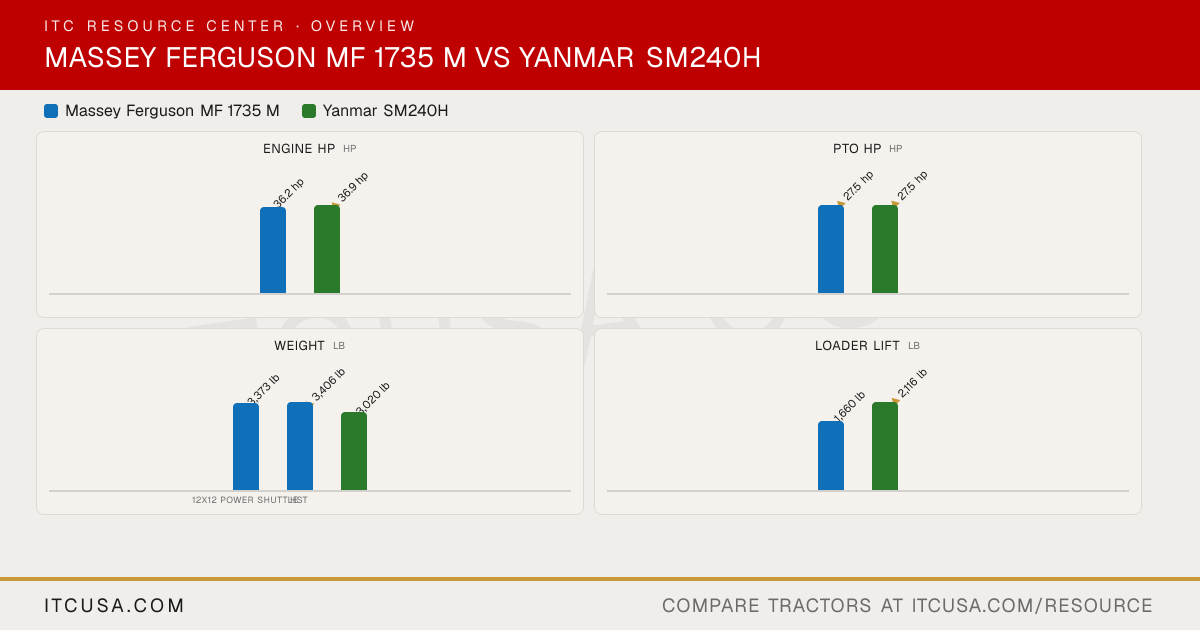

▶ EngineEngine Manufacturer Shibaura Yanmar Engine Model N3LDI-T Not Published Engine Type 3-cylinder turbocharged intercooled diesel, liquid-cooled Not Published No. of Cylinders 3 Not Published Displacement 101.4 in³ Not Published Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 36.2 hp 36.9 hp PTO Power 27.5 hp 27.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Not Published Air Cleaner Dry Not Published Fuel System Common rail direct injection Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Not Published Implement Flow 11.0 gpm 6.1 gpm Steering Flow Not Published 4.4 gpm Total Hydraulic Flow Not Published 10.5 gpm Overall Hydraulic Pump Flow 12.6 gpm 10.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow 12.1 gpm Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves Up to 3 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 10.56 gal 9.0 gal Coolant Capacity 6.34 qt Not Published Crankcase Capacity 4.86 qt Not Published Transmission / Hydraulic System Capacity 12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal Not Published Front Axle Fluid Capacity 7.9 qt Not Published ▶ PTO & HitchPTO Type Independent, with soft-start feature Independent PTO Rear 540 rpm (1-3/8 in 6-spline) 540 rpm Mid-PTO Availability Optional, 2,000 rpm Not Published Category, 3-Point Hitch Category I with extendable ball ends Category I Hitch Lift Capacity 2,646 lb 2,639 lb Hitch Lift Capacity (at 24”) 2,535 lb 1,558 lb Lift Control Type Position and draft control Not Published ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic Hydrostatic No. of Speeds 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Not Published Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Single stage dry type Not Published Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Not Published Brakes Internal wet disc brakes, individual control via independent foot pedals Dual brakes Seat Suspension & Adjustability Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering Comfortable, ergonomic operator's seat Front Axle Type Cast steel 4WD front axle with center drive line and bevel-gear final drives Selectable 2WD/4WD engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 122.0 in Not Published Overall Width 64.2 in Not Published Wheelbase 69.7 in Not Published Ground Clearance 15.4 in 12.8 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 99.2 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 91.3 in Not Published ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb 3,020 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Not Published R1 Agricultural - Front 8-16 Not Published R1 Agricultural - Rear 12.4x24 Not Published R3 Turf - Front 27x8.50-15 Not Published R3 Turf - Rear 41x14.00-20 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 17.5L-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System DL125: Pin-on (skid steer quick attach optional) Not Published Loader Model DL125 RL505 Loader Lift Height DL125: 106 in RL505: 101.5 in Loader Lift Capacity (Full Height) DL125: 1,660 lb RL505: 2,116 lb Loader Breakout Force DL125: 3,000 lb RL505: 3,435 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours
