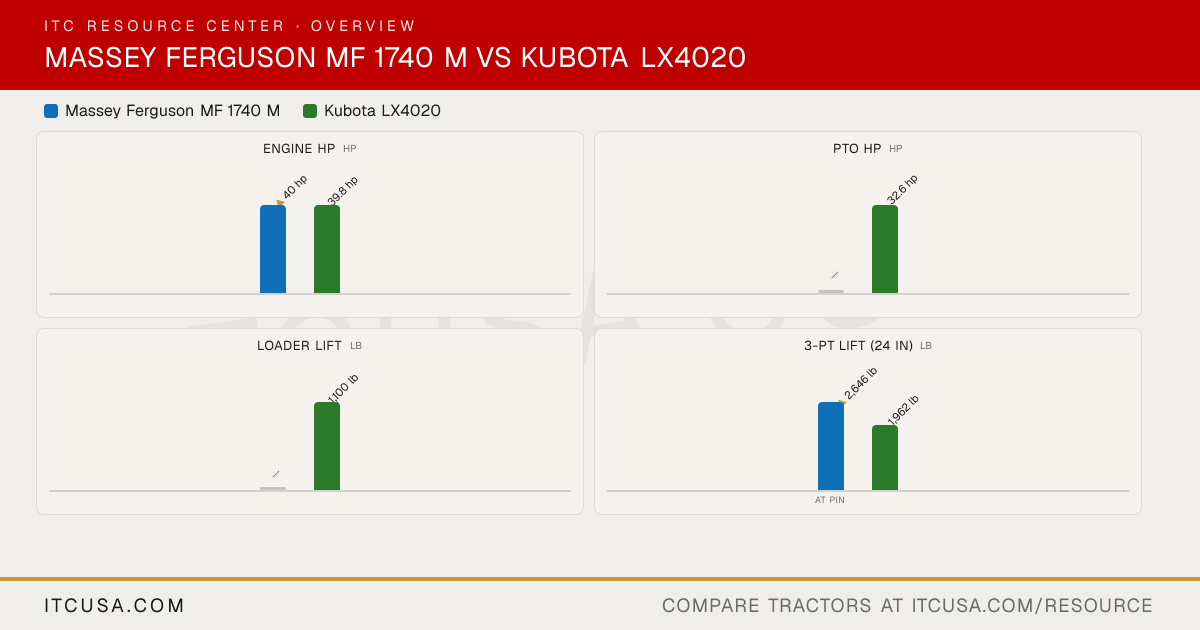

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey FergusonMF 1740 M
KubotaLX4020
PTO Power
Not Published
32.6 hp
Alternator
Not Published
Not Published
Air Cleaner
Not Published
6 inch paper filter (with dual element)
Engine Type
3-cylinder turbocharged diesel
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System
Not Published
Not Published
Displacement
111.4 in³
91.4 in³
No. of Cylinders
3
4
Rated Engine Speed
2500 rpm
2700 rpm
Cooling System Type
Not Published
Pressurized radiator
Engine Manufacturer
Massey Ferguson (AGCO)
Kubota
Engine Power (Gross)
40 hp
39.8 hp
Engine Emissions Constraints
Stage V
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Dual pump
Steering Flow
Not Published
Not Published
Implement Flow
11.0 gpm
Not Published
Total Hydraulic Flow
Not Published
9.5 gpm
Hydraulic System Type
Open-centre
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
9.5 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
2
Not Published
PTO Rear
540/750 (540E) rpm
540 rpm
PTO Type
Not Published
Independent
Lift Control Type
Not Published
Position control valve
Hitch Lift Capacity
2,646 lb
2535 lb
Mid-PTO Availability
Standard
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
Not Published
1962 lb
R3 Turf - Rear
315/80D-16
Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front
24X8.50-12
24X8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf
R4 Industrial - Rear
13.6-16
Not Applicable
R4 Industrial - Front
21X10.50-12
Not Applicable
R1 Agricultural - Rear
9.5-24
320/85D16
R1 Agricultural - Front
7-14
180/85D12
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
5.0 qt
Fuel Tank Capacity
9.5 gal
8.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
5.5 gal
Loader Lift Height
Not Published
87.6 in
Loader Breakout Force
Not Published
Not Published
Quick Attach Loader System
Not Published
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
