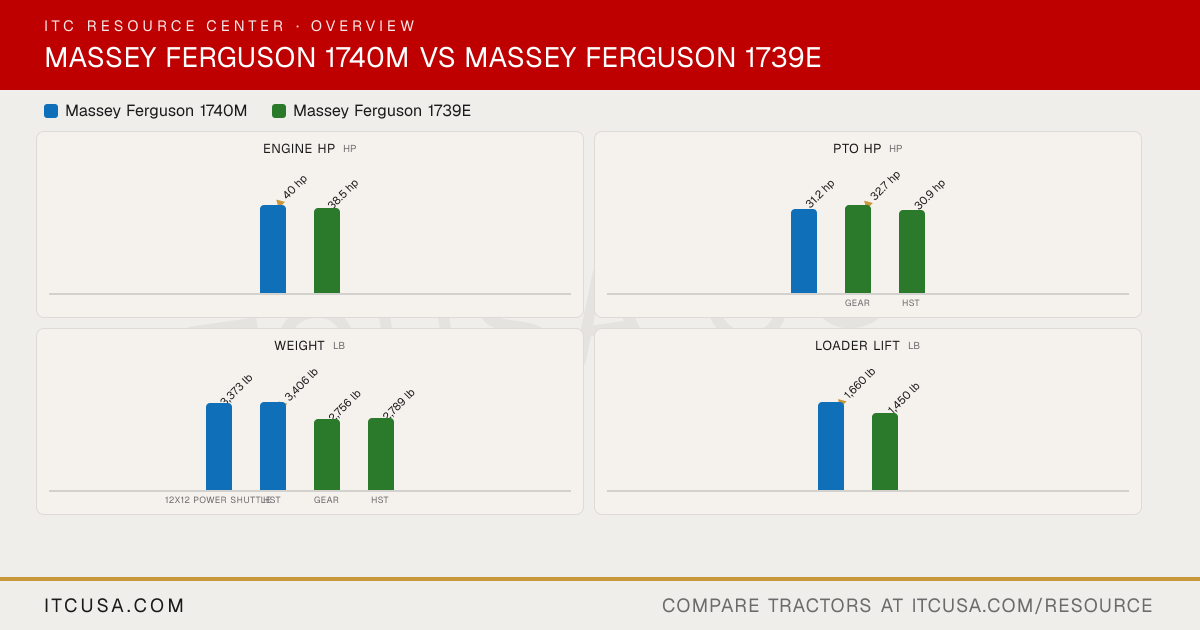

▶ EngineEngine Manufacturer Shibaura Shibaura Engine Model N3LDI-T N843T-F Engine Type 3-cylinder turbocharged intercooled diesel, liquid-cooled 3-cylinder diesel, liquid-cooled, turbocharged No. of Cylinders 3 3 Displacement 101.4 in³ 91.5 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 40 hp 38.5 hp PTO Power 31.2 hp Gear: 32.7 hp; HST: 30.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Common rail direct injection Turbocharged, indirect low-pressure injection Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Gear-type pump Implement Flow Not Published Not Published Steering Flow Not Published 4.1 gpm Total Hydraulic Flow Not Published 11.3 gpm Overall Hydraulic Pump Flow 12.6 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 12.1 gpm 7.2 gpm No. of Standard Remote Valves Cab: 1 pair Not Published No. of Optional Remote Valves Up to 3 Up to 2 ▶ Fluid CapacityFuel Tank Capacity 10.56 gal 10.04 gal Coolant Capacity 6.34 qt 1.32 gal Crankcase Capacity 4.86 qt 1.22 gal Transmission / Hydraulic System Capacity 12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal 10.04 gal Front Axle Fluid Capacity 7.9 qt 1.48 gal ▶ PTO & HitchPTO Type Independent, with soft-start feature Gear: independent; HST: transmission-driven with overrunning clutch PTO Rear 540 rpm (6-spline) 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional, 2,000 rpm Not Published Category, 3-Point Hitch Category I with extendable ball ends Category I Hitch Lift Capacity Not Published 2,205 lb Hitch Lift Capacity (at 24”) 2,535 lb 1,600 lb Lift Control Type Draft control optional Not Published ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic 9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic No. of Speeds 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Gear: 9F / 3R; HST: 3-range infinite Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Single stage dry type Gear: dry single disc Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Internal wet disc brakes, independent foot pedals Internal wet brakes, single brake pedal on HST, two brake pedals on gear models Seat Suspension & Adjustability Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering Suspended vinyl seat with retractable seatbelt, fixed steering wheel Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.2 in 52.4 in Wheelbase 69.7 in 65.9 in Ground Clearance 15.4 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 99.2 in 97.6 in Height to Top of ROPS (folded) Not Published 63.8 in Height to Top of Cab Model 91.3 in Not Published Overall Length 122.0 in 116 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb Gear: 2,756 lb; HST: 2,789 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf, Industrial, Snow R3 Turf, R4 Industrial R1 Agricultural - Front 8-16 Not Published R1 Agricultural - Rear 12.4x24 Not Published R3 Turf - Front 27x8.50-15 27x8.50-15 R3 Turf - Rear 41x14.00-20 38x14.00-20 R4 Industrial - Front 10-16.5 27x8.50-15 R4 Industrial - Rear 17.5L-24 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System DL125: Pin-on (skid steer quick attach optional) FLx2407: skid steer or pin-type implement attachments Loader Model DL125 FLx2407 Loader Lift Height DL125: 106 in (at pivot pin) FLx2407: 94.3 in (at pivot pin) Loader Lift Capacity (Full Height) DL125: 1,660 lb (at pivot pin, full height) FLx2407: 1,450 lb (at pivot pin, full height) Loader Breakout Force DL125: 3,000 lb (at pivot pin) FLx2407: 2,288 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty 5-year powertrain warranty
