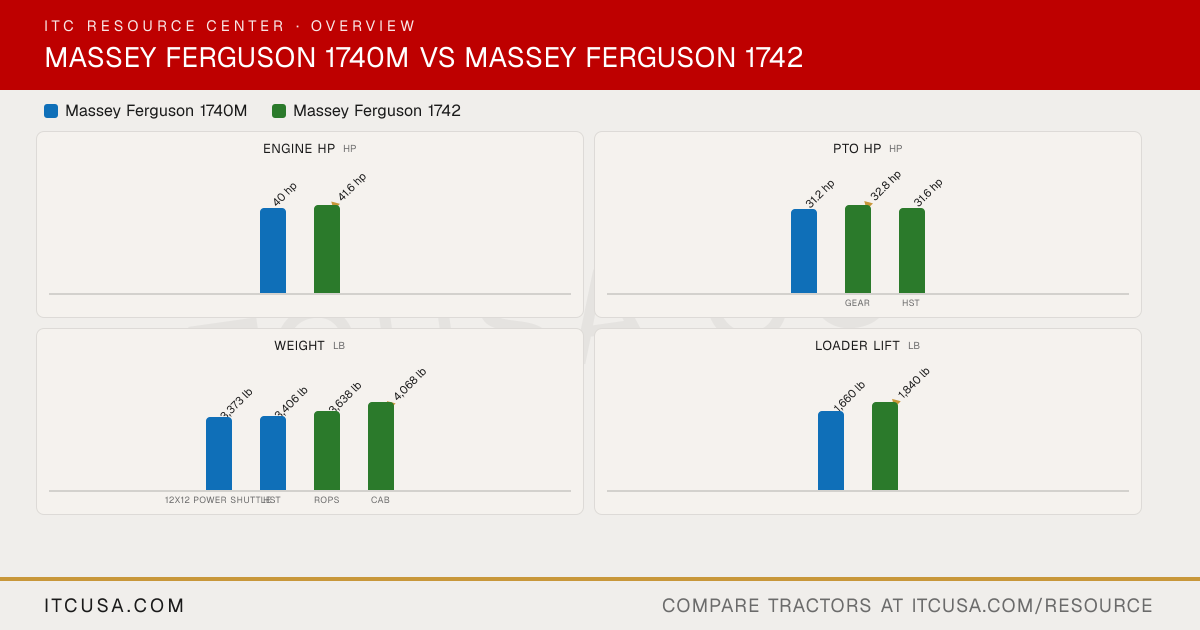

▶ EngineEngine Manufacturer Shibaura Mitsubishi Engine Model N3LDI-T K38 Engine Type 3-cylinder turbocharged intercooled diesel, liquid-cooled 3-cylinder turbocharged and intercooled diesel No. of Cylinders 3 3 Displacement 101.4 in³ 101 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 40 hp 41.6 hp PTO Power 31.2 hp Gear: 32.8 hp; HST: 31.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Common rail direct injection Common-rail, direct injection, electronic engine management Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Engine-driven gear-type pump Implement Flow Not Published 11.6 gpm Steering Flow Not Published 6.8 gpm Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 12.6 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 12.1 gpm 11.6 gpm No. of Standard Remote Valves Cab: 1 pair 1 No. of Optional Remote Valves Up to 3 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 10.56 gal 14.5 gal Coolant Capacity 6.34 qt Not Published Crankcase Capacity 4.86 qt Not Published Transmission / Hydraulic System Capacity 12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal Not Published Front Axle Fluid Capacity 7.9 qt Not Published ▶ PTO & HitchPTO Type Independent, with soft-start feature Independent, electro-hydraulically engaged PTO Rear 540 rpm (6-spline) 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional, 2,000 rpm Optional, 2000 rpm Category, 3-Point Hitch Category I with extendable ball ends Category I Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 2,535 lb 2,535 lb Lift Control Type Draft control optional Position control; draft control optional ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic 12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST No. of Speeds 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Power shuttle: 12F / 12R; Servo-HST: 3-range infinite Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Single stage dry type Wet multi-disc (power shuttle) Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Drop-axle rear with bull gear final drives Steering Power steering Power steering, tilt steering wheel Brakes Internal wet disc brakes, independent foot pedals Internal wet disc brakes, independent foot pedals Seat Suspension & Adjustability Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering Suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab) Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.2 in 64.2 in Wheelbase 69.7 in 71.1 in Ground Clearance 15.4 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 99.2 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 91.3 in 91.3 in Overall Length 122.0 in 130.7 in ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb ROPS: 3,638 lb; Cab: 4,068 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf, Industrial, Snow Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/75R16 front, 400/80R24 rear) R1 Agricultural - Front 8-16 8-16 R1 Agricultural - Rear 12.4x24 12.4-24 (13.6-24 optional) R3 Turf - Front 27x8.50-15 27x8.50-15 R3 Turf - Rear 41x14.00-20 41x14.00-20 R4 Industrial - Front 10-16.5 10-16.5 or 250/75R16 R4 Industrial - Rear 17.5L-24 17.5L-24 or 400/80R24 ▶ Loader & AttachmentsQuick Attach Loader System DL125: Pin-on (skid steer quick attach optional) DL125: universal skid steer or exclusive compact quick-attach implement tool carrier Loader Model DL125 DL125 Loader Lift Height DL125: 106 in (at pivot pin) DL125: 102.4 in (at pivot pin) Loader Lift Capacity (Full Height) DL125: 1,660 lb (at pivot pin, full height) DL125: 1,840 lb (at pivot pin, full height) Loader Breakout Force DL125: 3,000 lb (at pivot pin) DL125: 2,190 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty 5-year powertrain warranty
