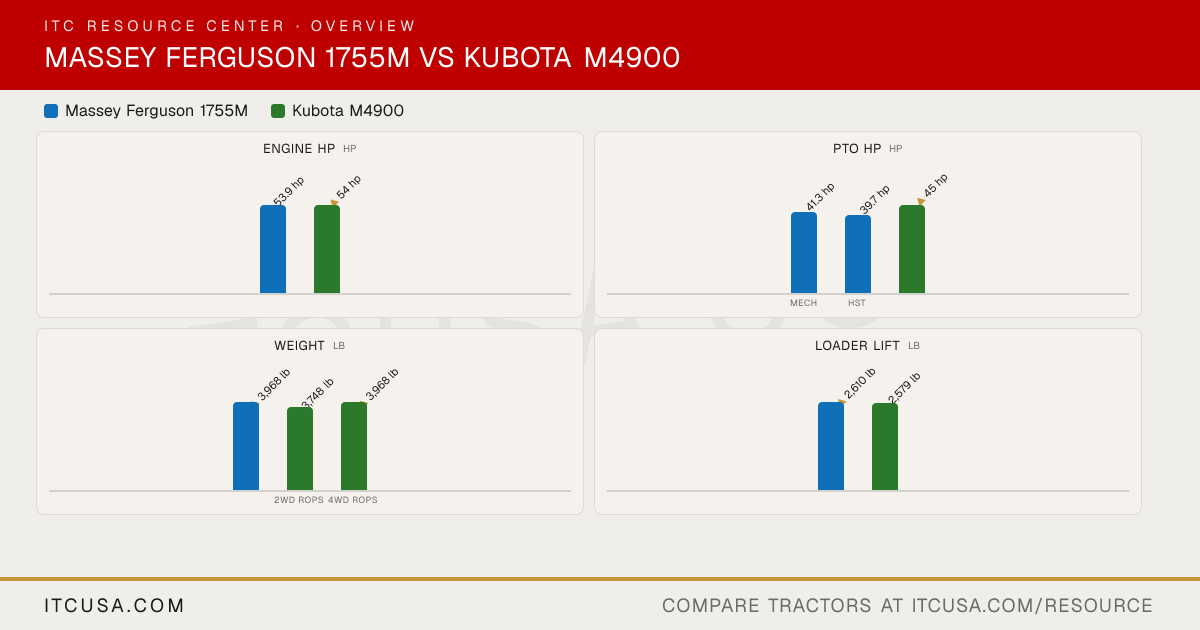

▶ EngineEngine Manufacturer Shibaura Kubota Engine Model N4LDI-TA F2803-ELA Engine Type 4-cylinder turbocharged intercooled diesel, liquid-cooled Vertical, water-cooled, 4-cycle diesel, 5-cylinder No. of Cylinders 4 5 Displacement 135.2 in³ 167.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 53.9 hp 54 hp PTO Power Mech: 41.3 hp; HST: 39.7 hp 45 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dual dry elements Fuel System Common rail direct injection Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Engine-driven gear-type pump Not Published Implement Flow Not Published Not Published Steering Flow Not Published Not Published Total Hydraulic Flow Not Published 17.1 gpm Overall Hydraulic Pump Flow 12.6 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 12.1 gpm Not Published No. of Standard Remote Valves Cab: 1 pair 1 No. of Optional Remote Valves Up to 3 Not Published ▶ Fluid CapacityFuel Tank Capacity 14 gal ROPS: 17.2 gal; Cab: 25.1 gal Coolant Capacity 7.08 qt 7.7 qt Crankcase Capacity 6.87 qt 8.5 qt Transmission / Hydraulic System Capacity Power Shuttle: 10.04 gal; HST: 9.25 gal Not Published Front Axle Fluid Capacity 9 qt Not Published ▶ PTO & HitchPTO Type Independent, with soft-start feature Live PTO Rear 540 rpm (6-spline) 540 rpm Mid-PTO Availability Optional, 2,000 rpm Not Published Category, 3-Point Hitch Category I with extendable ball ends Category II/I Hitch Lift Capacity Not Published 4,200 lb Hitch Lift Capacity (at 24”) 3,086 lb 3,307 lb Lift Control Type Draft control optional Position, draft and mix control ▶ Transmission & DrivetrainTransmission Type 12 x 12 power shuttle or 3-range hydrostatic Synchronized shuttle, 8F/8R (12F/12R with creeper) No. of Speeds 12 x 12 Power Shuttle (3 ranges, 4 gears); HST: 3-range, infinite speeds in each range 8F/8R (12F/12R with creeper) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Single stage dry type Not Published Differential Lock & Limited Slip Options Mechanical engagement via right side heel pedal Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Internal wet disc brakes, independent foot pedals Mechanical wet disc Seat Suspension & Adjustability Suspended seat with armrests and seat belts (vinyl on ROPS, cloth on cab), tilt steering Not Published Front Axle Type Cast-steel 4WD front axle, center driveline, bevel-gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 65.4 in 67.2 in (minimum) Wheelbase 77.9 in ROPS: 78.7 in; Cab: 81.7 in Ground Clearance 14.8 in 16.9 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.4 in 93.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in 98.1 in Overall Length 132.3 in 2WD ROPS: 137.6 in; 4WD ROPS: 134.1 in; 2WD cab: 140.6 in; 4WD cab: 137.1 in ▶ WeightTractor Weight (Base) 12x12 Power Shuttle: 3,968 lb (ROPS base weight) 2WD ROPS: 3,748 lb; 4WD ROPS: 3,968 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options AG, Turf, Industrial, Snow Standard: 6.5-16 front (2WD), 9.5-22 front (4WD), 14.9-28 rear R1 Agricultural - Front 9.5x16 8.3-24 R1 Agricultural - Rear 13.6x28 14.9-28 R3 Turf - Front 27x10.50-15 2WD: 9.00-10; 4WD: 29x12.5-15 R3 Turf - Rear 44x18.00-20 21.5L-16.1 R3 R4 Industrial - Front 10-16.5 12.5/80-18 R4 R4 Industrial - Rear 17.5L-24 16.9-24 R4 ▶ Loader & AttachmentsQuick Attach Loader System DL135: Skid steer quick attach Not Published Loader Model DL135 LA1002 Loader Lift Height DL135: 111 in (at pivot pin) LA1002: 115.6 in Loader Lift Capacity (Full Height) DL135: 2,610 lb (at pivot pin, full height) LA1002: 2,579 lb (at pivot pin) Loader Breakout Force DL135: 4,000 lb (at pivot pin) LA1002: 3,330 lbf ▶ WarrantyWarranty Length & Coverage Five-year powertrain warranty Not Published
