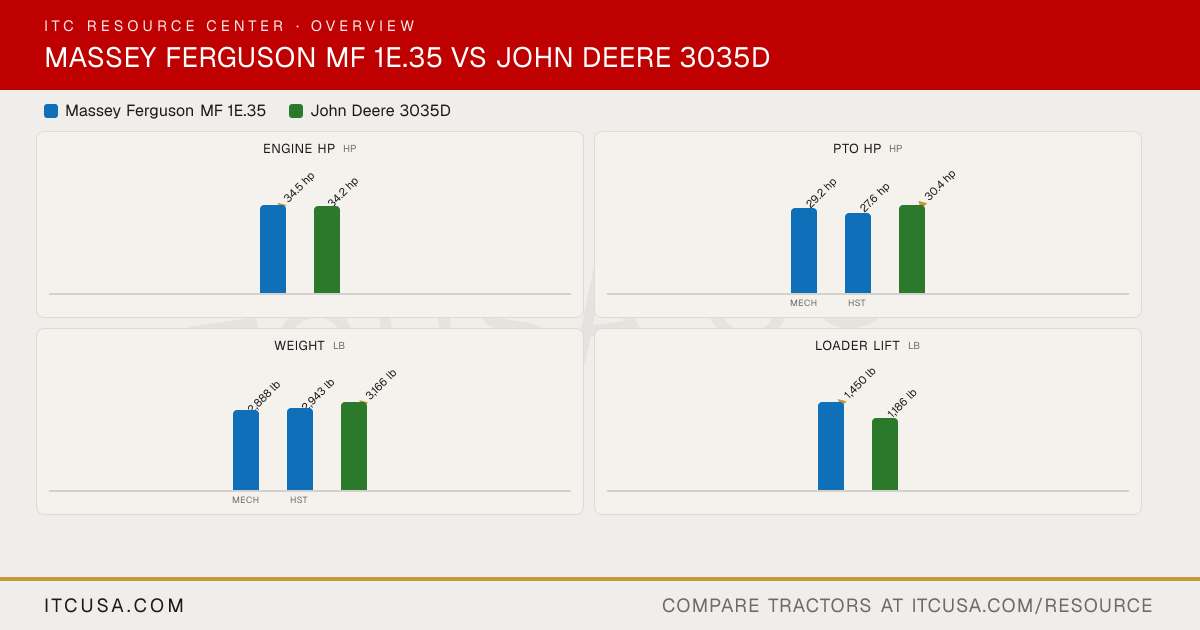

▶ EngineEngine Manufacturer Iseki Yanmar Engine Model Not Published 3TNV88C-KJPT Engine Type 3-cylinder, turbocharged diesel 4-cycle, inline, water-cooled diesel, naturally aspirated No. of Cylinders 3 3 Displacement 111.7 in³ 100.2 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 34.5 hp 34.2 hp PTO Power Mech: 29.2 hp; HST: 27.6 hp 30.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid Air Cleaner Not Published Dry Fuel System Not Published Direct injection Alternator Not Published 55 A, 12 V ▶ HydraulicsPump Type Two gear-type pumps 2 single-section external gear pumps, 1 on each side of the engine timing-gear cover Implement Flow 7.6 gpm 5.9 gpm Steering Flow 3.8 gpm 4.4 gpm Total Hydraulic Flow 11.4 gpm (7.6 + 3.8, computed) 10.3 gpm Overall Hydraulic Pump Flow 11.4 gpm (7.6 + 3.8, computed) 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None No. of Optional Remote Valves Not Published Up to two (optional) ▶ Fluid CapacityFuel Tank Capacity 10 gal 9.7 gal Coolant Capacity Not Published 1.2 gal Crankcase Capacity Not Published 1.1 gal Transmission / Hydraulic System Capacity Not Published 9.2 gal Front Axle Fluid Capacity Not Published 1.0 gal ▶ PTO & HitchPTO Type Mech: Independent; HST: Transmission Mechanical control; transmission clutch; wet disk brake (mid/rear PTO) PTO Rear 540 rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,205 lb Not Published Hitch Lift Capacity (at 24”) 1,598 lb 1,670 lb Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic 8F/8R synchromesh shuttle shift gear transmission No. of Speeds Mech: 8 forward and 8 reverse; HST: 3-range hydrostatic 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Single dry traction clutch Differential Lock & Limited Slip Options Not Published Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Not Published Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published MFWD (4WD) Front Axle Rating Not Published 1,940 lb Drawbar Capacity Not Published 1,102 lb (static vertical load) ▶ Dimensions & ManeuverabilityOverall Width 52.4 in 57.3 in Wheelbase Not Published 62 in Ground Clearance 11 in 14 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 97.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 116.5 in 111.2 in ▶ WeightTractor Weight (Base) Mech: 2,888 lb; HST: 2,943 lb 2,800 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 7-14 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front Not Published 27X8.5-15 R3 Turf - Rear Not Published 41X14-20 R4 Industrial - Front Not Published 25X8.5-14 R4 Industrial - Rear Not Published 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer quick attach Quick-change attachment carrier Loader Model FL2407X 300E Loader Lift Height FL2407X: 94.3 in (at pivot pin) 84 in (at pivot pin) Loader Lift Capacity (Full Height) FL2407X: 1,450 lb (to maximum height, at pivot pin) 1,186 lb (at pivot pin) Loader Breakout Force FL2407X: 2,288 lb (at pivot pin) 1,704 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
