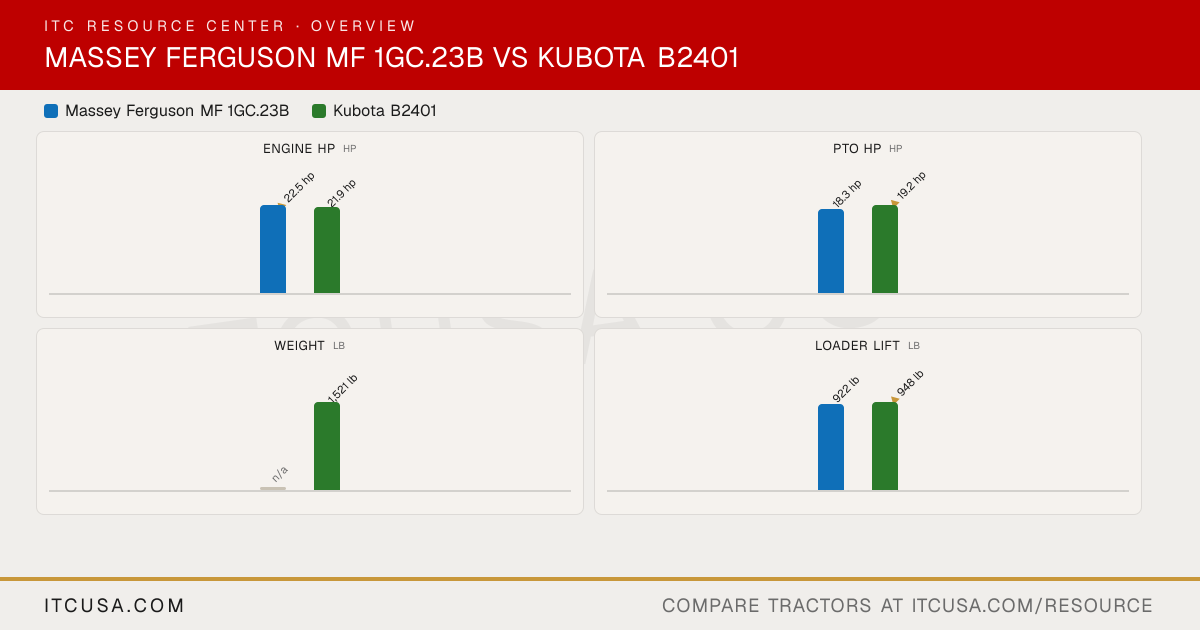

▶ EngineEngine Manufacturer Iseki Kubota Engine Model Not Published D1105 Engine Type 3-cylinder, liquid-cooled diesel E-TVCS, liquid cooled, 3-cylinder diesel No. of Cylinders 3 3 Displacement 68.5 in³ 68.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 22.5 hp 21.9 hp PTO Power 18.3 hp 19.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid cooled Liquid Cooled Air Cleaner Not Published Dual paper element Fuel System Not Published Not Published Alternator Not Published 40 A ▶ HydraulicsPump Type Not Published Dual pump Implement Flow Not Published 4.4 gpm Steering Flow Not Published 2.6 gpm Total Hydraulic Flow 6 gpm 7.0 gpm Overall Hydraulic Pump Flow 6 gpm 7.0 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 6.1 gal Coolant Capacity Not Published 4.0 qt Crankcase Capacity Not Published 3.3 qt Transmission / Hydraulic System Capacity Not Published 3.3 gal Front Axle Fluid Capacity Not Published 0.9 gal ▶ PTO & HitchPTO Type Independent Transmission driven with one way clutch PTO Rear 540 rpm, 1.375 in 6-spline 540, 1000 rpm Mid-PTO Availability Independent, 2000 rpm 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,191 lb 1653 lb Hitch Lift Capacity (at 24”) 661 lb 1290 lb Lift Control Type Not Published Position control valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic Gear (9 Forward, 3 Reverse) No. of Speeds Infinite forward and reverse (2-range) 9 Forward, 3 Reverse Max Travel Speed (Forward) Not Published 11.7 mph Max Travel Speed (Reverse) Not Published 6.0 mph Clutch Not Published Dry single plate Differential Lock & Limited Slip Options Not Published Standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Integral type power steering Brakes Not Published Multi-plate wet disc Seat Suspension & Adjustability Not Published Fore and aft slide adjustment (position adjust lever) Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 660 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 93.9 in (without 3-point hitch) Overall Width Not Published 44.3 in Wheelbase Not Published 61.4 in Ground Clearance Not Published 12.0 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 85.8 in 83.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Not Published 1521 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear; R14: 23x8.50-12 front, 12-16.5 rear R1 Agricultural - Front 18x8.50-10 6-12 R1 Agricultural - Rear 26x12.00-12 9.5-16 R3 Turf - Front Not Published 23x8.50-12 R3 Turf - Rear Not Published 33x12.5-15 R4 Industrial - Front Not Published 23x8.50-12 R4 Industrial - Rear Not Published 12-16.5 ▶ Loader & AttachmentsQuick Attach Loader System Skid Steer Quick Attach LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional) Loader Model FL1805 LA435 Loader Lift Height FL1805: 74 in 78.5 in Loader Lift Capacity (Full Height) FL1805: 922 lb 948 lb Loader Breakout Force FL1805: 1,392 lb 2,146 lbf ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
