Massey Ferguson MF 1M.25 vs Kubota BX2680 | Side-by-side comparison | ITC Resource Center
Compare Tractors

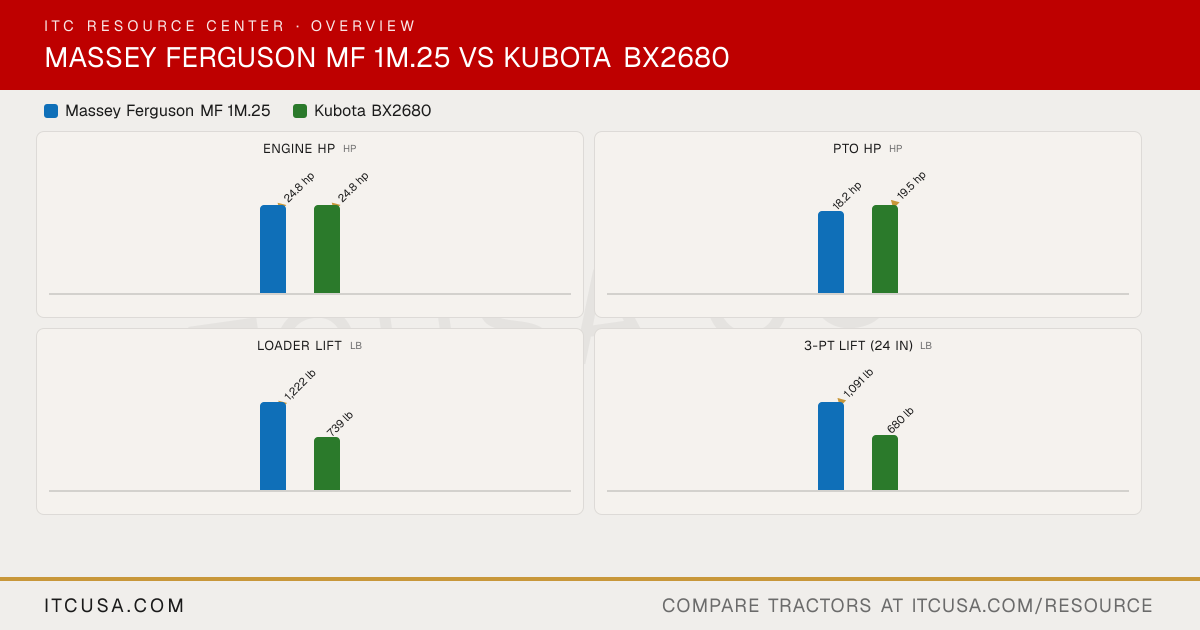

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Massey FergusonMF 1M.25
KubotaBX2680
PTO Power
18.2 hp
19.5 hp
Alternator
Not Published
40 A, 12 V
Air Cleaner
Not Published
Sheet net and replaceable treated paper element, spin on oil filter
Engine Type
3-cylinder diesel
Liquid cooled, 4-cycle, diesel
Fuel System
Not Published
Direct injection
Displacement
91.4 in³
61.1 in³
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
3200 rpm
Cooling System Type
Not Published
Water with pressurized radiator, reverse air-flow design
Engine Manufacturer
Massey Ferguson (AGCO)
Kubota
Engine Power (Gross)
24.8 hp
24.8 hp
Engine Emissions Constraints
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Open center tandem pump gear type
Steering Flow
3.2 gpm
1.0 gpm
Implement Flow
5.5 gpm
5.2 gpm
Total Hydraulic Flow
8.8 gpm
6.2 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
8.8 gpm
6.2 gpm
No. of Optional Remote Valves
Not Published
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
2
Not Published
PTO Rear
540 rpm
STD (540 rpm)
PTO Type
Independent
Live independent PTO (with hydraulic clutch)
Lift Control Type
Not Published
Not Published
Hitch Lift Capacity
1,433 lb
Not Published
Mid-PTO Availability
Optional (2,000 rpm)
STD (2500 rpm)
Category, 3-Point Hitch
Category I
SAE Category I Optional
Hitch Lift Capacity (at 24”)
1,091 lb
680 lb
R3 Turf - Rear
315X75D-15
26X12-12
R3 Turf - Front
24X8.50-12
18X8.5-10
Tire Size & Options
R1 Agricultural, R3 Turf
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
Not Published
26X12-12
R4 Industrial - Front
Not Published
18X8.5-10
R1 Agricultural - Rear
9.5-18
26X12-12
R1 Agricultural - Front
6.00-12
18X8.5-10
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
7.4 gal
6.6 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
83 in
71.0 in
Loader Breakout Force
1,822 lb
1,286 lbf (bucket pivot pin)
Quick Attach Loader System
FL.2106: Skid Steer Tool Carrier
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)
1,222 lb
739 lb
Clutch
Not Published
Dry type single plate - Main clutch 9.45 in.
No. of Speeds
3 Ranges
2 Range (Low-High)
Transmission Type
Hydrostatic
Hydrostatic transmission
Max Travel Speed (Forward)
Not Published
8.1 mph
Max Travel Speed (Reverse)
Not Published
6.2 mph
Differential Lock & Limited Slip Options
Differential lock (LHS pedal)
Rear differential lock standard
Brakes
Internal wet disc
Mechanical, wet disc type
Steering
Not Published
Integral power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
4WD: Bevel gear front axle, non-adjustable tread spacing
