Tractor Comparison
Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
—
MasseyFergusonMF268XTRA
—
MasseyFergusonMF1755M
Comparison loaded for 2 tractors.
Spec
Massey FergusonMF 268 XTRA
Massey FergusonMF 1755 M
PTO Power
Not Published
Not Published
Alternator
Not Published
Not Published
Air Cleaner
Dry Type / Oil Bath
Not Published
Engine Type
4-cylinder diesel
4-cylinder turbocharged diesel
Fuel System
Not Published
Not Published
Displacement
219.7 in³
148.5 in³
No. of Cylinders
4
4
Rated Engine Speed
2200 rpm
2500 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
Simpson
Massey Ferguson (AGCO)

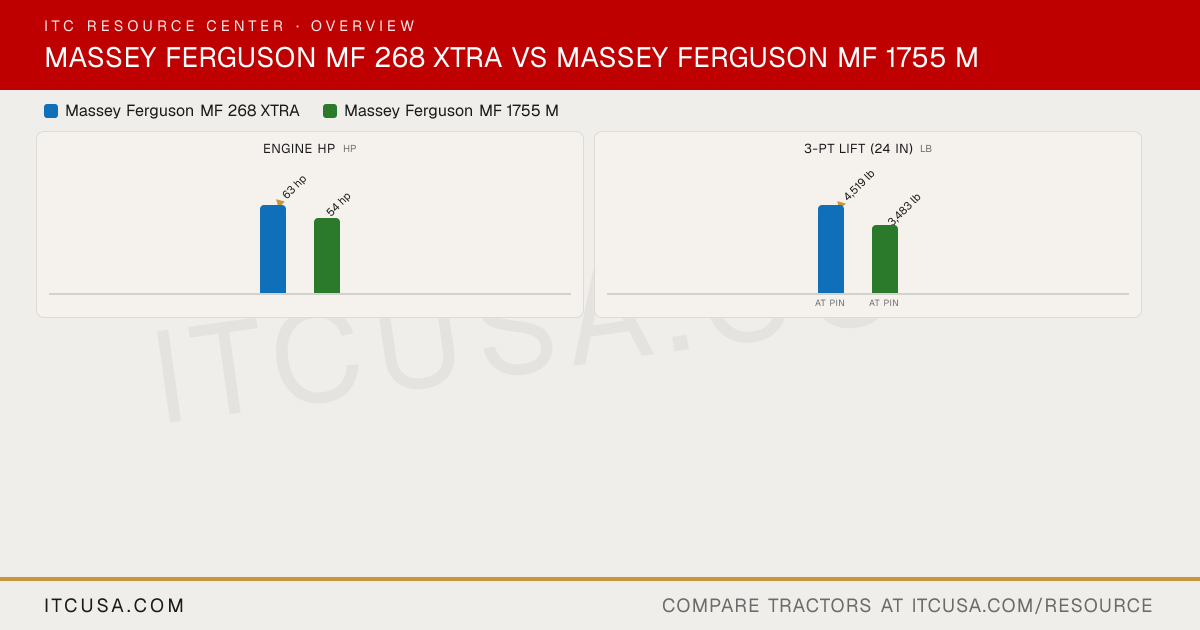

Engine Power (Gross)
63 hp
54 hp
Engine Emissions Constraints
Not Published
Stage V
Tractor Weight with Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Pump Type
Scotch yoke pump (rear axle mounted)
Not Published
Steering Flow
5.3 gpm
Not Published
Implement Flow
4.8 gpm
12.7 gpm
Total Hydraulic Flow
10.0 gpm
Not Published
Hydraulic System Type
Open centre
Open-centre
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
10.0 gpm
Not Published
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
PTO Rear
540 rpm
540/750 (540E) rpm
PTO Type
Live PTO
Not Published
Lift Control Type
Ferguson System
Not Published
Hitch Lift Capacity
4,519 lb
3,483 lb
Mid-PTO Availability
Not Published
Standard
Category, 3-Point Hitch
Not Published
Category I
Hitch Lift Capacity (at 24”)
Not Published
Not Published
R3 Turf - Rear
Not Published
475/65D-20
R3 Turf - Front
Not Published
29X12.00-15
Tire Size & Options
R1 Agricultural
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
Not Published
420/70R24
R4 Industrial - Front
Not Published
280/70R16
R1 Agricultural - Rear
16.9X28
13.6-28
R1 Agricultural - Front
2WD: 7.50X16; 4WD: 9.5X24
9.5-16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
15.9 gal
14.0 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
Not Published
Not Published
Loader Breakout Force
Not Published
Not Published
Price for Backhoe Option
Not Published
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
Not Published
Not Published
Loader Lift Capacity (Full Height)
Not Published
Not Published
Clutch
Dual Dry Plate
Not Published
No. of Speeds
8F / 2R
12F / 12R
Transmission Type
Sliding mesh gearbox
Mechanical
Max Travel Speed (Forward)
18.6 mph
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Mechanical differential lock (foot pedal)
Differential lock
Brakes
Oil immersed, mechanical actuation
Not Published
Steering
Hydrostatic
Not Published
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
80.7 in
78.3 in
Overall Width
Not Published
62.4-68.7 in (1,585-68.7 in)
Ground Clearance
Not Published
Not Published
Height to Top of ROPS
99.2 in
Not Published
Height to Top of Cab Model
Not Published
92.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Overall Length with 3-Point Hitch
153.1 in
139.6 in
Financing Options
0% for up to 60 Months* (Offer valid through February 28, 2026)
0% for up to 60 Months* (Offer valid through February 28, 2026)
