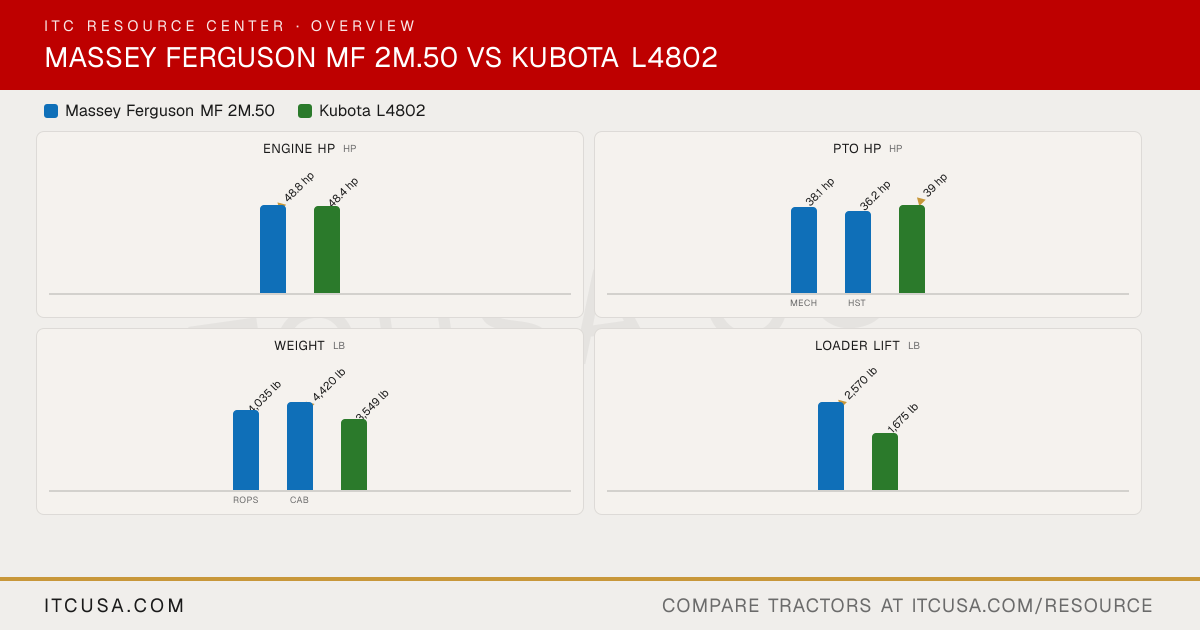

▶ EngineEngine Manufacturer Iseki Kubota Engine Model E4FH V2403-CR-E5 Engine Type 4-cylinder, turbocharged diesel Direct injection, vertical, water-cooled 4-cycle, diesel No. of Cylinders 4 4 Displacement 148.3 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48.8 hp 48.4 hp PTO Power Mech: 38.1 hp; HST: 36.2 hp 39 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Water-cooled Air Cleaner Dry Dry type, primary and secondary element Fuel System Common-rail, direct injection, electronic engine management Direct injection Alternator Not Published 45 A, 12 V ▶ HydraulicsPump Type Two gear-type pumps Not Published Implement Flow Mech: 12.7 gpm; HST: 12.6 gpm 7.8 gpm Steering Flow 7.1 gpm 4.7 gpm Total Hydraulic Flow Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) 12.5 gpm (7.8 + 4.7, computed) Overall Hydraulic Pump Flow Mech: 19.8 gpm (12.7 + 7.1, computed); HST: 19.7 gpm (12.6 + 7.1, computed) 12.5 gpm (7.8 + 4.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Optional: double-acting valve, or double-acting valve with float position (float valve as second segment only) ▶ Fluid CapacityFuel Tank Capacity 14.0 gal 13.5 gal Coolant Capacity 7.61 qt 6.9 qt Crankcase Capacity 7.82 qt 8.7 qt Transmission / Hydraulic System Capacity Mech: 10.04 gal; HST: 9.25 gal 10.6 gal Front Axle Fluid Capacity 9 qt 6.9 qt ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Live independent PTO with hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional Not Published Category, 3-Point Hitch Category I & II SAE Category I Hitch Lift Capacity 3,483 lb 2,870 lb Hitch Lift Capacity (at 24”) 3,086 lb 2,320 lb Lift Control Type Position control with optional draft control Position control ▶ Transmission & DrivetrainTransmission Type Mech: 12x12 power shuttle; HST: 3-range Servo-HST Hydrostatic transmission (3-range) No. of Speeds Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) 3-range Max Travel Speed (Forward) Not Published 15.8 mph Max Travel Speed (Reverse) Not Published 14.2 mph Clutch Not Published Not Applicable Differential Lock & Limited Slip Options Not Published Rear differential lock, pedal operated ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc Mechanical, wet disc type Seat Suspension & Adjustability Not Published Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type Four-wheel drive Cast-iron front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,430 lb ▶ Dimensions & ManeuverabilityOverall Width 70.1 in 62.2 in Wheelbase Not Published 72.6 in Ground Clearance 14.0 in 15.2 in Min. Turn Radius without Brakes Not Published 8.5 ft (with brake applied) Height to Top of ROPS 102.4 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.9 in Not Published Overall Length 132.3 in 120.3 in (without 3-point hitch) ▶ WeightTractor Weight (Base) ROPS: 4,035 lb; Cab: 4,420 lb 3,549 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Agricultural; Turf; Industrial (R4) R1 Agricultural - Front 9.5-16 8.3-16 R1 Agricultural - Rear 13.6-28 standard; 16.9-24 optional 14.9-24 R3 Turf - Front 27x10.50-15 27X10.5-15 R3 Turf - Rear 44x18.00-20 44X18-20 R4 Industrial - Front 10-16.5 10.0-16.5 R4 Industrial - Rear 14.9-24; 17.5L-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer LA766 2-Lever Quick Coupler Loader Model FL2814 LA766 Loader Lift Height FL2814: 111 in (at pivot pin) 105.2 in (at pivot pin) Loader Lift Capacity (Full Height) FL2814: 2,570 lb (at pivot pin) 1,676 lb (at pivot pin, max. height) Loader Breakout Force FL2814: 3,910 lb (at pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
