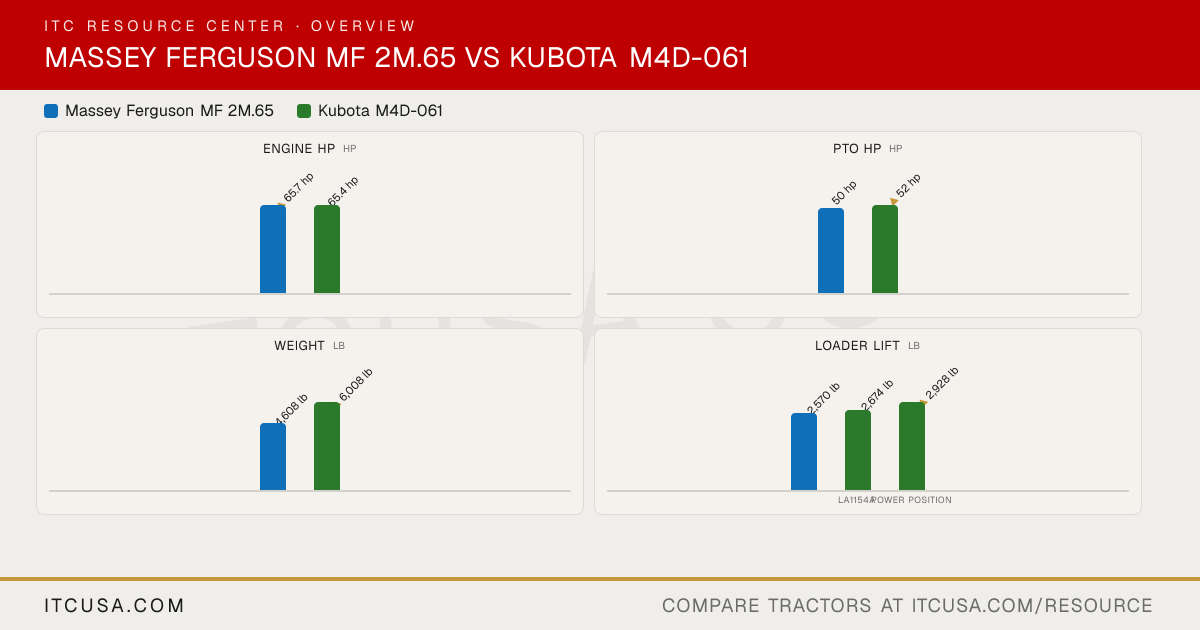

Massey Ferguson MF 2M.65 vs Kubota M4D-061 | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Live-independent PTO, electro-hydraulic clutch with brake
PTO Rear
540 rpm
540/540E rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I & II
I / II
Hitch Lift Capacity
3,483 lb
4189 lb
Hitch Lift Capacity (at 24”)
3,483 lb
3307 lb
Lift Control Type
Not Published
Position, draft (top link sensing) & mixed control
Transmission Type
3-range Servo-HST with 2 stages (Hi and Lo), electronically controlled
12-speed electro-hydraulic shuttle (option: 18-speed with creep)
No. of Speeds
Not Published
F12/R12 (option: F18/R18 with creep)
Max Travel Speed (Forward)
Not Published
24.9 mph
Max Travel Speed (Reverse)
Not Published
24.7 mph
Clutch
Not Published
Multiple wet disc
Differential Lock & Limited Slip Options
Not Published
Front limited slip differential; Rear differential lock (mechanical)
Frame Type
Not Published
Ultra Grand Cab II
Steering
Not Published
Hydrostatic power steering
Brakes
Not Published
Hydraulic wet disc
Seat Suspension & Adjustability
Not Published
Deluxe mechanical suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air ride seat
Front Axle Type
Not Published
Bevel gear type (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
2200 lb
Overall Length with 3-Point Hitch
132.3 in
142 in
Overall Width
70.1 in
75.6 in
Wheelbase
Not Published
84.1 in
Ground Clearance
14.0 in
18.1 in
Min. Turn Radius without Brakes
Not Published
11.8 ft
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
92.9 in
101 in
Tractor Weight (Base)
4,608 lb
6008 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Standard: 320/70R24 front, 420/75R34 rear
R1 Agricultural - Front
Not Published
320/70R24
R1 Agricultural - Rear
Not Published
420/75R34
R3 Turf - Front
Not Published
9.50-24
R3 Turf - Rear
Not Published
18.4-26
R4 Industrial - Front
Not Published
14-17.5
R4 Industrial - Rear
Not Published
16.9-24
Quick Attach Loader System
Skid steer
LA1154A: 2-Lever Quick Coupler
Loader Model
FL2814
LA1154A
Loader Lift Height
FL2814: 111 in
LA1154A: Height position: 133.0 in; Power position: 117.6 in
Loader Lift Capacity (Full Height)
FL2814: 2,570 lb
LA1154A: Height position: 2674 lb; Power position: 2928 lb
Loader Breakout Force
FL2814: 3,910 lb
LA1154A: Height position: 4079 lbf; Power position: 5128 lbf
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
