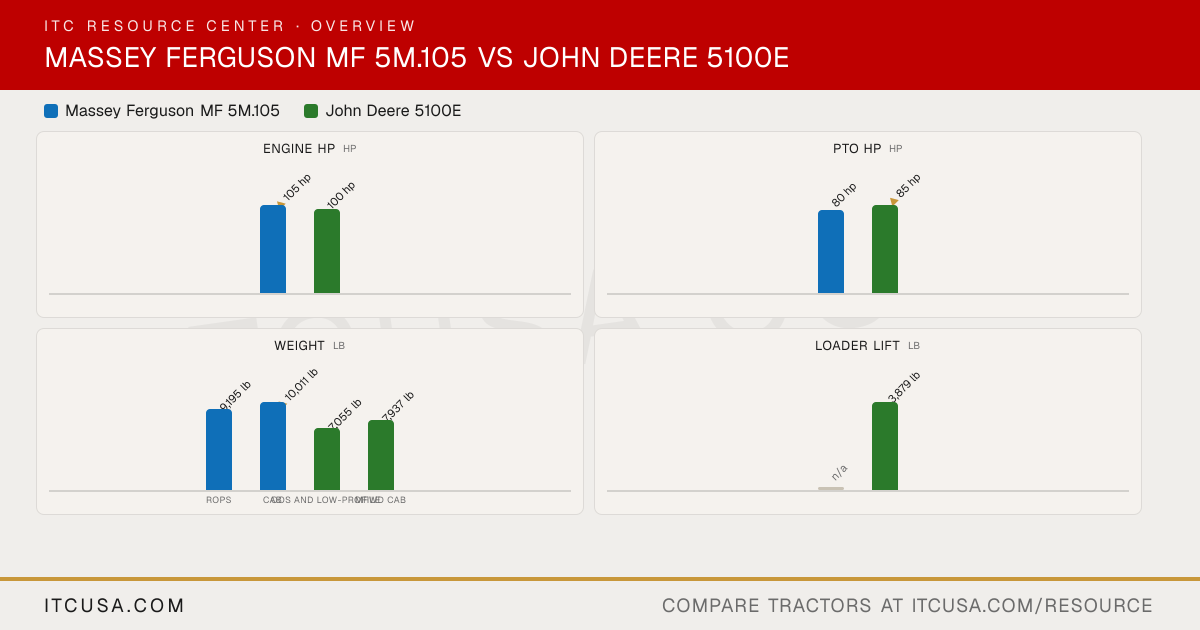

▶ EngineEngine Manufacturer AGCO Power John Deere Engine Model Not Published PowerTech PWL 4045 Engine Type 4-cylinder, turbocharged intercooled diesel Diesel, turbocharged, liquid-cooled No. of Cylinders 4 4 Displacement 268.5 in³ 276 in³ Rated Engine Speed 2200 rpm 2400 rpm Engine Power (Gross) 105 hp 100 hp PTO Power 80 hp 85 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System High-pressure common-rail direct fuel injection High Pressure Common Rail Alternator Platform: 80 A; Cab: 120 A 90 A ▶ HydraulicsPump Type Engine-driven gear pump Tandem gear pump (implement + steering) Implement Flow 15.3 gpm 15.9 gpm Steering Flow 8.5 gpm 6.6 gpm Total Hydraulic Flow 23.8 gpm (15.3 + 8.5, computed) 22.5 gpm Overall Hydraulic Pump Flow 23.8 gpm (15.3 + 8.5, computed) 22.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow 26 gpm Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 3 ▶ Fluid CapacityFuel Tank Capacity 52.8 gal 30 gal Coolant Capacity Not Published Cab: 3.0 gal; OOS and Low-Profile: 2.5 gal Crankcase Capacity Not Published 3.2 gal (with filter) Transmission / Hydraulic System Capacity Not Published 11.5 gal Front Axle Fluid Capacity Not Published MFWD differential housing: 1.3 gal; MFWD wheel hub (each): 0.74 qt ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Independent, electrohydraulic engagement PTO Rear 540 / 540E / 1000 rpm 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category 2 Hitch Lift Capacity 9,480 lb Not Published Hitch Lift Capacity (at 24”) 7,500 lb 3,213 lb Lift Control Type Not Published Position control with top link draft sensing ▶ Transmission & DrivetrainTransmission Type 12 x 12: 2-range power shuttle with electrohydraulic shuttle lever; Dyna-4: semi-powershift PowrReverser No. of Speeds 12 x 12: 12F/12R; Dyna-4: 16F/16R 12F/12R (standard); 24F/12R (optional) Max Travel Speed (Forward) Not Published 12F/12R: 21.8 mph; 24F/12R: 26.0 mph Max Travel Speed (Reverse) Not Published 12F/12R: 23.8 mph; 24F/12R: 23.9 mph Clutch Multidisk wet clutch with electrohydraulic power shuttle lever Wet traction clutch Differential Lock & Limited Slip Options Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch Mechanical ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Hydraulic wet disk brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability ROPS: mechanical spring suspension with armrests; Cab: air-ride swivel seat Not Published Front Axle Type Heavy-duty 4WD front axle MFWD (4-wheel drive only) Front Axle Rating Not Published 6,615 lb Drawbar Capacity Not Published Standard: 2,755 lb; 2,425 lb (350/15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350/15.7 in extended) ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 165.6 in 154.5 in Overall Width Dyna-4 cab: 74.9 in; 12 x 12 cab: 79.8 in 69.6 in Wheelbase 95.7 in 90.6 in Ground Clearance 20.3 in ROPS: 17 in; Cab: 15.2 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 100.8 in Height to Top of ROPS (folded) Not Published 78.6 in Height to Top of Cab Model 105.7 in 101.2 in ▶ WeightTractor Weight (Base) ROPS: 9,195 lb; Cab: 10,011 lb OOS and Low-Profile: 7,055 lb; MFWD Cab: 7,937 lb Weight with ROPS and Loader Not Published 7,055 lb Weight with Cab and Loader Not Published 7,937 lb ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4-24 R1 Agricultural - Rear Not Published 18.4-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published H260 Loader Model Not Published H260NSL Loader Lift Height Not Published 137 in Loader Lift Capacity (Full Height) Not Published 3,879 lb Loader Breakout Force Not Published 6,521 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
