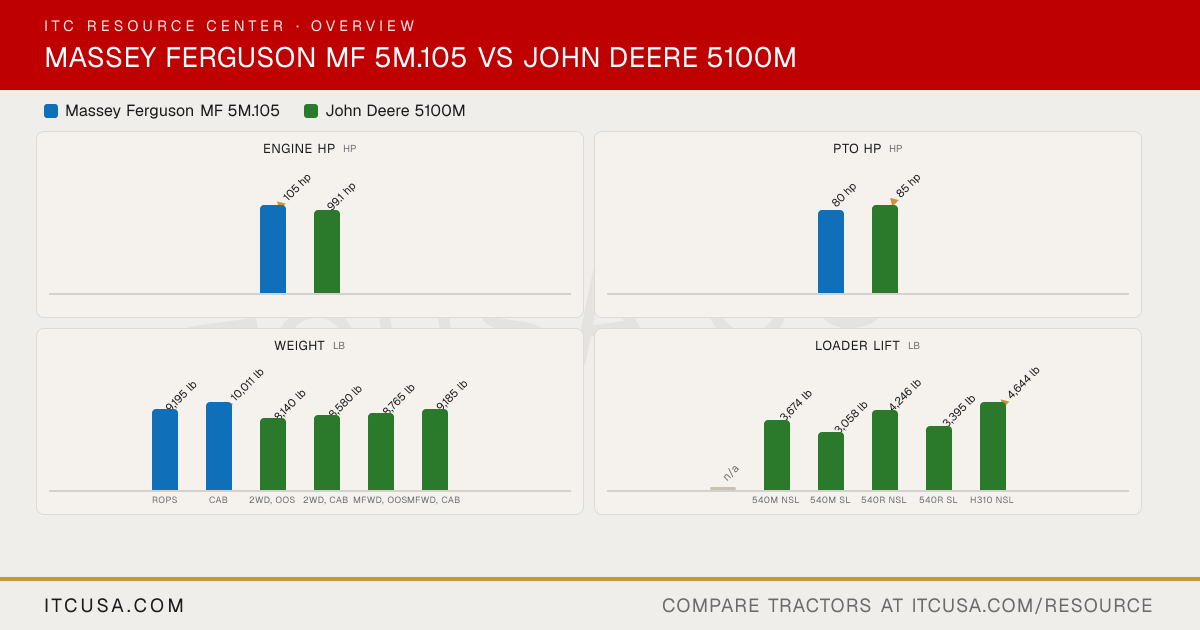

▶ EngineEngine Manufacturer AGCO Power John Deere Engine Model Not Published PowerTech 4045 PWL Engine Type 4-cylinder, turbocharged intercooled diesel Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 4 4 Displacement 268.5 in³ 276 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 105 hp 99.1 hp PTO Power 80 hp 85 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid-cooled (Cool-Gard II coolant) Air Cleaner Not Published Dry air cleaner, primary and secondary elements Fuel System High-pressure common-rail direct fuel injection High Pressure Common Rail (HPCR) electronic fuel injection Alternator Platform: 80 A; Cab: 120 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Engine-driven gear pump Tandem gear pump Implement Flow 15.3 gpm 18.4 gpm Steering Flow 8.5 gpm 6.3 gpm Total Hydraulic Flow 23.8 gpm (15.3 + 8.5, computed) 24.7 gpm Overall Hydraulic Pump Flow 23.8 gpm (15.3 + 8.5, computed) 24.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 26 gpm Not Published No. of Standard Remote Valves 2 2 (rear, Dual SCV) No. of Optional Remote Valves 3 Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity 52.8 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity Not Published OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity Not Published 3.4 gal Transmission / Hydraulic System Capacity Not Published 10.4 gal Front Axle Fluid Capacity Not Published Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional PTO Rear 540 / 540E / 1000 rpm 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category 2 (convertible to 1) Hitch Lift Capacity 9,480 lb 5,305 lb standard; 6,114 lb optional Hitch Lift Capacity (at 24”) 7,500 lb 5,159 lb standard; 5,954 lb optional Lift Control Type Not Published Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type 12 x 12: 2-range power shuttle with electrohydraulic shuttle lever; Dyna-4: semi-powershift PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12 x 12: 12F/12R; Dyna-4: 16F/16R 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Multidisk wet clutch with electrohydraulic power shuttle lever Wet Differential Lock & Limited Slip Options Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame Steering Power steering Not Published Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Not Published Seat Suspension & Adjustability ROPS: mechanical spring suspension with armrests; Cab: air-ride swivel seat OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb Front Axle Type Heavy-duty 4WD front axle MFWD Front Axle Rating Not Published 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 165.6 in 149.5 in Overall Width Dyna-4 cab: 74.9 in; 12 x 12 cab: 79.8 in Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 95.7 in 92.5 in Ground Clearance 20.3 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 105.7 in 102.9 in ▶ WeightTractor Weight (Base) ROPS: 9,195 lb; Cab: 10,011 lb 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear Not Published 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model Not Published 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height Not Published 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) Not Published 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force Not Published 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)
